Page 18: Sleeve hardware

background image

—18—

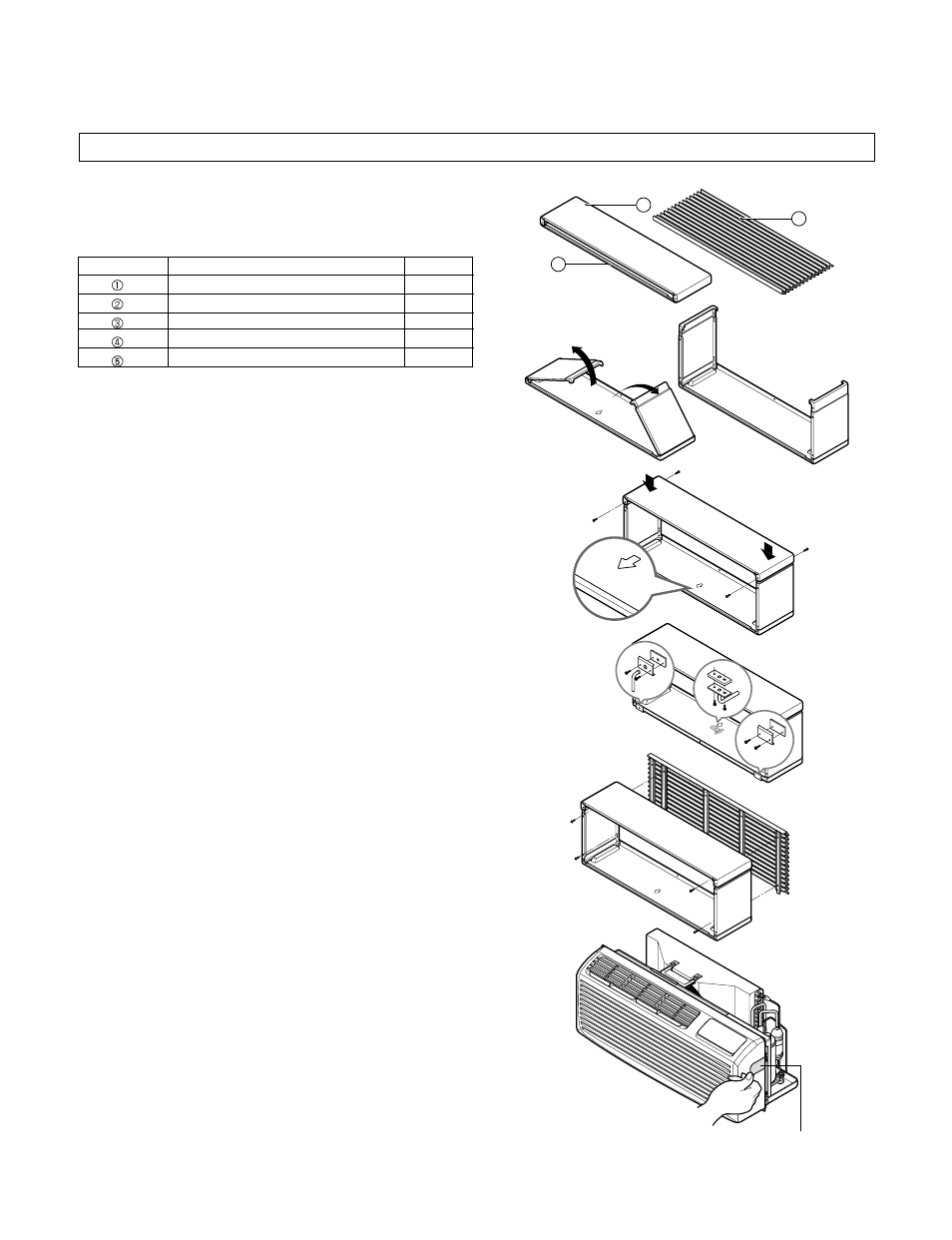

3.2.1 PREPARATION OF SLEEVE

ASSEMBLE THE WALL SLEEVE
• Raise the sleeve side panels to upright position as shown on

the right.

• Place sleeve upper on top of side panels.
• Fasten the four screws as shown on the right.

• Assemble drain kit.
• Fasten this assembly to the each side of the wall sleeve as

shown on the right.

• Assemble the outdoor grille and fasten the 4 screws as

shown on the right.

3.2.2 PREPARATION OF THE FRONT GRILLE

Carefully remove shipping tape, if there is any, from the front
grille.

SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL

IN

DO

OR

IN

DO

OR

INDOOR

IN

DO

OR

IN

DO

OR

1

4

1

2

1

1

Shipping tape

IN

DO

OR

3.2 SUGGESTED TOOL REQUIREMENTS

SLEEVE HARDWARE

NUMBER

NAME OF PARTS

Q’TY

SLEEVE LOWER

1

SLEEVE UPPER

1

SCREW

4

OUTDOOR GRILLE

1

DRAIN KIT

1
