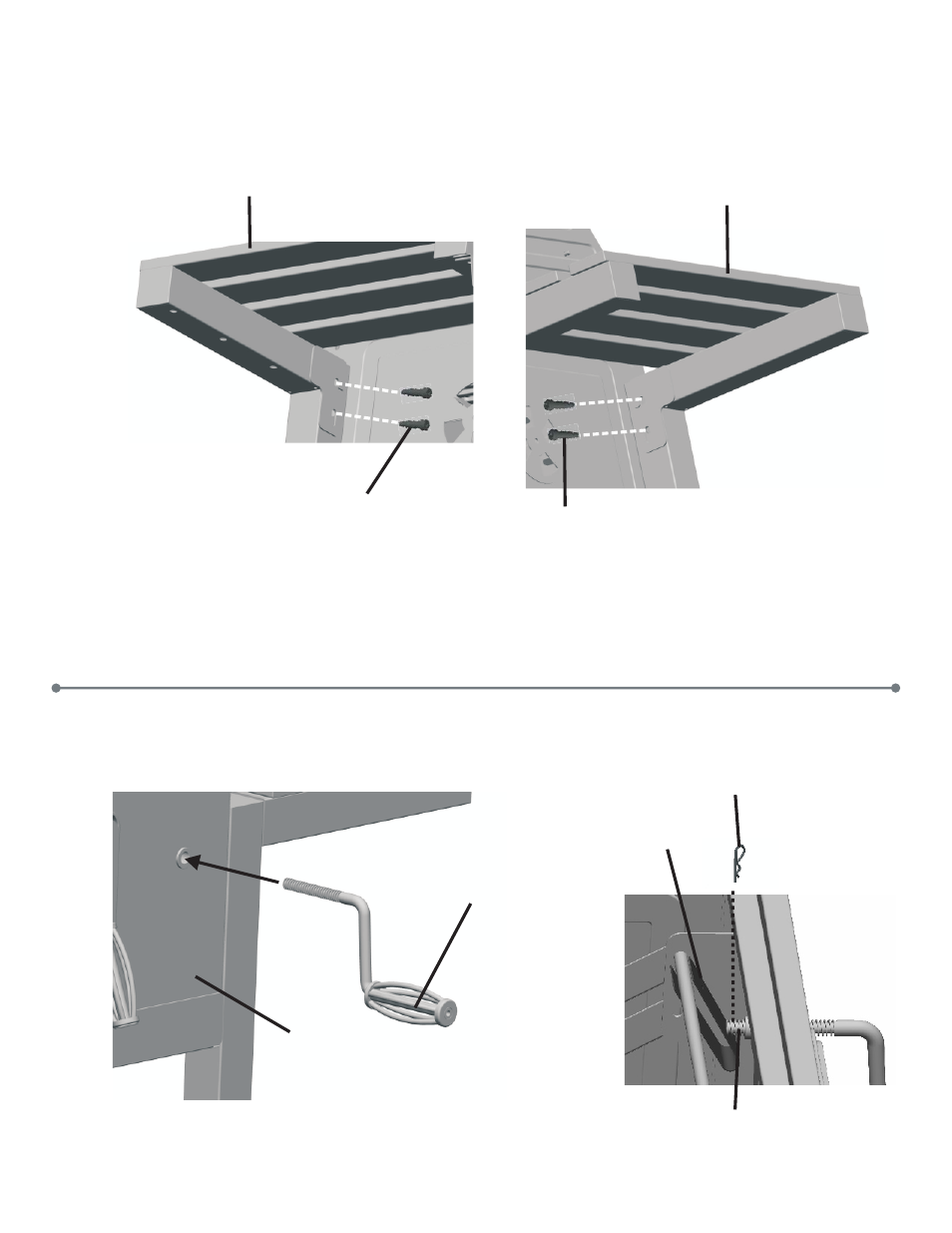

Attach other Side Shelf to Right Legs using (4) 1/4-20x5/8” Shoulder Screws.
Side Shelf
Page 15
1/4-20x5/8” Shoulder Screw
1/4-20x5/8” Shoulder Screw
Side Shelf
Screw Adjuster Crank through front of Firebox. Rotate Adjuster Crank clockwise until Adjuster Crank
engages Crank Lever. Insert Hair Pin Clip into Adjuster Crank Shaft.
Adjuster Crank
Front of
Grill Body
Hair Pin Clip
Adjuster Crank Shaft
Crank Lever
