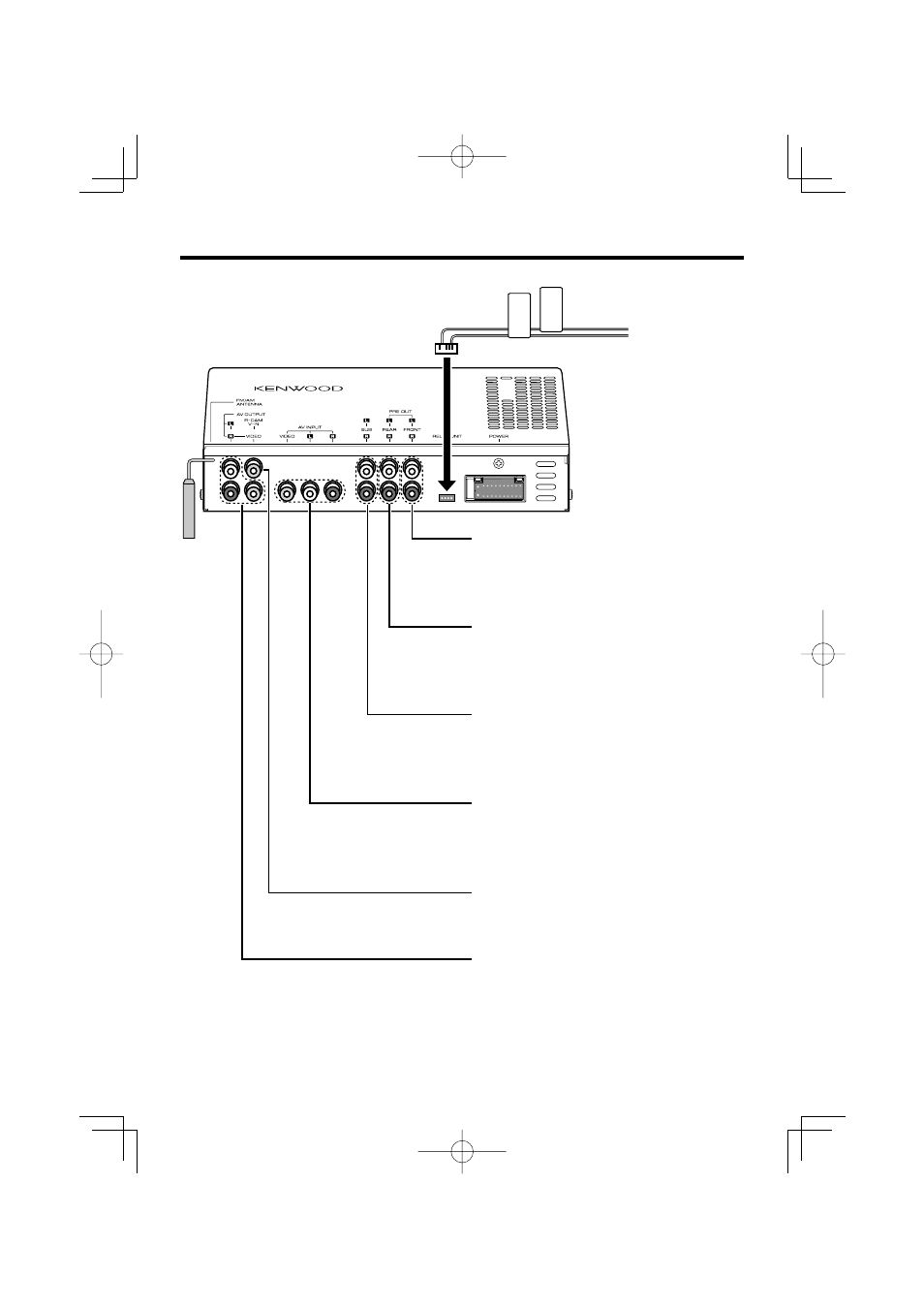

System Connection
RELA
Y
1
RELA
Y 2
■ Front Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear Preout
• Audio left output (White)
• Audio right output (Red)
■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
■ Rear View Camera Input
• Visual input (Yellow)
■ Audio/Visual Output
• Visual output (Yellow)
• Audio left output (White)
• Audio right output (Red)
■ Audio/Visual input
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red)
Receiver unit
To Relay Box
Accessory 4
