Visionary Electriscreen: Owner’s
Follow this procedure to mount the screen assembly in the case. Be sure
you have performed the appropriate electrical hookup first.
1. Raise the screen assembly to the previously mounted case.
2. Insert the interlocking modular connector from the screen
assembly to the corresponding connector in the case. Refer to
Figure 9.
3. Make sure the cable and modular connectors stay inside the
electrical box when the screen assembly is inserted into the case.
4. Using the wrench provided, secure the screen assembly to the
case using bolts inside each end of the screen slot. As you
tighten the bolts, the screen assembly/ceiling cover will move
forward and lock into place on the case. Refer to Figure 2.
S
TEP
3. I
NSTALLING THE
S
CREEN
A
SSEMBLY
I
NTO THE
C
ASE

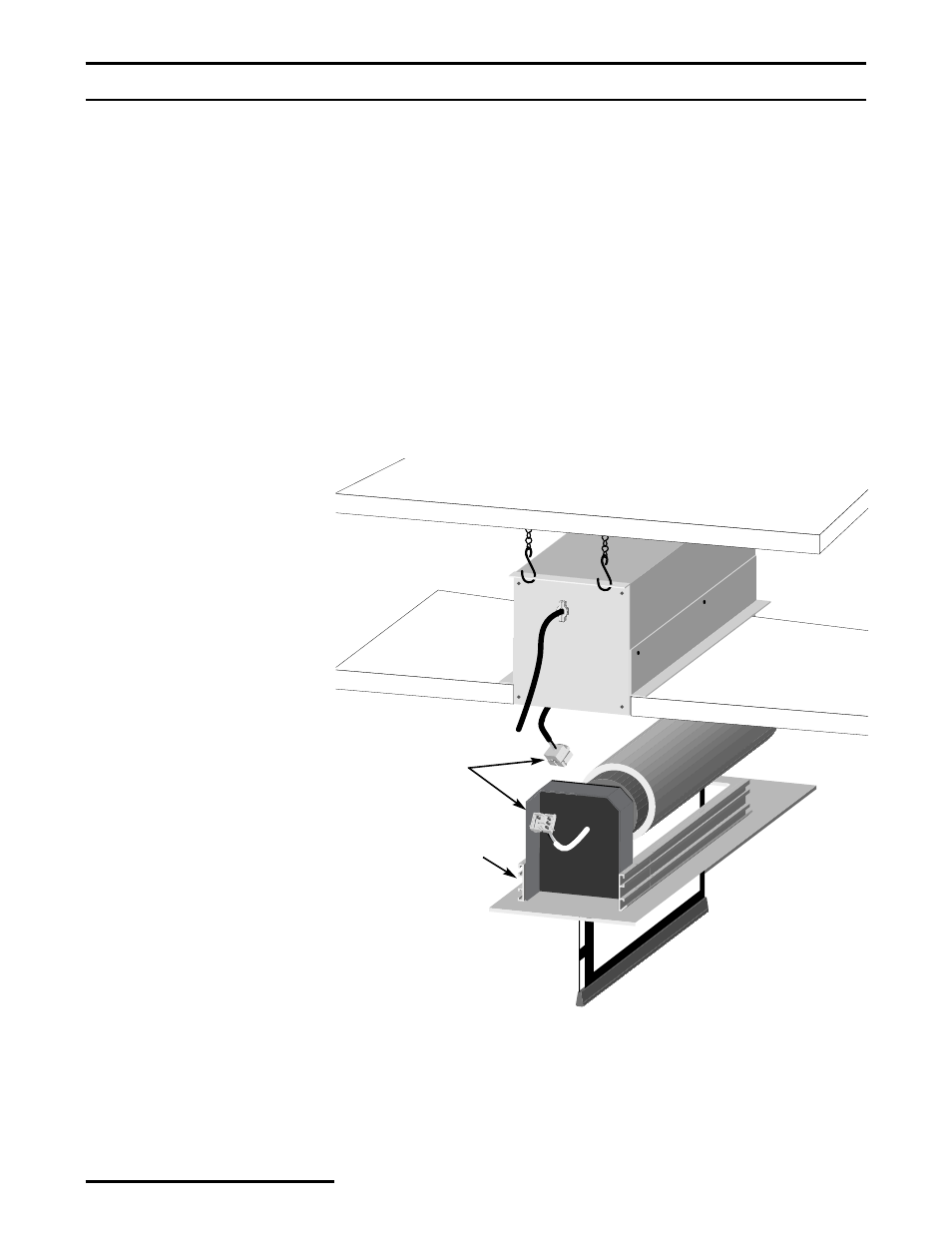

Figure 9: Installing screen assembly
Case
Screen Assembly/
Ceiling Cover
Modular
Connectors
