-47-
Df[\cD('00D]^J`eZ\('&'.
G8
I
K
J
Jk\X[pI\jkXe[=fccfnI\jk
501
502
503
504
505
506
507 508
509
511
512
513
514
515
516
517
518
510

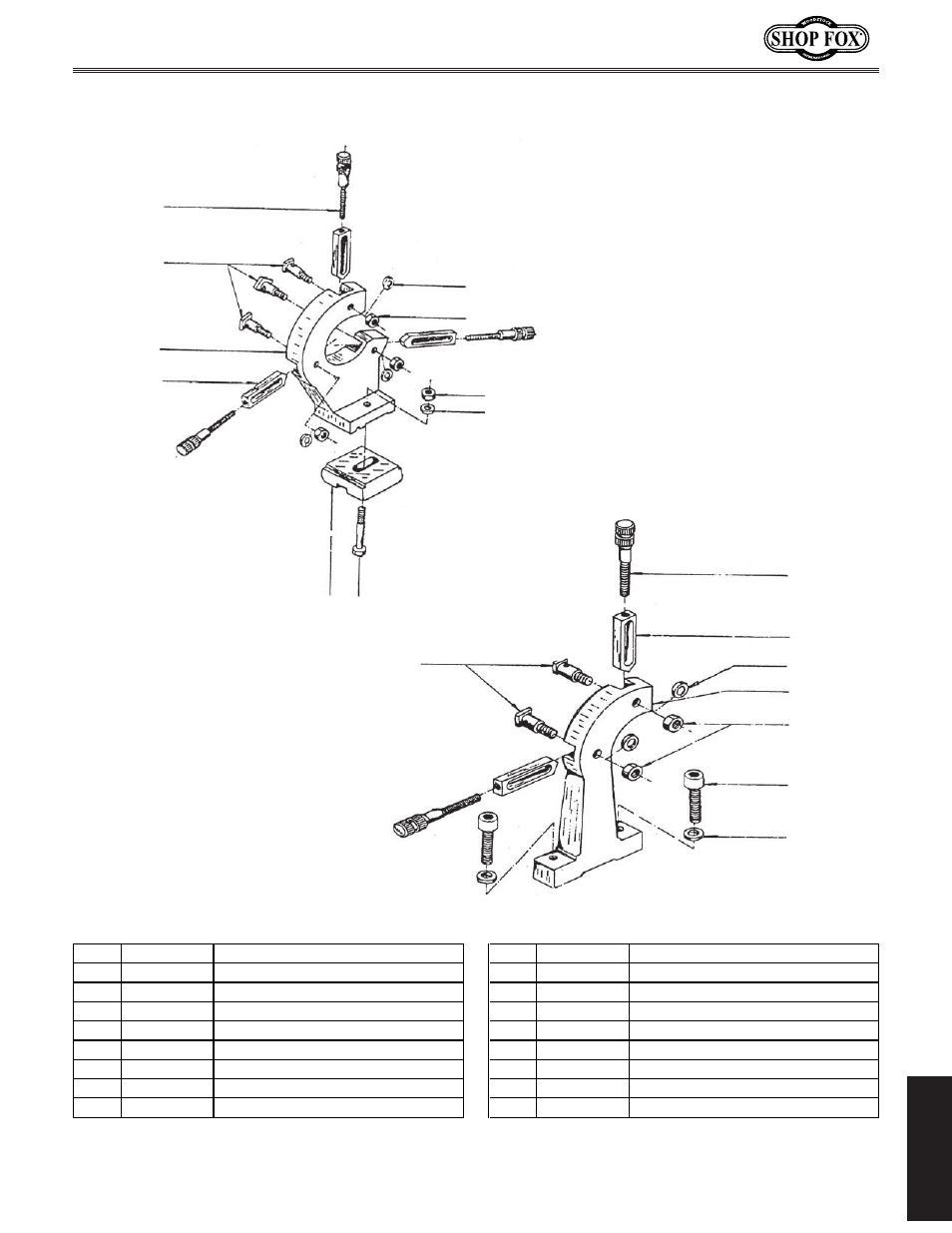

REF PART # DESCRIPTION REF PART # DESCRIPTION
501 XM1099501 STEADY REST CASTING 510 XPN02M HEX NUT M10-1.5
502 XM1099502 FINGER 511 XM1099511 FOLLOW REST CASTING
503 XM1099503 T-BOLT M6-1 512 XM1099512 FINGER
504 XPLW03M LOCK WASHER 6MM 513 XM1099503 T-BOLT M6-1
505 XPN01M HEX NUT M6-1 514 XM1099514 ADJUSTING SCREW
506 XM1099506 ADJUSTING SCREW 515 XPN01M HEX NUT M6-1
507 XM1099507 CLAMPING PLATE 516 XPLW03M LOCK WASHER 6MM
508 XPB125M HEX BOLT M12-1.75 X 65 517 XPCAP40M CAP SCREW M8-1.25 X 35
509 XPW04M FLAT WASHER 10MM 518 XPW01M FLAT WASHER 8MM
