Model D3274 Gravity Feed Spray Gun w/Regulator
-6-
• Fluid Control: Controls the volume of
material that travels through the fluid
tip by adjusting how far the trigger
can be pulled back.
• Pattern Control: Adjusts the spray
pattern from a round pattern to a
wide fan.
• Air Flow Control: Adjusts the fluid
pressure inside the spray gun.
• Atomizing Cap : Adjusts the spray
pattern from vertical to horizontal.
• Trigger : Two stage trigger. Stage
one only releases compressed air for
blowing off the work piece. Stage two
sprays material.
• Material Cup: Holds the paint to be
sprayed.
• Regulator/Gauge: Regulates inlet air
pressure to the spray gun. It can be
attached directly to the gun for on-
the-spot air adjustments or to the air
source.
Note: DO NOT attach the spray gun or
regulator control to an unregulated
air source that exceeds 120 PSI.

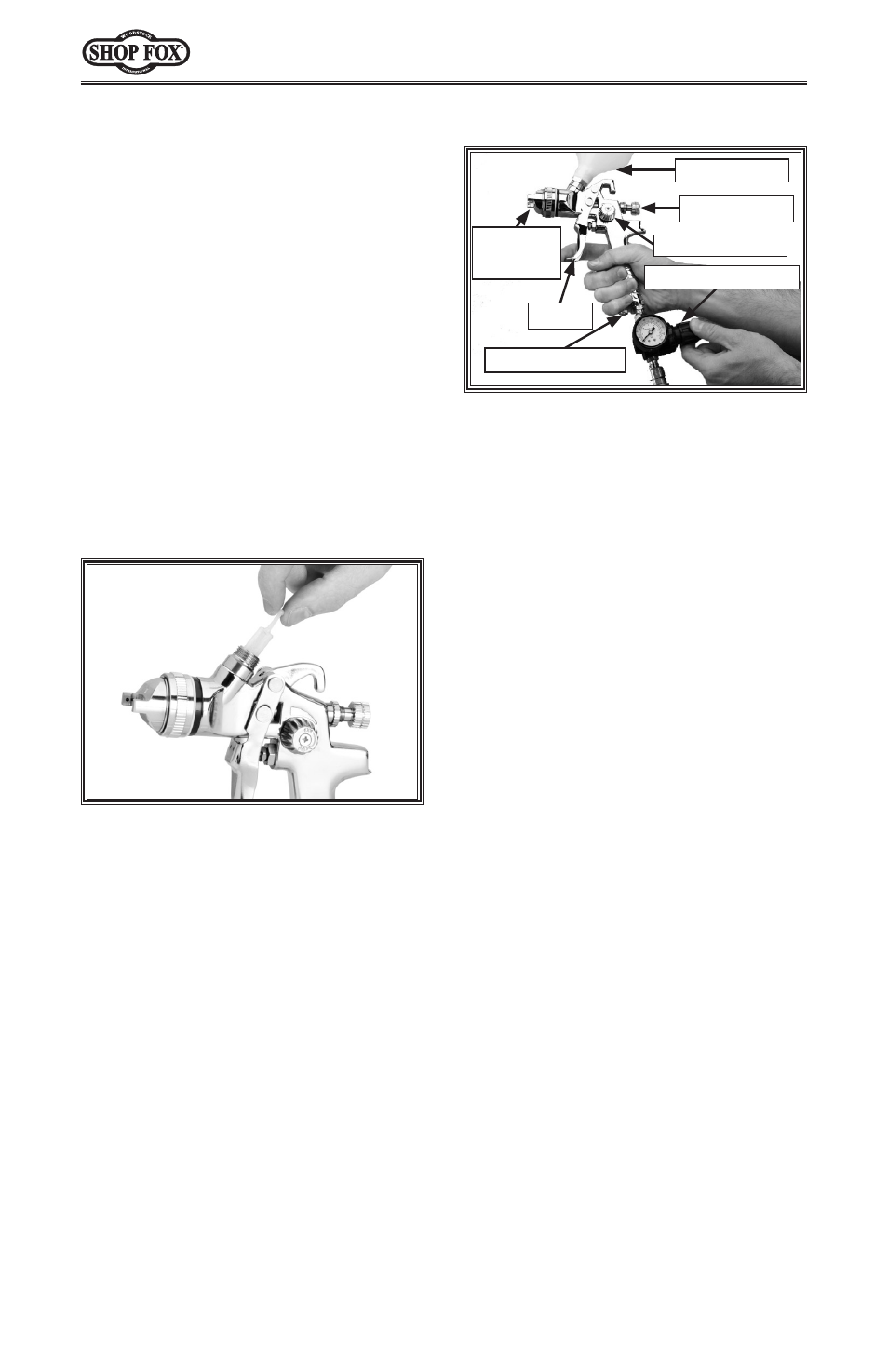

Figure 3. Controls.
Controls
Fluid Control
Pattern Control
Atomizing
Cap
Trigger
Air Flow Control
Regulator Control
Assembly
2. Screw the cup onto the top of the
body.
3. Attach the regulator to the bottom of
the spray gun.
4. Attach the air hose to the spray gun
regulator with a 1 ⁄
4
" NPT quick con-
nect fitting (not included).
5. Attach the spray gun to an air supply
regulated between 30 and 50 PSI.
Note: For the best results, use a hose
that will be dedicated for spray use
only. Do not use a hose that has been
used with an in-line oiler or other
possible contaminant.
Figure 2. Installing filter.
1. Insert the filter into the gun body
with the knob pointing outward (see
Figure 2).
Material Cup
Specifications
Operating Air Pressure ............ 30–50 PSI
Maximum Air Pressure ................. 70 PSI
Material Cup Capacity ................ 600 CC
Air Consumption ................. 4.2–7.1CFM
Maximum Fluid Pressure .............. 10 PSI
Cup Material ............................Plastic
Body Material ................Aluminum Alloy
Maximum Pattern Width .............250mm
Water-Based Material Compatible ......Yes
Weight ................................. 1.5 lbs.
