O P E R AT I O N
PAG E 6 VG A 4 4 I N S TA L L AT I O N & O P E R AT I O N M A N UA L
Before making any connections to the VGA44, observe the
following:
> Before making any connections to the VGA44, observe the following:
> Ensure the mains voltage supply matches the label on the supplied
plug-pack (+/- 10%)
> Ensure that the power switch is OFF
> Ensure that all system grounds (earth) are connected to a common point.
Avoid powering equipment within a system from multiple power sources that
may be separated by large distances
OPERATION
> Connect all audio video sources and destination equipment
> Power up all source and destination audio-visual sources
> Power up the VGA44 VGA matrix switcher
> For each destination output select the appropriate input source by using
the front panel UP and DOWN select button, the supplied IR remote control,
or through the RS232 serial communications port

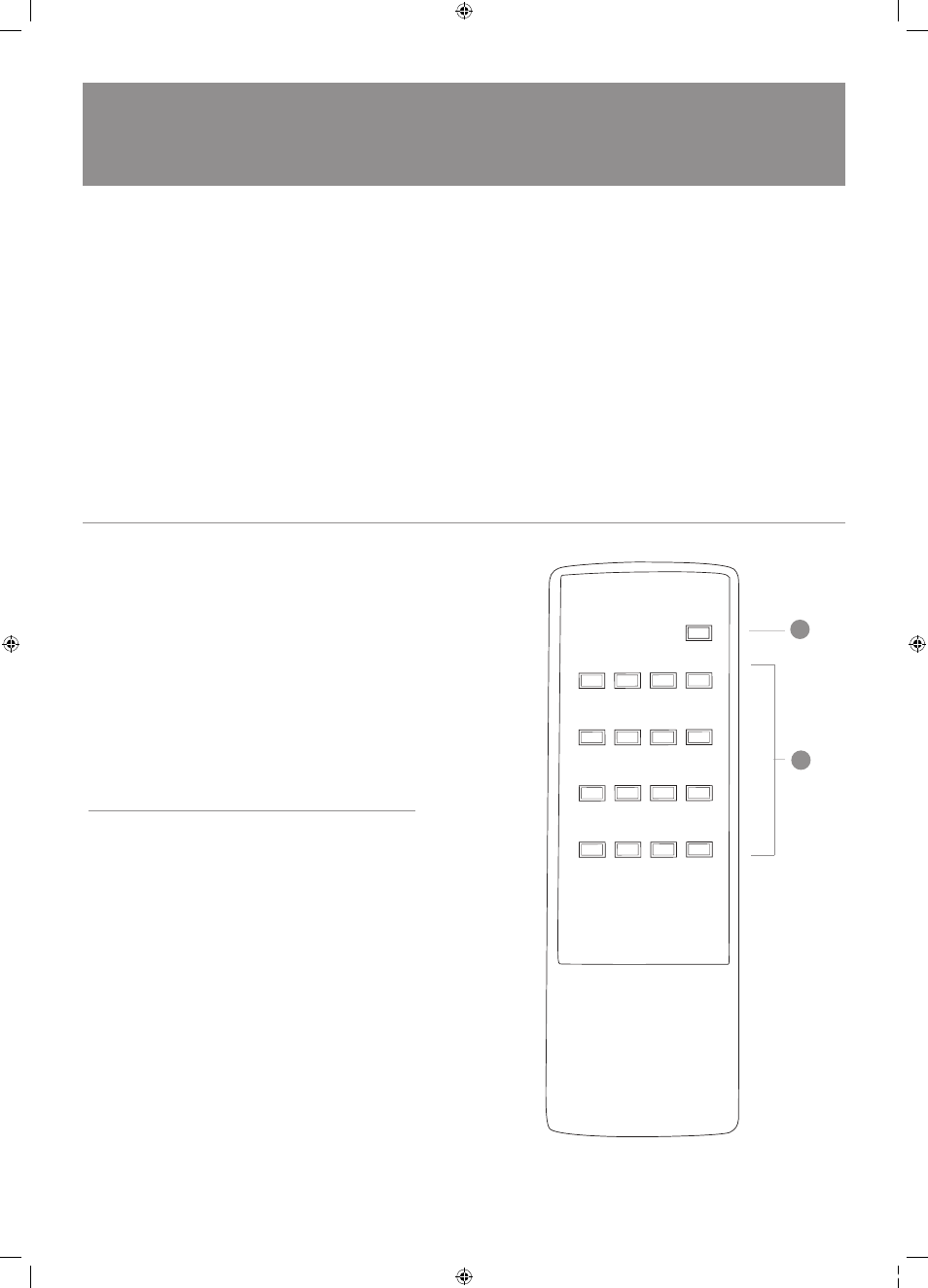

REMOTE CONTROL
The AMAV VGA44 matrix switcher ships with a remote control. The
remote control has the following functionality:
i) Source Select Buttons
Four separate input assignment buttons are provided for each of the
four VGA outputs. The last selected input source will be routed to
the destination output. Input sources may be assigned to multiple
destination outputs
ii) Power Button
Toggles the unit into, and out of, standby mode. In standby mode the
matrix switcher will stop video routing. Standby mode is indicated by
the illumination of the front panel power LED only.
POWER
INPUT-1
Output - 1
Output - 2
Output - 3
Output - 4
INPUT-2 INPUT-3 INPUT-4
INPUT-1 INPUT-2 INPUT-3 INPUT-4
INPUT-1 INPUT-2 INPUT-3 INPUT-4
INPUT-1 INPUT-2 INPUT-3 INPUT-4
VGA44
4x4 VGA Matrix Switcher
i
i i
