Samsung SMO-210DN User Manual

Page 28

English-2-14

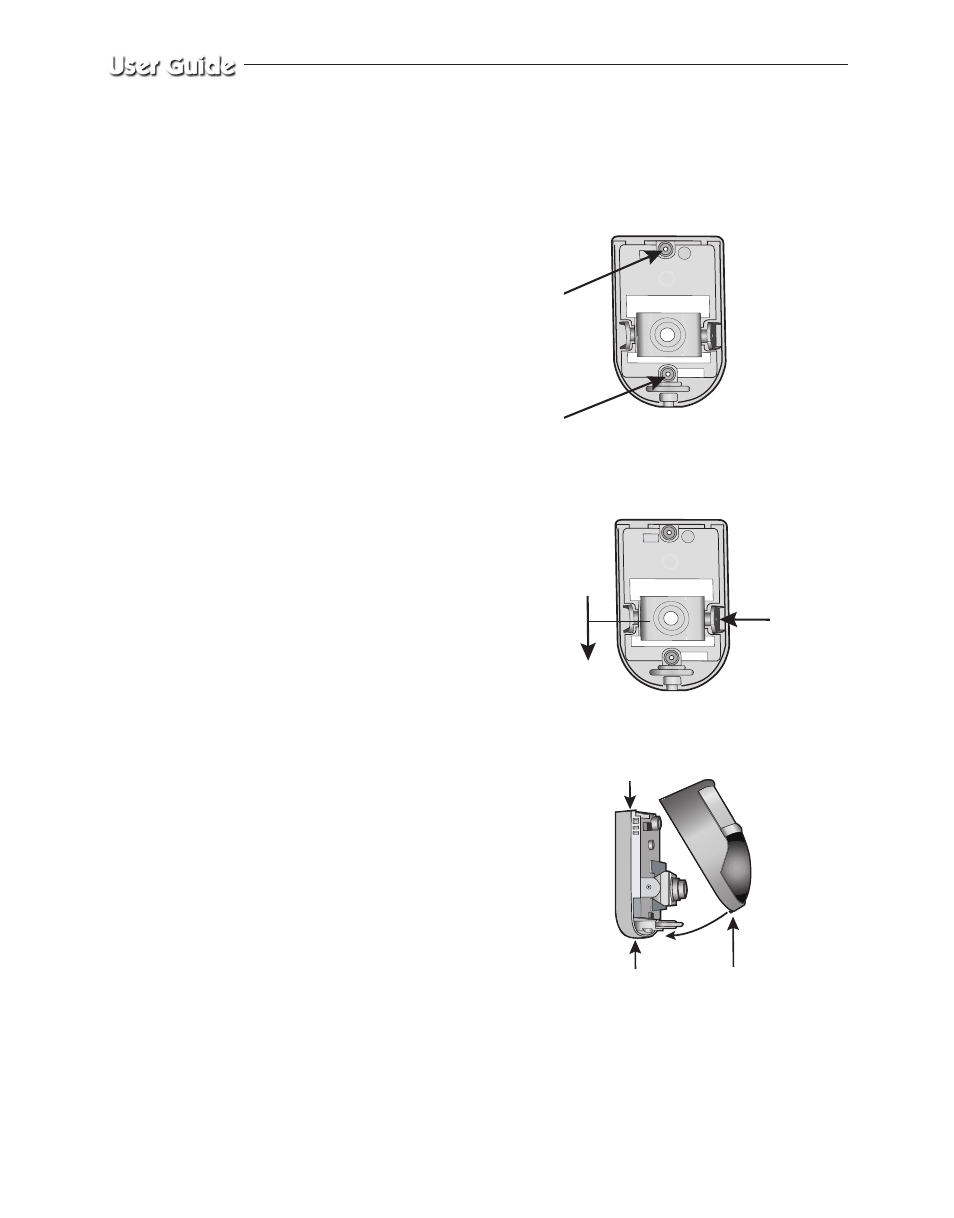

5. Align the two holes of the rear case

to the holes of the plastic anchors,and
then fasten the screw tappings
(BH M3 X 30).

6. Adjust the direction of the lens.

1) Use a the philips head screwdriver

to turn the screw (indicated by

the arrow in the illustration)
counterclockwise slightly.The lens
body will move.

2) Tilt the lens body down about

10° from the horizontal, and
then turn the screw clockwise

to fasten it.

7. Assemble the assy-case front onto

the case rear as shown in the
illustration. Fasten the assy-case front
to the case-rear with the
screw (BH M2.6) you removed
earlier.

SCREW-

TAPPING

G(BH M3 x 30)

SCREW-TAPPING

G(BH M3 x 30)

Screw

(HB M4 x L8)

CASE-REAR

Screw (BH M2.6)

ASSY-CASE
FRONT
