6
* Contact your cable service provider for more information on the availability of these features.
14 AC Power
Input
Connect the power cord to deliver power to the set-top.
13 AC Switched
Outlet
Connect the AC power cord from another device, such as a TV.
12 RF Bypass* Connect an optional RF Bypass module to the set-top. This module allows
viewing one channel while recording another. This connection does not apply to
the 3250 HD loop-through model.
11 Cable In Connect the coaxial cable that delivers the signal from your cable service provider.
10 Audio Out Connect RCA cables to send analog audio signals (left and right) to a stereo
receiver or an HDTV.
9 Cable Out Connect a coaxial cable to Cable Out to send analog audio and video signals to
a TV or VCR. These signals are SDTV video with mono audio. This connection
does not apply to the 3250HD loop-through model.
8 Video &
Audio Out Connect an RCA cable to Video Out and Left/Right Audio Out to send analog video
and audio signals to a standard TV or VCR. This signal is SDTV.
7 Digital Audio
Out Connect an RCA cable to send a digital audio signal to a surround-sound
receiver or other digital audio device.
6 YPbPr Out Connect the HDTV (Y, Pb, Pr) component output ports to the HDTV input on your
HDTV. You must use these ports to provide HDTV signals to your HDTV.
5 S-Video Out Connect an S-Video cable to send an S-Video signal to your TV or VCR. This
signal is standard definition but higher quality than other SDTV connections.
3 DVI* Connect to the DVI (Digital Visual Interface) input port on your HDTV. This port
provides digital video signals to the HDTV.
2 Optical Audio
Out* Connect an optical cable to send a digital audio signal to a surround-sound
receiver or other digital audio device. This connector may not be available on all
Explorer 3250HD models.
1 1394* Connect to optional 1394-equipped (FireWire) devices. This connector is
reserved for future use and may not be available on all Explorer 3250HD
models.

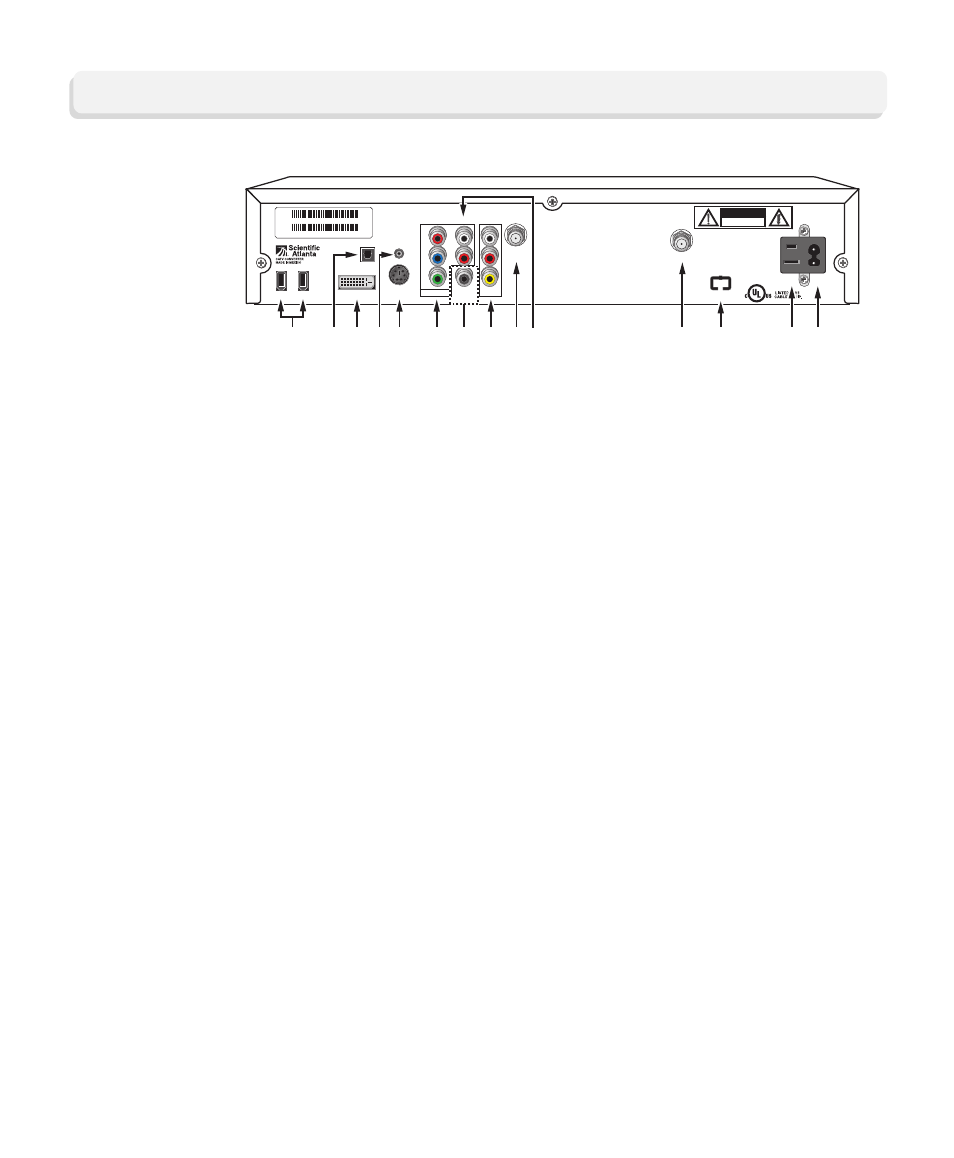

Back Panel Overview
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
S-VIDEO
OUT
AVIS: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CABLE IN
BYPASS
CABLE
OUT
IR
DVI 1394 1394
AUDIO OUT
R
L Pr
Pb
Y 120 VAC
60HZ 400W
120 VAC
60HZ 400W
VIDEO
OUT
DIGITAL
AUDIO
OUT
AUDIO
OUT
OPTICAL
HDTV
0003B4287797
SABDQXTL N0006246618
Explorer 3250HD
11 12 13 14 3 7 910 2 1 5 6 8 4
T10997
3250HD Standard Model
4 IR Port* Connect the IR Blaster cable to use with the optional VCR Commander™ service.
