12 GB
G
e
tting
Star
te
d –
B
A
SIC –
4

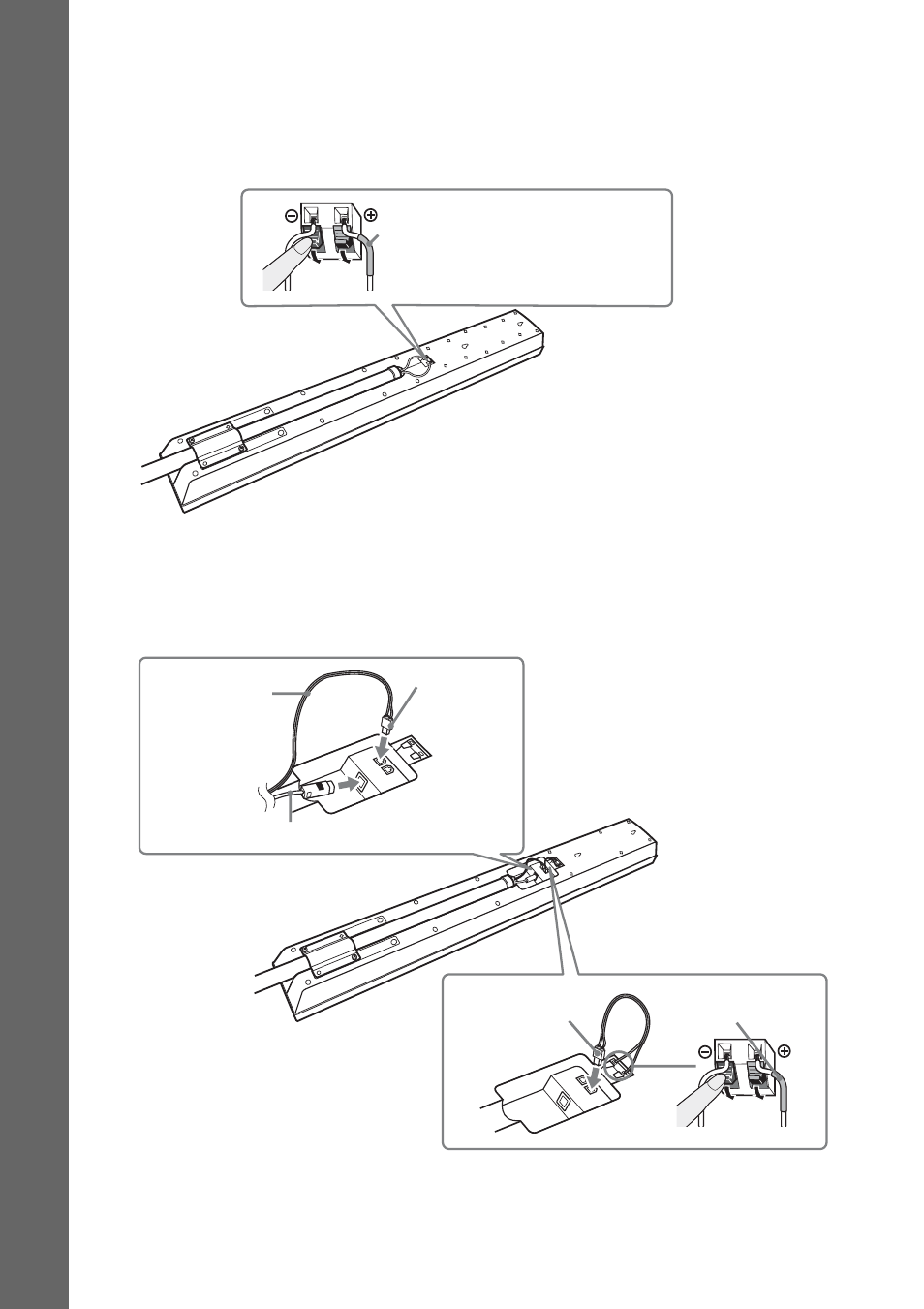

Connect the speaker cords (and the speaker system cord) to the speaker.
When connecting the speaker cords, be sure to match the speaker cord to the appropriate terminal
on the components: 3 to 3, and # to #.
For the front speakers and the surround speaker (R)
For the surround speaker (L)
Use the speaker system cord of the AC adaptor (AC-SD1) only when connecting to the surround
speaker SA-TS76W.
Rear of the speaker
(e.g., front speaker)
Color tube
Front speaker (L): White
Front speaker (R): Red
Surround speaker (R): Gray
Rear of the speaker
Speaker cord
Speaker system cord of the AC adaptor (AC-SD1)
Connector
(gray)
Connector
(blue)
Color tube
(blue)
SA-TS76W
