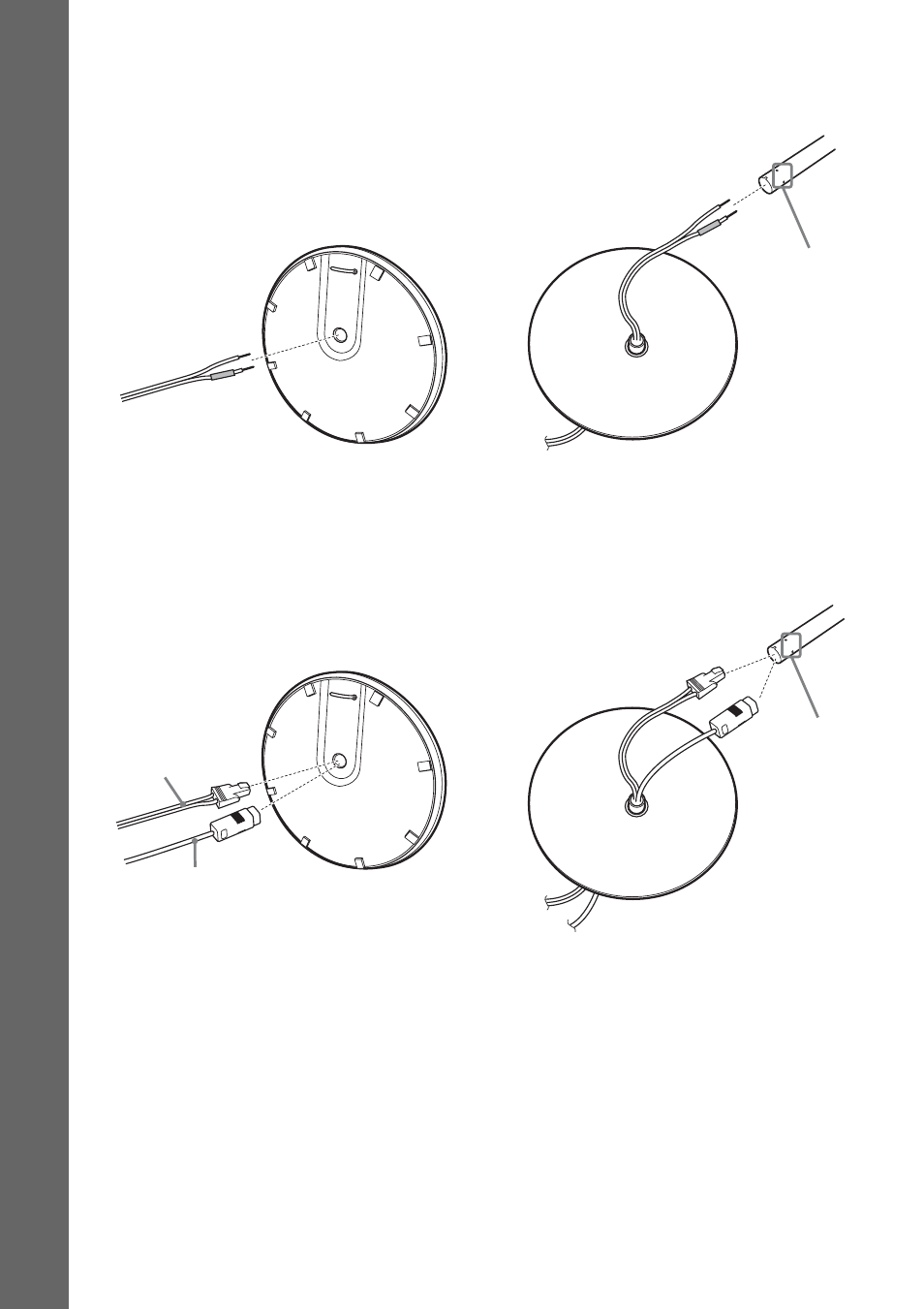

For the front speakers and the surround speaker (R)
Be careful with the orientation of the post. Thread the speaker cord (and the speaker system cord)
into the end of the post that has 2 holes.
For the surround speaker (L)
Be careful with the orientation of the post. Thread the speaker cord that should be connected to the
surround speaker (R) and the speaker system cord of the AC adaptor into the end of the post that
has 2 holes.
Speaker cord
Bottom of the base
,
Post
2 holes
Top of the base
Speaker cord
(gray connector)
Bottom of the base
,
Post
2 holes
Top of the base
Speaker system cord of the AC adaptor (AC-SD1)
