S-Video
Cable
LINE IN
S-VIDEO

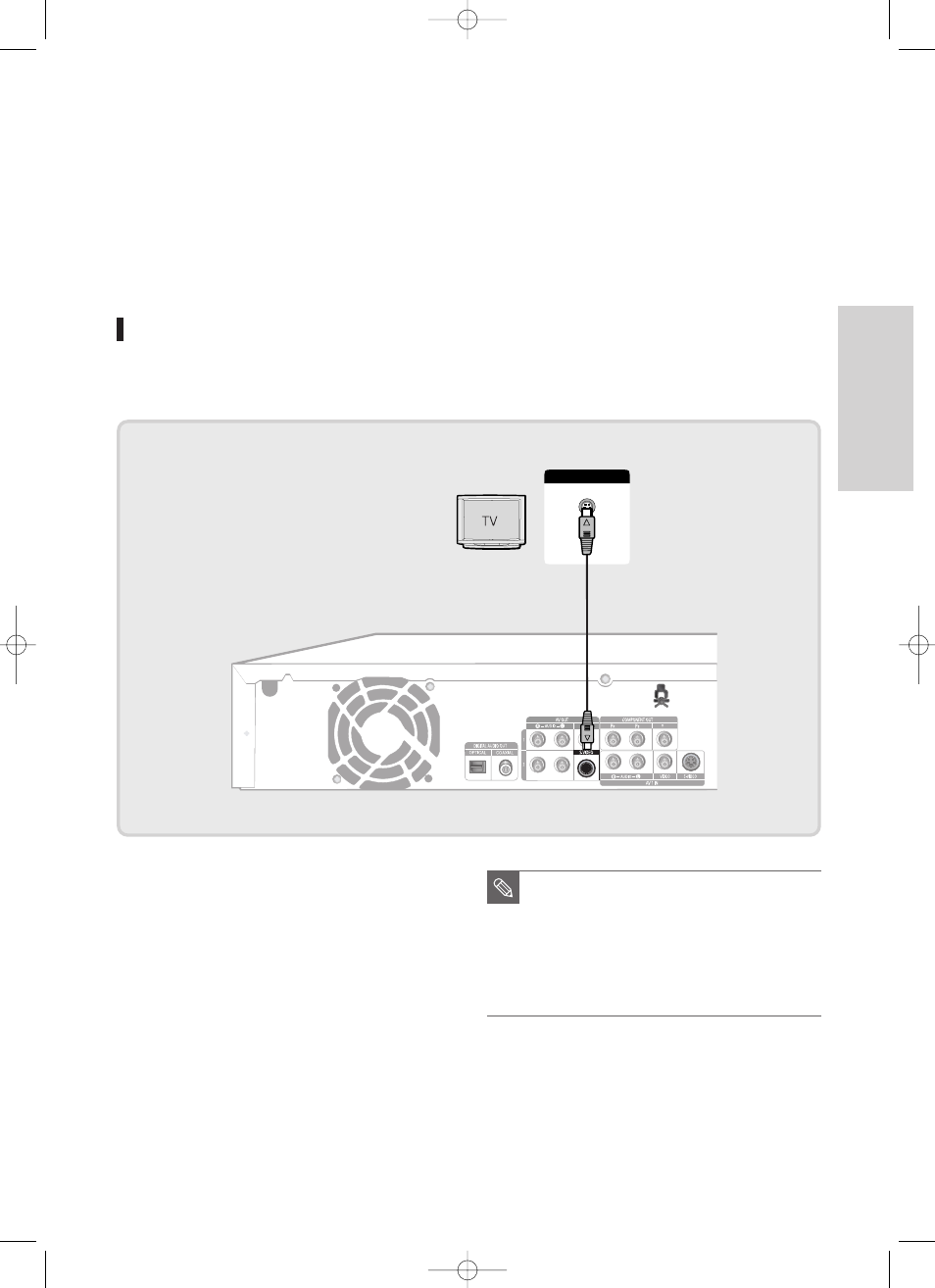

Connecting to an S-Video input jack
Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on the HDD & DVD RECORDER
and S-VIDEO IN jack on your TV (or AV amplifier).
• You will enjoy high quality images. S-Video separates
the picture element into black and white (Y) and color
(C) signals to present clearer images than regular
video input mode.
• Connect audio cables(white and red) between the
AUDIO OUT jacks on the HDD & DVD RECORDER
and AUDIO IN jacks on your TV(or AV amplifier).
(See pages 23 ~ 25)
■ S-Video and Component video outputs are
available only if your TV supports S-Video
input or Component video input,
respectively. If S-Video or Component
video output does not work, check the TV
connections and the TV input selection
settings.
NOTE
