SEAL 44/62 User Manual
Page 11
Unpacking and Installation
9
E
n
g
lis
h
3.5 Setting up the laminator in 4 steps.
1. Remove the cardboard box and the plastic bag as described on the outside of the box.
2. Pick the box behind the laminator which contains the stand parts.

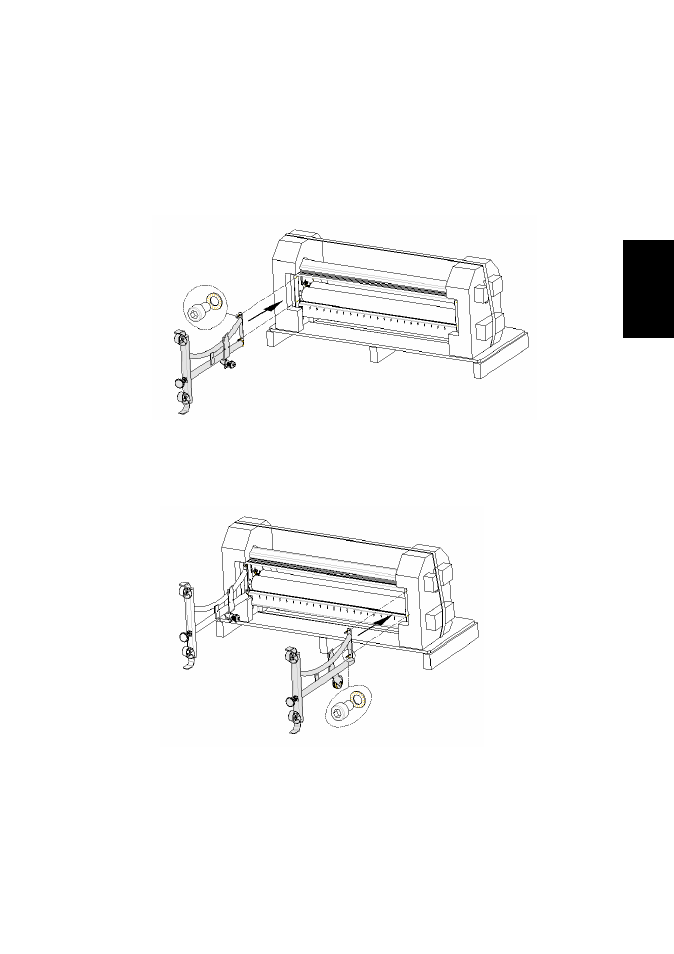

3. Mount the LH-side part of the stand as shown in next figure. (The LH-part is
recognizable by a spring utility on the bracket.) Use two serrated washers and two
socket screws M6x16 (see fig.2)
Do not tighten the screws completely.
Figure 2
4. Mount the RH-part of the stand onto the laminator as shown in figure 3. Use the
serrated washers and the socket screws M6x16.
Do not tighten these screws completely.
Figure 3
