Ice-O-Matic Hotel Dispenser CD300 - Manual (Page 7)

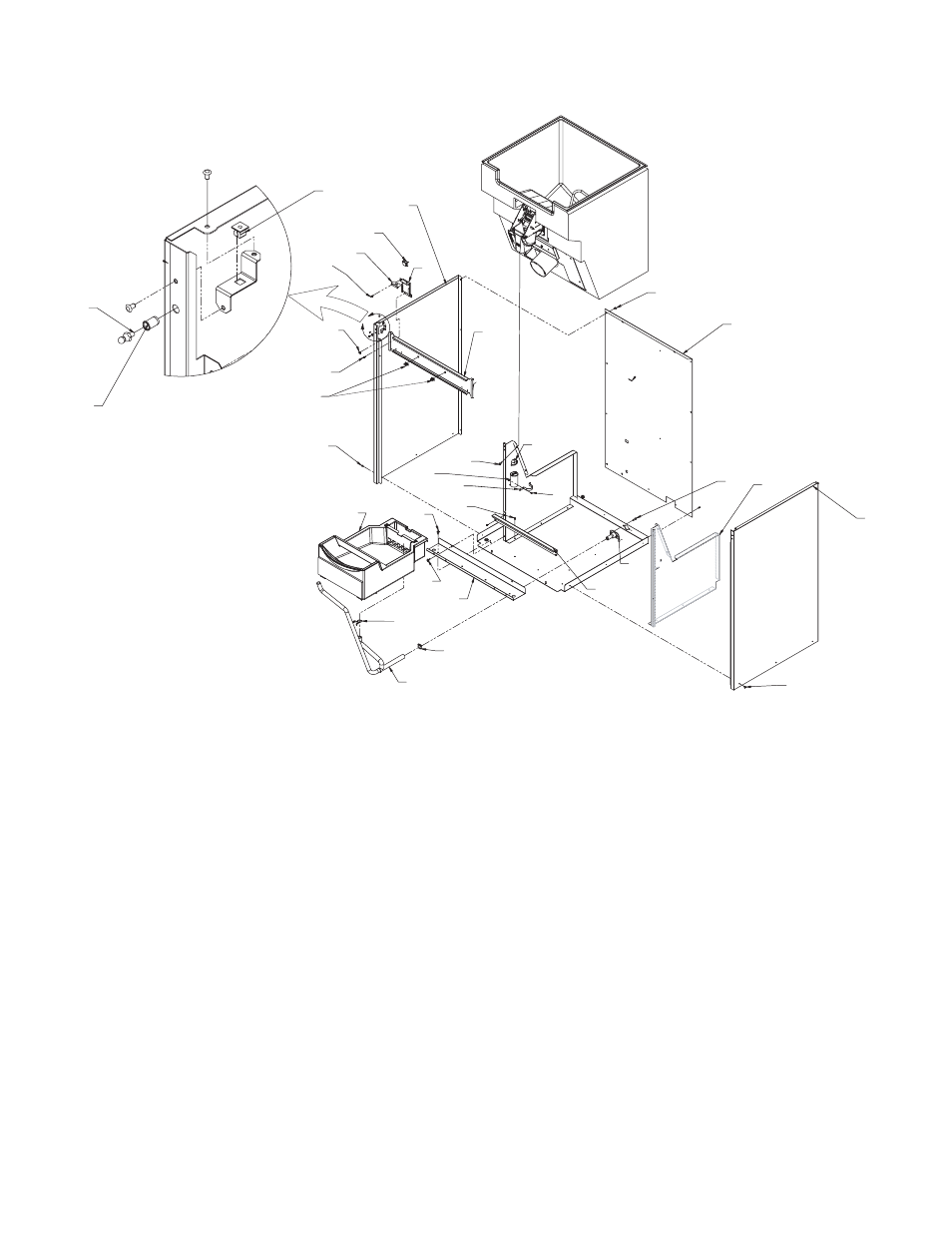

Side, Back and Interior Panels
Item Part
Number Number Description
1
1011339-70 Screw
2
1011351-95 CD40030 back panel
1011351-121 CD40022 back panel
3 1011351-94 Right side panel,
includes mounting hardware
4
1011351-30 Screw
5
1011351-97 Bin support, right
1011351-96 Bin support, left
6 1011351-06 Drain fitting
7
1011351-105 Catch pan support
8
1011351-108 CD40030 base stiffener
1011351-109 CD40022 base stiffener
9
1011339-74 Screw
10
1011351-07 Hose clamp
11 1011351-03 Hose clamp
12 1011351-21 Drain hose
13
1011351-87 Drain pan, assembled
14
1011351-04 Wire clamp (coin mech)
15
1011351-113 Switch plate top
15a 1011351-112 Switch plate
16 1011339-84 Switch, interlock
17
1011351-84 Left side panel, includes
mounting hardware
18
1011351-43 Plastic nut
19 1011351-40 Strike (ball stud)
20 1011351-40 Insert
21
1011351-70 Terminal cover
22
1011351-101 CD40030 support brckt
1011351-102 CD40022 support brckt
23
1011351-80 Motor capacitor
24 1011351-83 Strap
CD40022 and CD40030 Service Parts
Page 5
1
2
4 5
3
1
6
7
10
11
12
13
9
8
9
1
1
1
1
1
1
14
15
16
17
18
19
20
9
22
23
24
21
15a
