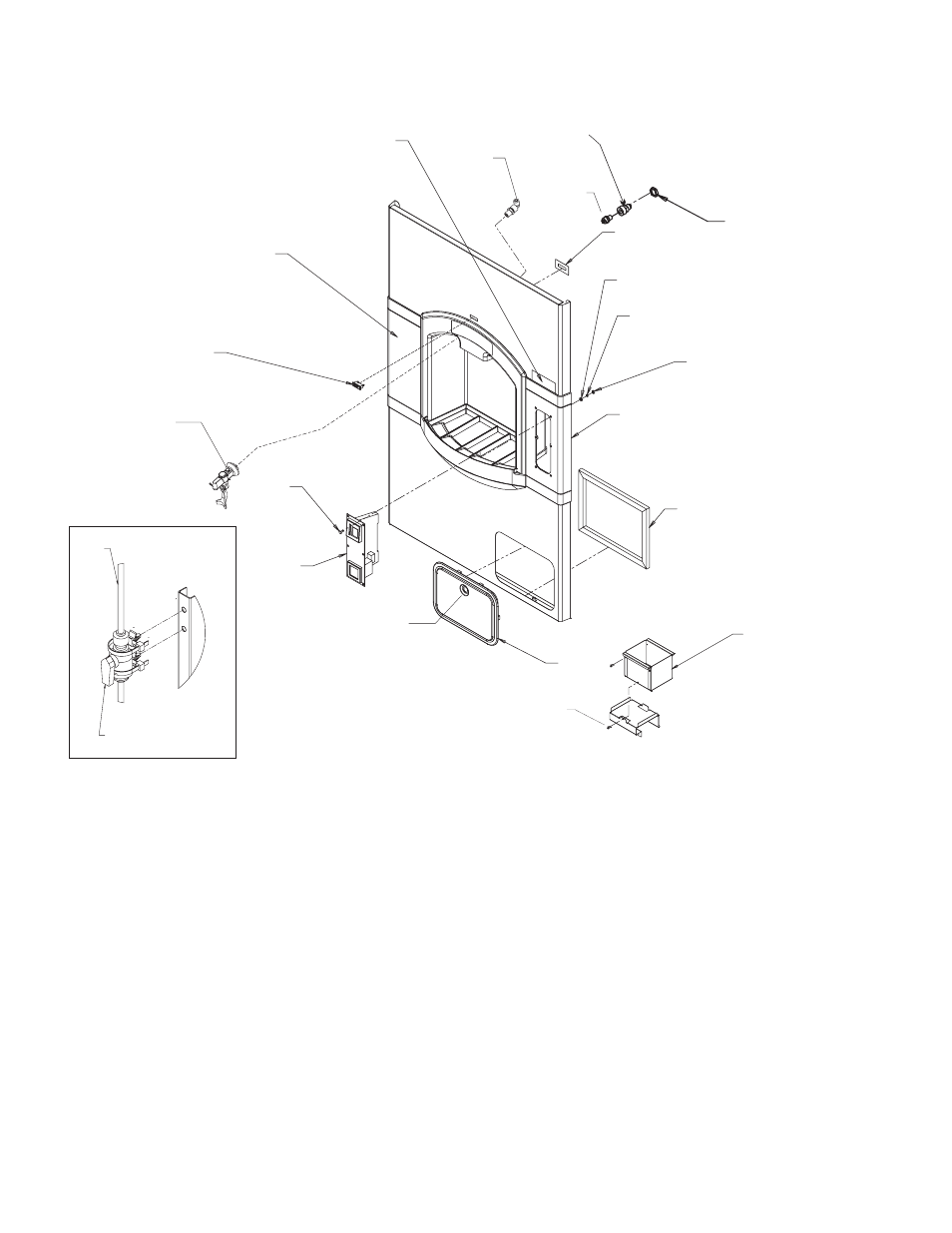

CD40130 and CD40230 Front Panel & Related Parts
Item Part
Number Number Description
1 1011351-74 Water inlet fitting
2 1011351-75 Straight connector
3
1011351-31 Pal nut
4
1011351-77 Male elbow connector
5 1011351-23 Water faucet
6 1011351-71 Tubing, order per ft
7
1011351-78 Shut off valve
8
1011351-119 Indicator light backing
9 1011139-52 Washer for coin mech
10 1011339-65 Lockwasher
11 1011339-50 Hex nut (8-32)
12
1011351-20 Right side flange for coin
mech model
13 1011351-01 Door shim
14 1011351-60 Door and lock
14a
1011351-64 Lock and key
14b
1011351-65 Key
15
1011339-70 Coin box screw
16 1011351-114 Coin box
17 1011351-62 Coin mechanism
1011351-63 Coin switch
18
1011351-61 Mounting screw
19 1011351-68 Ready light
20 1011351-18 CD40030 left side flange
21
1011351-79 Coin mech label
CD40022 and CD40030 Service Parts
Page 4
4
5
1
3
8
9
10
11
12
13
16
15
14
17
18
19
20
21
2
6
7
14a, 14b
