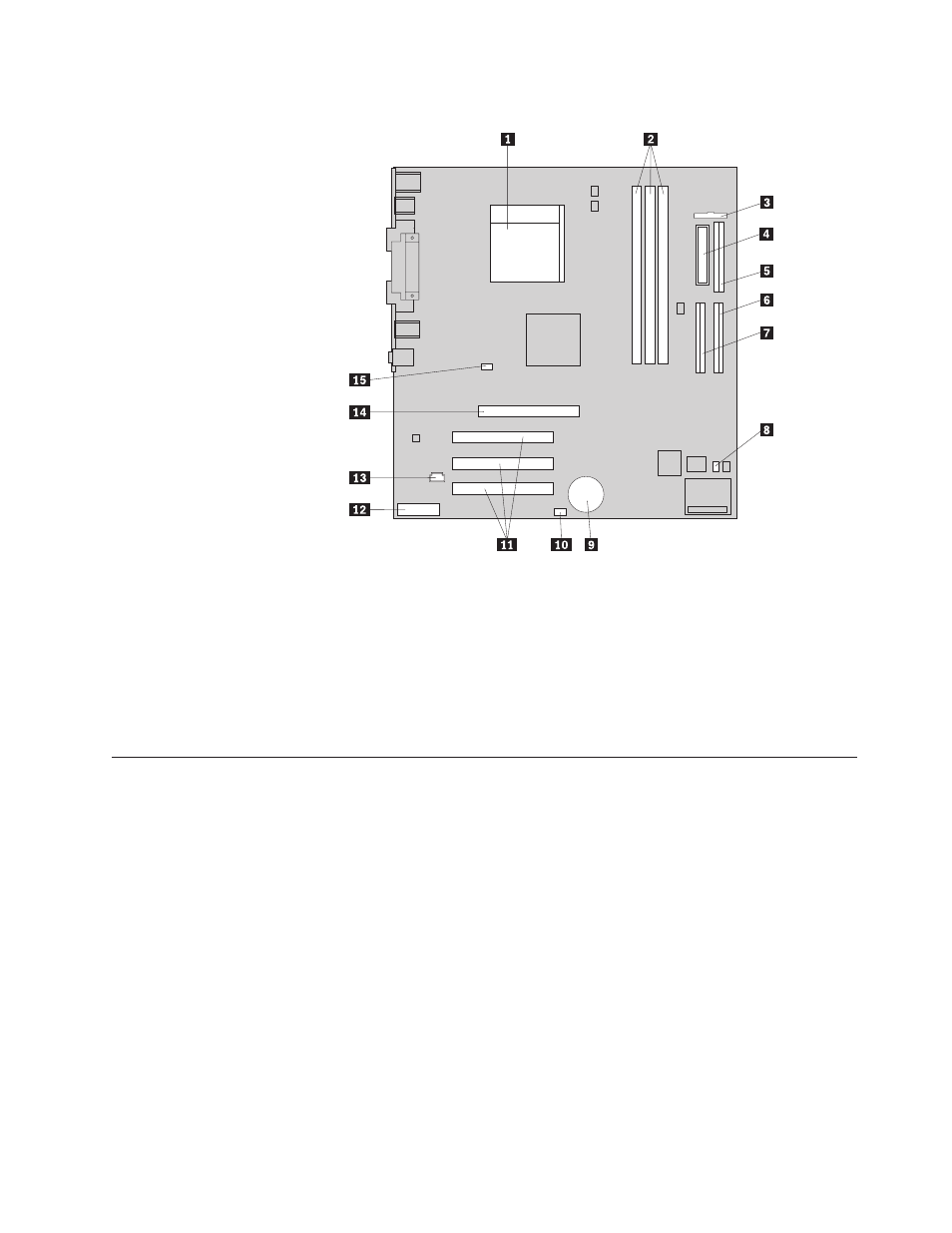

See the following illustration for the location of parts on the system board.
1 Microprocessor 9 Battery
2 DIMM connectors (1, 2, 3 left to right) 10 SCSI LED connector
3 Front panel connector 11 PCI slots
4 Power connector 12 Front panel audio connector
5 Diskette drive connector 13 CD-ROM audio connector
6 Primary IDE connector 14 AGP slot
7 Secondary IDE connector 15 12V Power connector
8 Clear CMOS/Recovery jumper
Installing memory
Your computer has three connectors for installing dual in-line memory modules
(DIMMs) that provide up to a maximum of 1 GB of system memory.
Note: Your computer will only support DIMM 1 and DIMM 2 (from left to right).
DIMM 3 will not be used due to mechanical restrictions.
Installing DIMMs
When installing DIMMs, the following rules apply:
v Fill each system memory connector sequentially, starting at DIMM 1
v Use 3.3 V, synchronous, 168-pin, unbuffered, 133 MHz, nonparity, synchronous
dynamic random access memory (SDRAM)
v Use 64 MB, 128 MB, 256 MB, or 512 MB DIMMs in any combination
v DIMM heights of 38.1 mm (1.5 inches)
To install a DIMM:
1.
Remove the cover. See “Removing the cover” on page 17.
Chapter 3. Installing internal options — small desktop model 19
