16
NVP1015 / NVP1017 User Manual
12. KVM Session

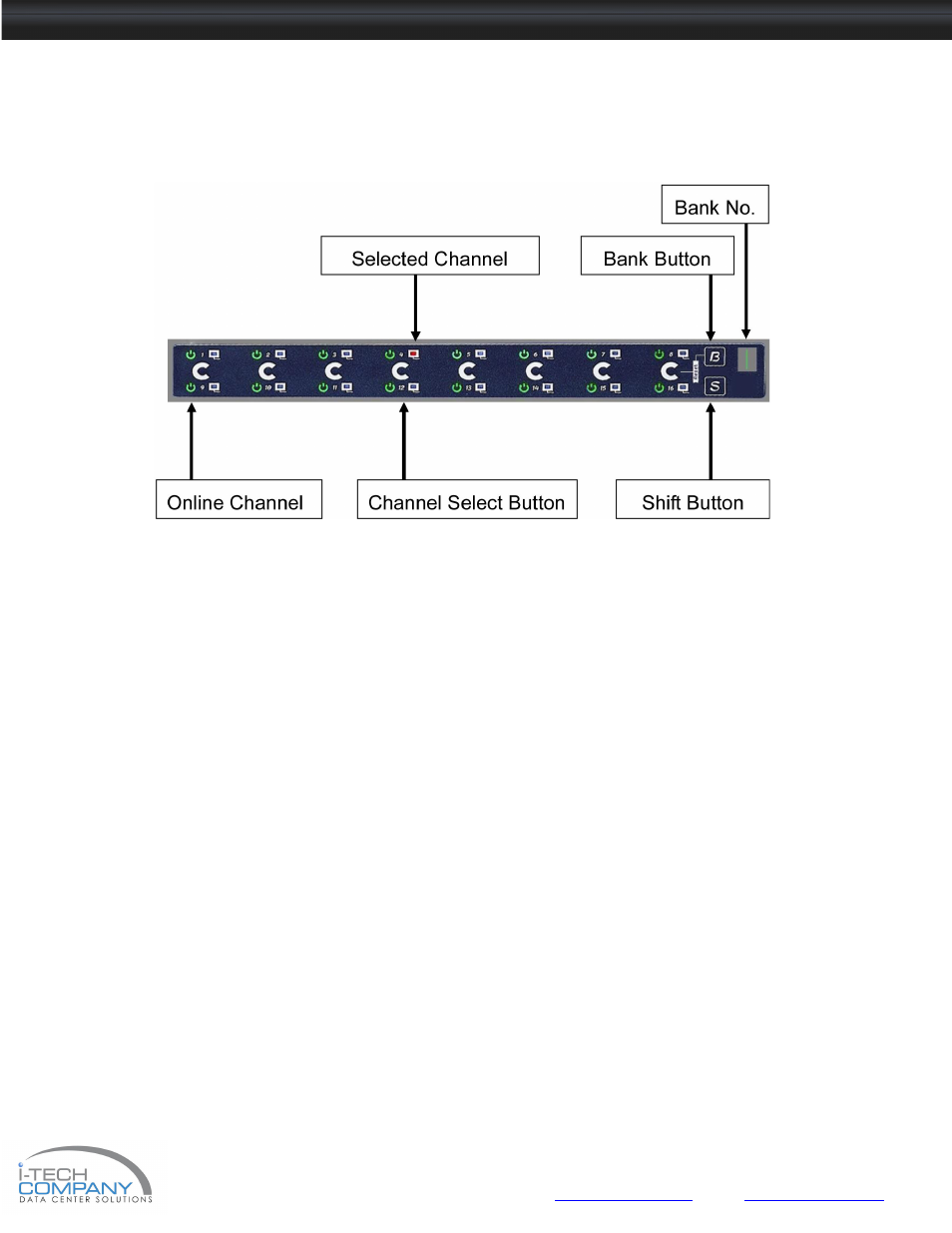

Front View
LED Indication
Selected Channel - Displayed channel on monitor & red in LED.
Channel select button - Press to select channel from 1 – 8.
Shift button - Press & Hold follow with a channel button to select channel from 9 – 16.
Online Channel - Green LED state the PC has connected and power on.
Bank no. - Display the Bank no. from 1 – 8.
Bank button - Select the bank from 1 – 8 (for cascade only).
