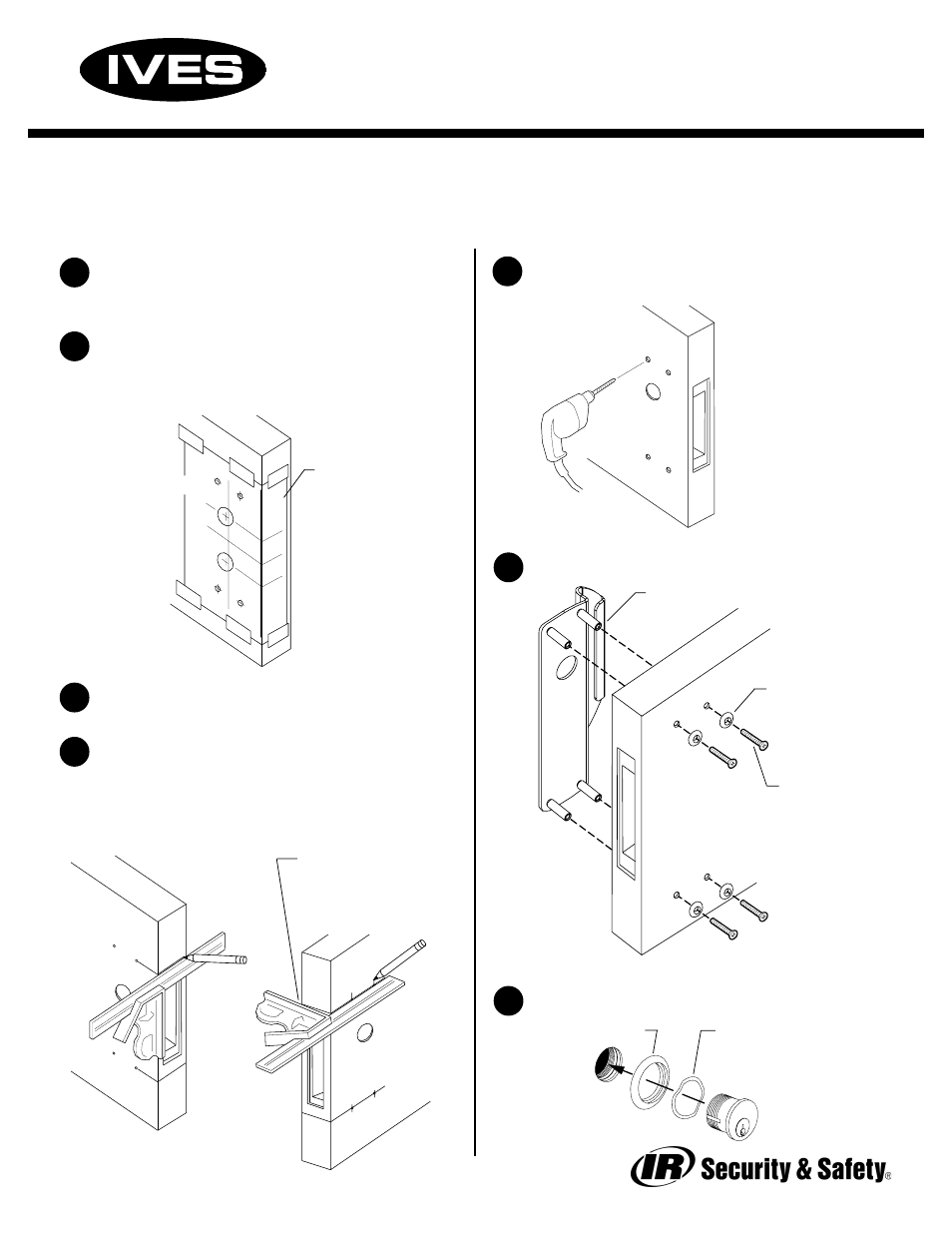

LOCATE AND PREPARE ALL TRIM HOLES
AS SHOWN ON TEMPLATE.
SECURE TRIM TO PUSH SIDE OF DOOR.
SEE MORTISE LOCK INSTRUCTIONS FOR
MORTISE LOCK AND CYLINDER INSTALLATION.
PREPARE DOOR FOR MORTISE LOCK. SEE
MORTISE LOCK INSTRUCTIONS FOR
PREPARATION.
ALIGN TRIM TEMPLATE WITH HORIZONTAL
CYLINDER CENTER LINE ( C ) ON PUSH SIDE
EDGE OF DOOR AND SECURE WITH TAPE.
MARK THE CENTER POINT OF EACH HOLE
WITH A PUNCH.
USING A SQUARE, TRANSFER THE 4
MOUNTING HOLE LOCATIONS TO THE
OPPOSITE SIDE OF THE DOOR.
HOLE DIMESIONS AND PREPARATION
ARE SHOWN ON TEMPLATE.
FOR USE WITH MORTISE LOCKS (ON PUSH SIDE OF DOOR)
VR900LLP/VR904LLP VANDAL RESISTANT TRIM
WHEN USING A BEVELED
DOOR, MAKE SURE TO
MEASURE HOLES FROM
THE FURTHEST EDGE AS
SHOWN
TRIM
SIDE
1
2
3
4
5
6
7
1/4” COUNTERSINK
WASHERS (4)
SCREWS (4):
1/4-20 X 1-3/8”
OPHMS SCREWS
(1-3/4” DOORS)
1/4-20 X 1-3/4”
OPHMS SCREWS
(2-1/4” DOORS)
VR900LLP/VR904LLP TRIM
LH SHOWN
RH OPPOSITE
USE WAVE WASHERS
INSIDE CYLINDER
COLLAR AS NEEDED
FOR PROPER FIT
CYLINDER COLLAR
LH SHOWN
RH OPPOSITE
VR900LLP TRIM
TEMPLATE
L
CYLINDER
LC
INSTALLATION INSTRUCTIONS
