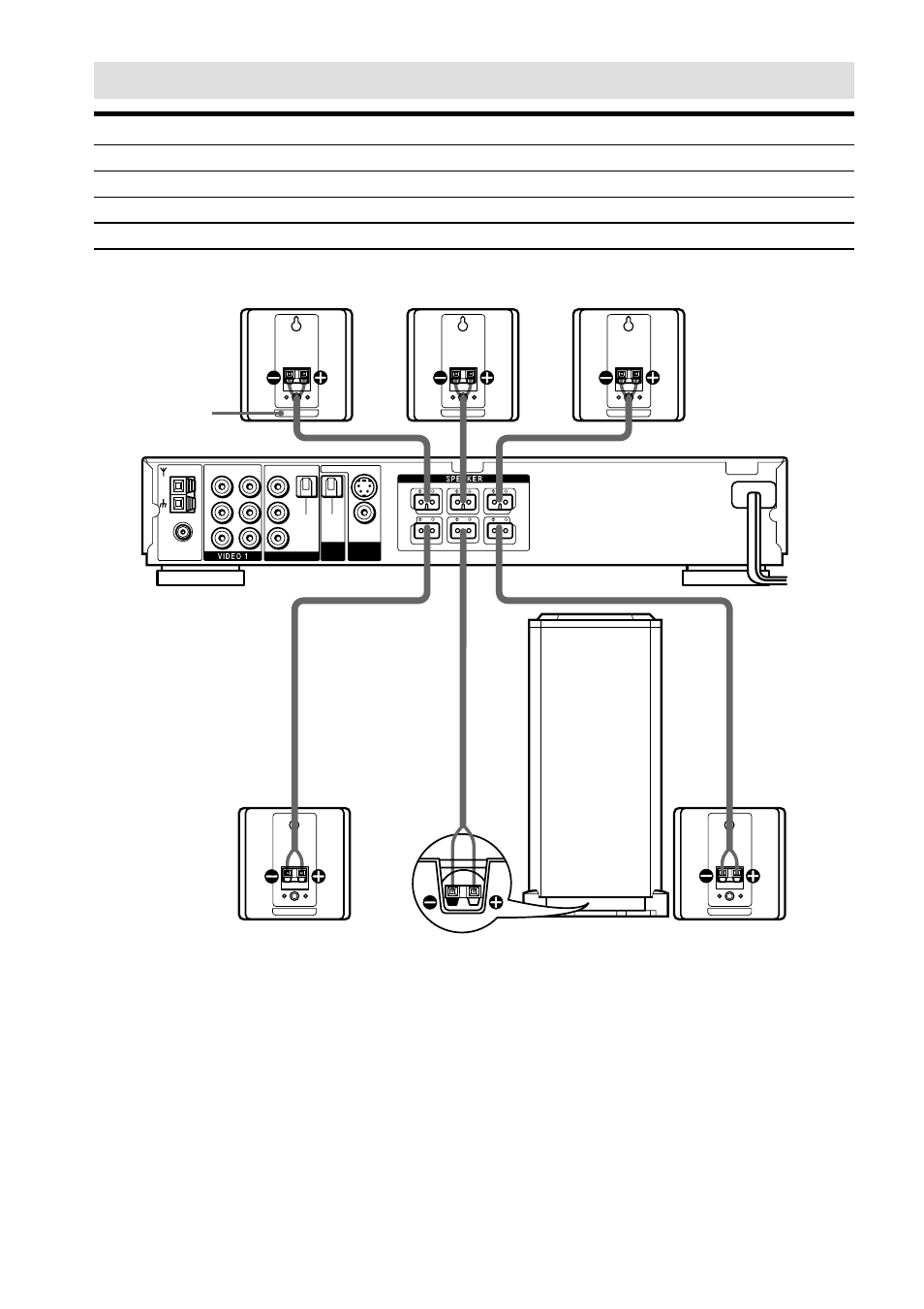

Front speaker (R)
Rear speaker (L)
Rear speaker (R)
Subwoofer
Centre speaker Front speaker (L)
Colour label
Terminals for connecting the speakers
Connect the To the
Front speakers SPEAKER FRONT L (white) and R (red) terminals
Rear speakers SPEAKER REAR L (blue) and R (grey) terminals
Centre speaker SPEAKER CENTER (green) terminal
Subwoofer SPEAKER WOOFER (purple) terminal
Note on placing speakers
Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with
the front/rear speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or
discoloration may result.
