I/O Magic DAV-S500 - Manual (Page 12)

12
1 AM antenna (20)
2 VIDEO 1 jacks (22)
3 VIDEO 2 jacks (22)
4 DIGITAL IN (OPTICAL) jack (23)
5 DIGITAL OUT (OPTICAL) jack 6 MONITOR OUT (VIDEO/S VIDEO)
jacks (22)
7 SPEAKER jacks (18)
8 FM 75
Ω
COAXIAL antenna jack (21)

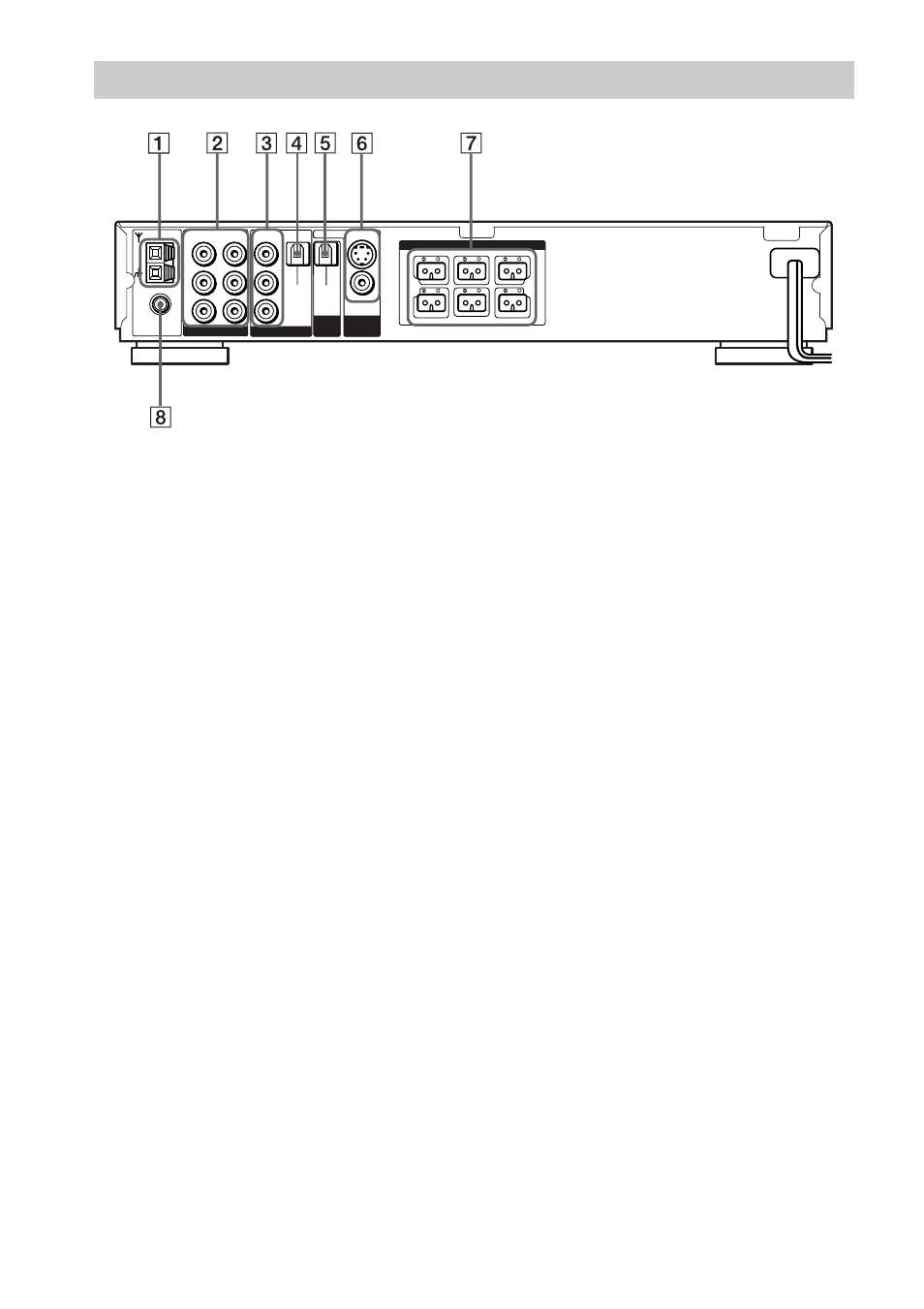

Rear Panel
COAXIAL
V I D E O O U T
A U D I O O U T
V I D E O I N V I D E O I N
O P T I C A L
D I G I T A L
I N V I D E O
S V I D E O ( DVD ONLY)
O P T I C A L
( C D O N L Y )
A U D I O I N A U D I O I N
AM
L
R
L
R FM
75 Ω
FRONT R FRONT L CENTER
REAR R REAR L WOOFER
VIDEO 1 VIDEO 2
SPEAKER
MONITOR
OUT
DIGITAL
OUT
