Ikelite 6038.50 - Manual

IIKKEELLIITTEE VVIID DEEO O CCAASSEE
SSU UPPPPLLEEM MEEN NTTAALL IIN NSSTTRRU UCCTTIIO ON NSS FFO ORR
# #66003388..5500 SSoonnyy H HDDRR SSXX1111,, 1122
This supplemental set of instructions describes additional features specific
to your housing model. Prior to testing the system in the water, please read
this supplement along with the general instruction manual to become familiar
with its features and functions.
Ikelite Video Cases are slightly negative in salt water for stability. This
housing has been water pressure tested at the factory and has a working
depth of 60m 200 .

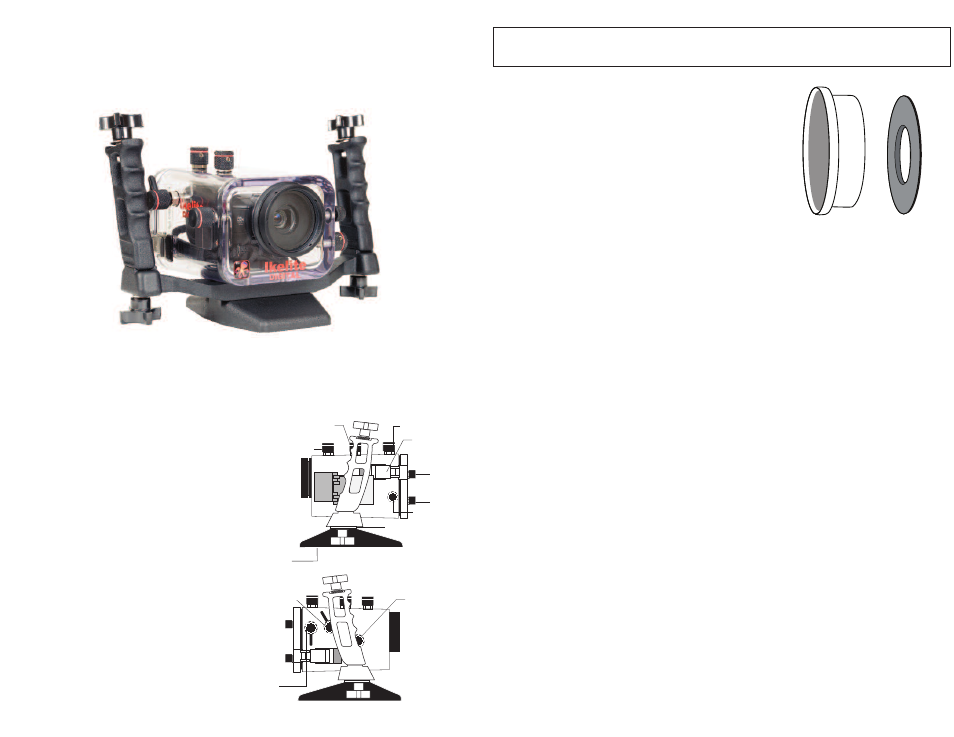

H HO OU USSIIN NGG CCO ON NTTRRO OLLSS ________________________________
• Power On/Off / Mode
• Start/Stop
• Snap Shot / Photo
• Power Zoom
• LCD Screen Control #1
• LCD Screen Control #2
• LCD Reversing Circuit On/Off
• LCD Screen Control #3
• Focus Lock
M MAAIIN N O O--RRIIN NGG ##00110099__________________________________
O-rings last several years if properly
maintained. Control seals should not need to
be replaced as long as the control shafts are
kept clean and lightly lubricated.
Base
Power Zoom
Port
Power
Touch
Pad
Touch Pad
Touch
Pad
Lid Snap
Focus Lock
Mirror
#6039.94 Sony HDR SR11, 12
Bottom Bar
On/Off
for Reverse
Circuit
Start/
Stop
Snap Shot
P P RR EE PP AA RR AA TT II O O N N
PPAACCKKAAGGEED D W WIITTH H H HO OU USSIIN NGG ____________________________________________________________________________________________
• External UR/Pro Color Filter
• Internal Lens Shade
• Silicone Lubricant
CCO OLLO ORR FFIILLTTEERR __________________________________________________________________________
The installation and usage of the external UR/Pro
color filter is described in the general instruction manual.
LLEEN NSS SSH HAAD DEE ______________________________________________________________________________
The internal lens shade helps block light reflection/
refraction caused by the interaction of the external color
filter and the port.
Carefully thread the lens shade on the front of the
camera lens. The lens threads are very fine; D DO O N NO OTT cross thread. It should screw on
very easily. If it is difficult to turn, you are cross threading.
Completely thread the lens shade into the camera to avoid any potential
clearance or sealing problems when the camera is installed and the housing is sealed.
LLCCD D M MO ON NIITTO ORR // EEXXTTEERRN NAALL M MIIRRRRO ORR ____________________________________________________________________________
The camera s LCD monitor can be viewed from the rear of the housing, using the
external mirror featured on the side of the housing.
Open the LCD monitor on the camera, rotate 180°, and then press it back against
the side of the camera. The external mirror is hinged so that it can be opened to reflect
the image from the camera s LCD monitor for viewing from the rear of the housing.
During transportation, please remember to close the mirror by pressing it against
the side of the housing or lid snap.
BBAATTTTEERRYY AAN ND D TTAAPPEE ____________________________________________________________________________________________________________
Install a fully charged Sony battery on the camera:
Sony NP-FH50, NP-FH60, NP-FH70, NP-FH100
Other brand batteries may not fit inside the housing.
Make sure you have loaded an appropriate digital cassette tape in the camera.
O OPPTTIIO ON NAALL W WIID DEE AAN NGGLLEE LLEEN NSS ________________________________________________________________________________________
The housing s port accepts optional 67mm threaded waterproof Wide-Angle lenses
such as the Ikelite #6420 W-20, Epoque DCL-20 and Inon UWL-100 Type 2. These
waterproof lenses secure to the outside of the lens port.
Should you elect to use an optional waterproof lens, carefully thread the lens on
the front of the lens port on the housing. The lens threads are very fine; DO NOT cross
thread. It should screw on very easily. If it is difficult to turn, you are cross threading.
IIN NTTEERRN NAALL W WIID DEE--AA N NGGLLEE LLEEN NSS O OPPTTIIO ON N ________________________________________________________________________
Special ports are available for use with the Raynox HD-5050 Pro high definition
wide-angle lens. optional ports sold separately as dome port #9304 or flat lens port
#9304.1. Raynox HD-5050 Pro lens not included. Lens nnoott available for purchase
through Ikelite.
EEXXTTEERRN NAALL W WIID DEE--AA N NGGLLEE PPO ORRTT O OPPTTIIO ON N ________________________________________________________________________
The Ikelite #6480 WP-80 is a complete unit, no additional lens or port is required.
The Wide Angle Port replaces the housing s original port and cannot be removed and
replaced underwater. The WP-80 is useable above water for up to 90 degree field of
view, underwater for up to 80 degree field of view exact angle of coverage varies with
camera model .
External
Color Filter
Internal
Lens Shade
