PROCEDURE 4
TILLER
T
I
L
L
E
R
REMOVING/INSTALLING BOOT
(FIGURE 9)
Removing
1. Remove the tiller assembly. Refer to REMOV-
ING/INSTALLING TILLER ASSEMBLY in this
procedure of this manual.
2. Remove the EXISTING boot by sliding it over
the front fork with bearing assembly.
Installing
1. Install the NEW boot by sliding it over the front
fork with bearing assembly.
2. Install the tiller assembly. Refer to REMOVING/
INSTALLING TILLER ASSEMBLY in this proce-
dure of this manual.
Boot
Fork With Bearing
Assembly

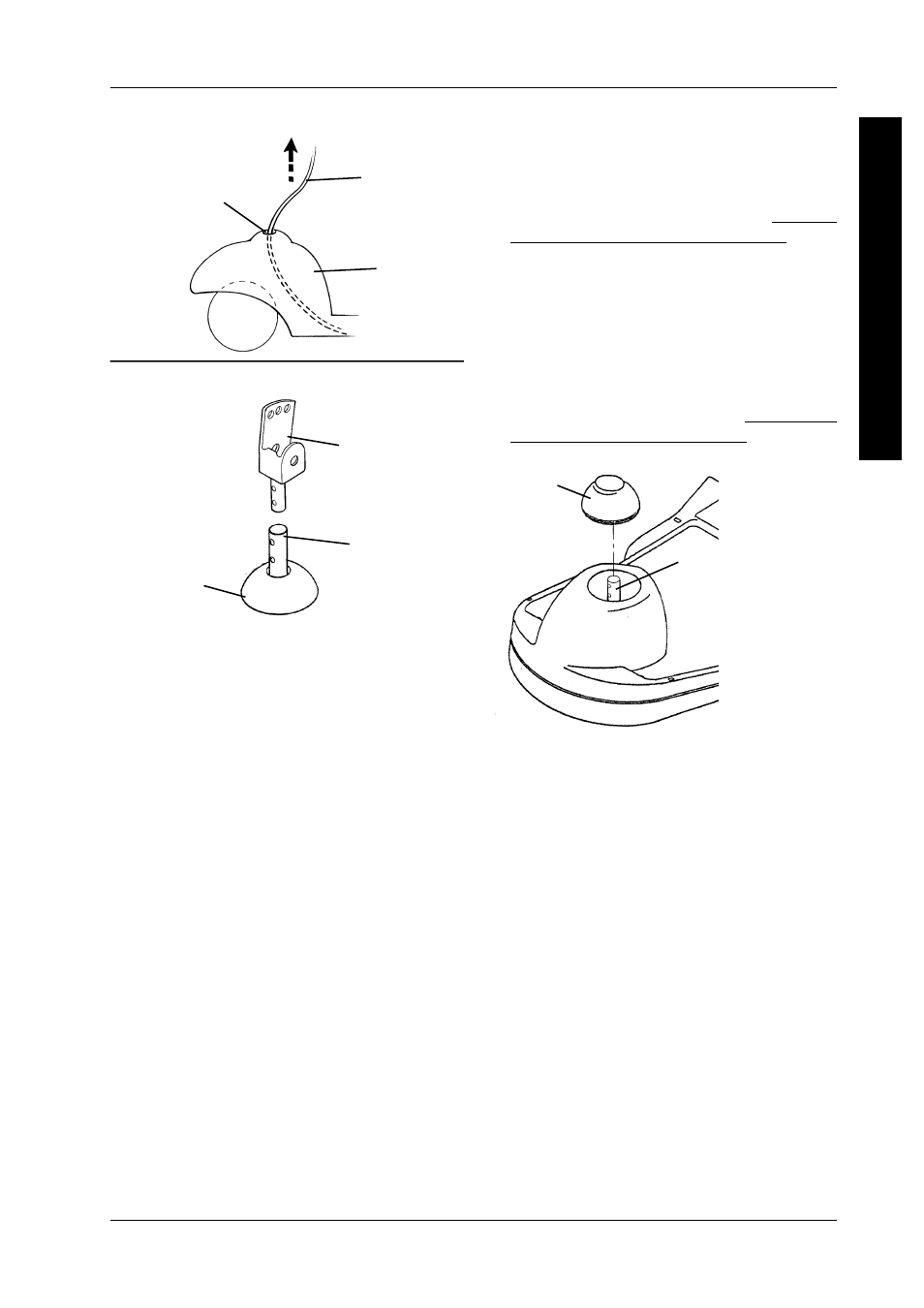

FIGURE 9 - REMOVING/INSTALLING BOOT
FIGURE 8 - REMOVING/INSTALLING TILLER
FROM/TO FRONT FRAME ASSEMBLY
DETAIL “A”
Tiller Wiring
Harness
Shroud
Assembly
Hole
Front Frame
Assembly
Boot
Base Handle
Bar Joint
DETAIL “B”
