Connecting the AV receiver —Continued

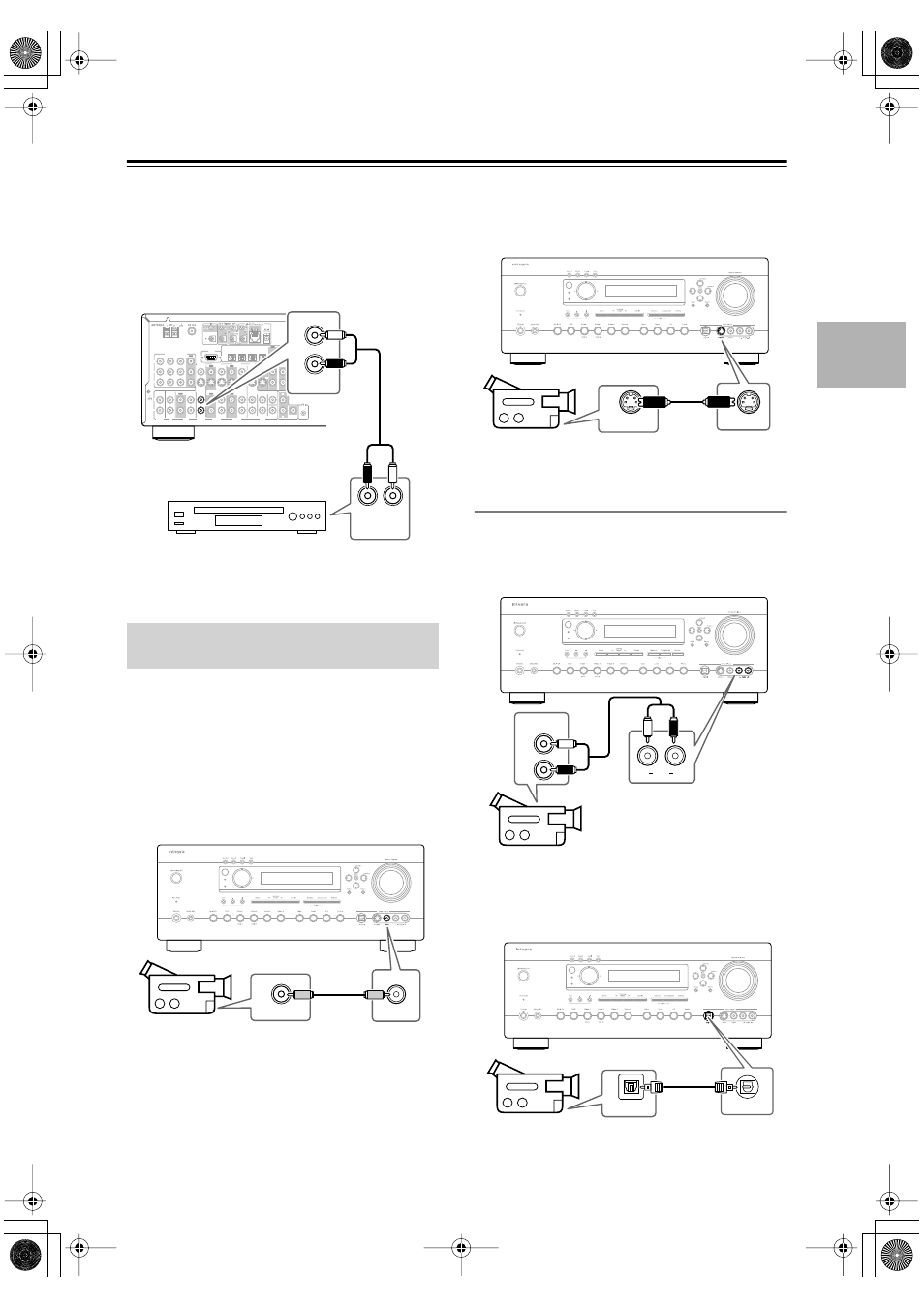

■ Using Analog Connections
If your video source doesn’t have a digital audio output,
or you want to record from it, you’ll need to make the
following analog audio connection.
Use an analog audio cable to connect the AV receiver’s
VIDEO 3 IN L/R jacks to the analog audio output on
your video source, as shown.
Video Connections
You only need to use one of the following connection
methods.
■ Using Composite Video
Use a composite video cable to connect the AV receiver’s
VIDEO 4 INPUT VIDEO jack to the composite video
output on your camcorder, games console, etc., as
shown.
■ Using S-Video
Use an S-Video cable to connect the AV receiver’s
VIDEO 4 INPUT S VIDEO jack to the S-Video output
on your camcorder, games console, etc., as shown.
Audio Connections
Use an analog audio cable to connect the AV receiver’s
VIDEO 4 INPUT AUDIO L/R jacks to the analog audio
output on your camcorder, games console, etc., as
shown.
If your camcorder, games console, etc., has an optical
digital audio output, use an optical digital audio cable to
connect it to the AV receiver’s VIDEO 4 INPUT DIG-
ITAL jack, as shown.
Connecting a Camcorder, Games
