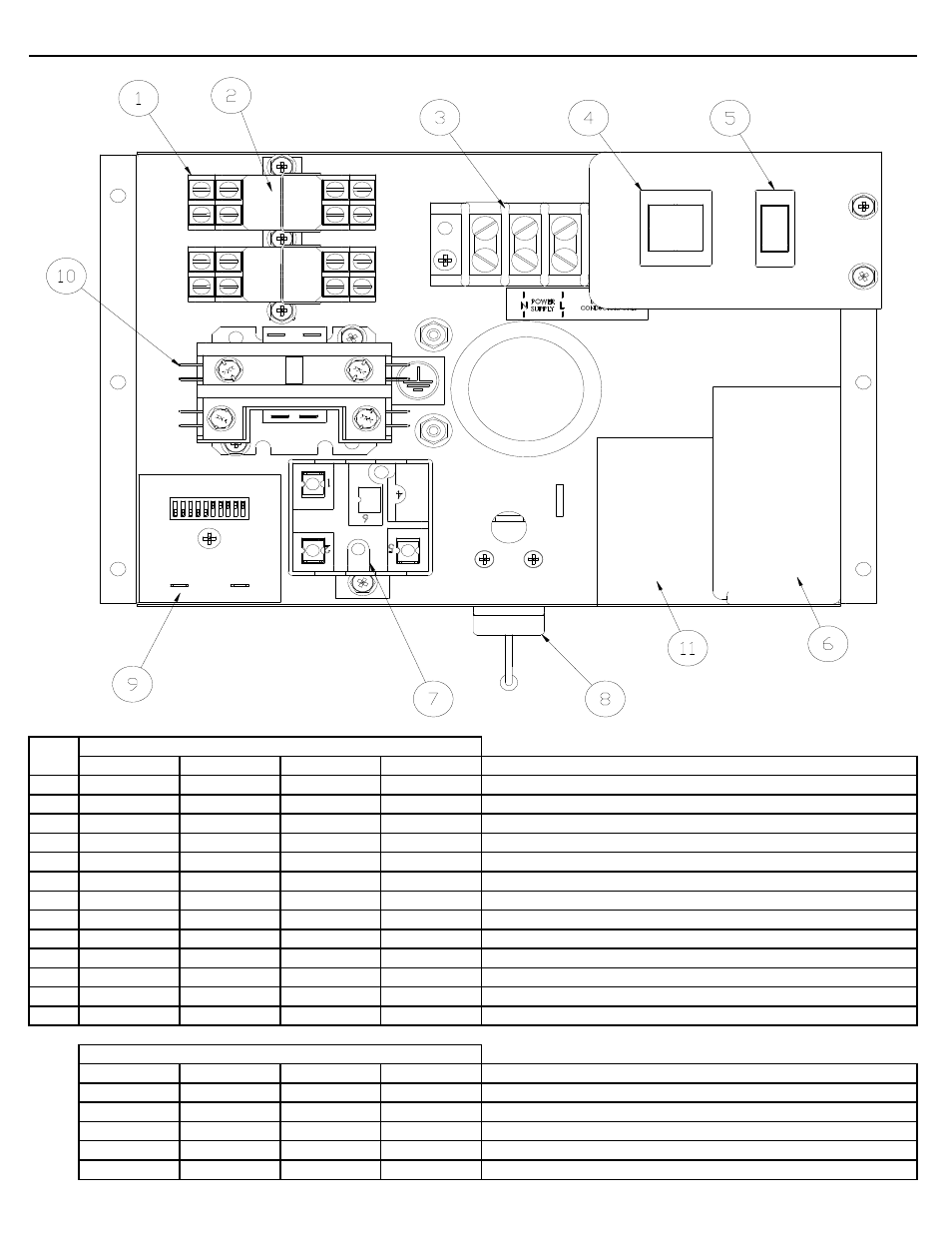

ICE0320/0520 Series Service Parts Control Box
Item
No. ICE0320 ICE0325 ICE0520 ICE0525 Description
1 9101083-01 9101083-01 9101083-01 9101083-01 Relay Socket
2 9101084-01 9101084-02 9101084-01 9101084-02 Relay
3 9101037-01 9101037-01 9101037-01 9101037-01 Terminal Board
4 9101195-01 9101195-01 9101195-01 9101195-01 On-Off Wash Switch
5 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch
6 9181003-09 9181003-40 9181003-09 9181003-45 Start Capacitor
7 9181004-27 9181010-26 9181004-27 9181010-30 Compressor Relay
8 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control
9 9101148-01 9101148-01 9101148-01 9101148-01 Timer
10 9101002-07 9101002-06 9101002-07 9101002-06 Contactor
11 N/A 9181009-08 N/A 9181009-08 Run Capacitor
12 9041098-01 9041098-01 9041098-01 9041098-01 High Temp Safety (Not Shown)
13 9101218-11 9101218-11 9101218-11 9101218-11 Water Pump Cord (Not Shown)
ICE0320 ICE0325 ICE0520 ICE0525
9181121-01 9181122-01 9181121-01 9181127-01 Compressor
9181003-39 9181003-40 9181003-39 9181003-45 Start Capacitor
N/A 9181009-08 N/A 9181009-08 Run Capacitor
9181004-27 9181010-26 9181004-27 9181010-30 Relay
9181005-37 9181005-39 9181005-37 9181005-44 Overload
Specific Compressor Components
