SECTION 4—INSTALLATION
Part No 1096926 21 Supine Bath Tub
Electrical Installation
Ꮨ DANGER
The National Electric Code requires the use of a ground fault circuit interrupter on all
therapeutic pools and tubs (hydrotherapeutic tanks). Failure to follow this requirement
could result in serious or fatal injury.
ELECTRICAL SHOCK HAZARD. All disassembly and maintenance of the tub MUST
be done by a qualified technician, certified electrician or plumber. Disconnect electrical
supply or turn OFF circuit breaker before performing any maintenance to the tub.
ƽ WARNING
Be certain ALL electrical work is performed by a qualified electrician and is in
compliance with local electrical codes.
All electrical conduit, fittings and wire to unit are to be supplied and installed by a
professional electrician in accordance with the National electrical code as a minimum
requirement, including the supply and installation of a Ground Fault Circuit Interrupter
(GFCI).
Before installing and connecting the tub, make certain that the electrical power source
is shut off to avoid electrical shock.
NOTE: For this procedure, refer to FIGURE 4.4.
1. Install a 115V electrical hook‐up per local
electrical codes.
2. For Model IH6300, perform the
following:
A. Remove the screws that attach the
rear access panel to the tub.
B. Route electrical line through electrical
line routing hole in tub frame.
C. Connect ground, neutral and hot
wires from wall directly to motor
through the electrical line routing
hole.
Ꮨ DANGER
Model IH6300ADH - Electric shock haz-
ard. Use only with hospital grade GFCI
receptacle. Failure to do so may result in
an electrical shock and/or serious or fatal
injury.
3. For Model IH6300ADH ‐ Plug hospital
grade plug into pre‐installed GFCI
protected hospital grade receptacle
(Detail “B” of FIGURE 4.4).
I

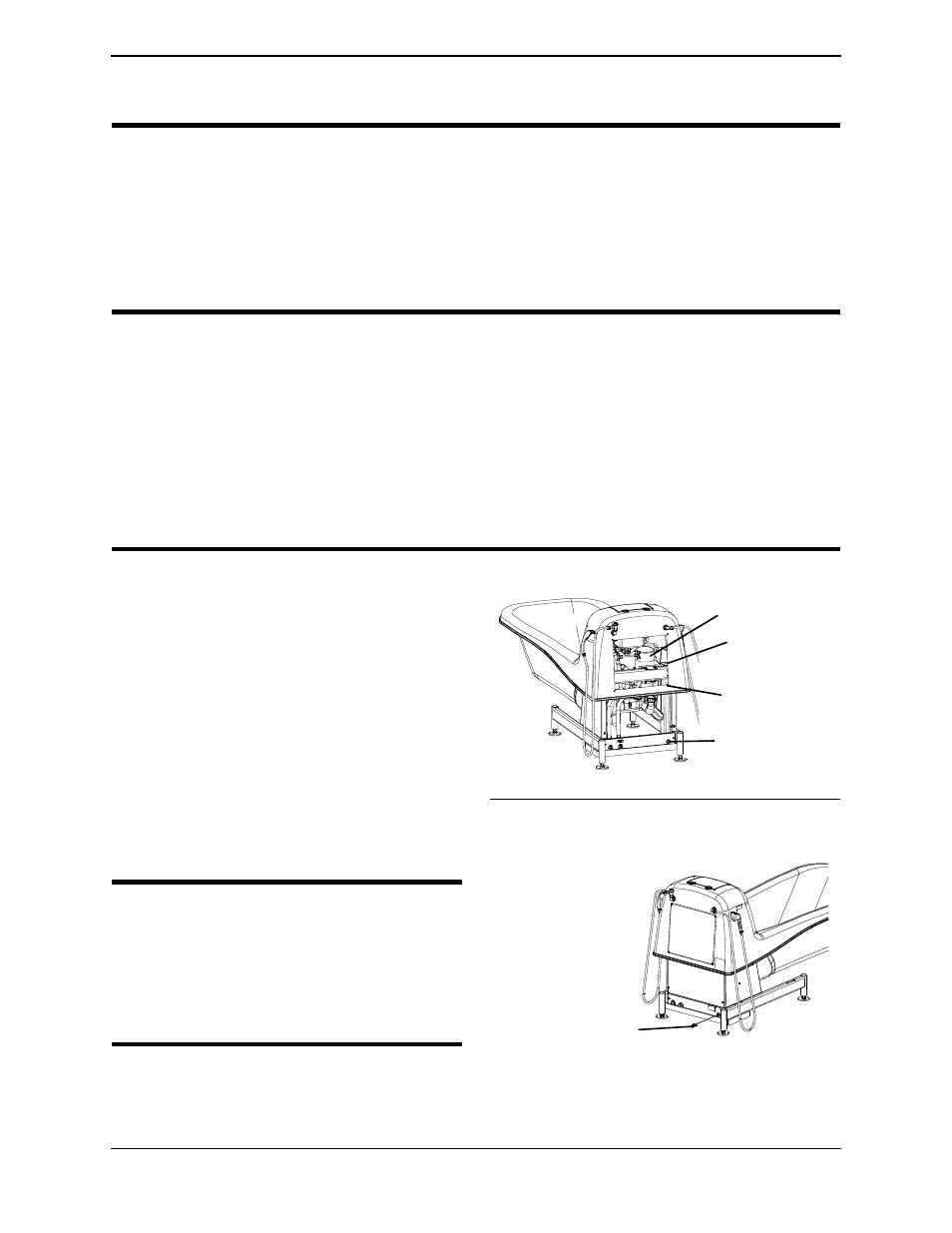

FIGURE 4.4 Electrical Installation
Rear Access
(Panel Removed)
Electrical Line
Routing Hole
Screw (1 of 4)
Hospital Grade Plug
Motor
DETAIL “A” - MODEL IH6300
DETAIL “B” - MODEL IH6300ADH
