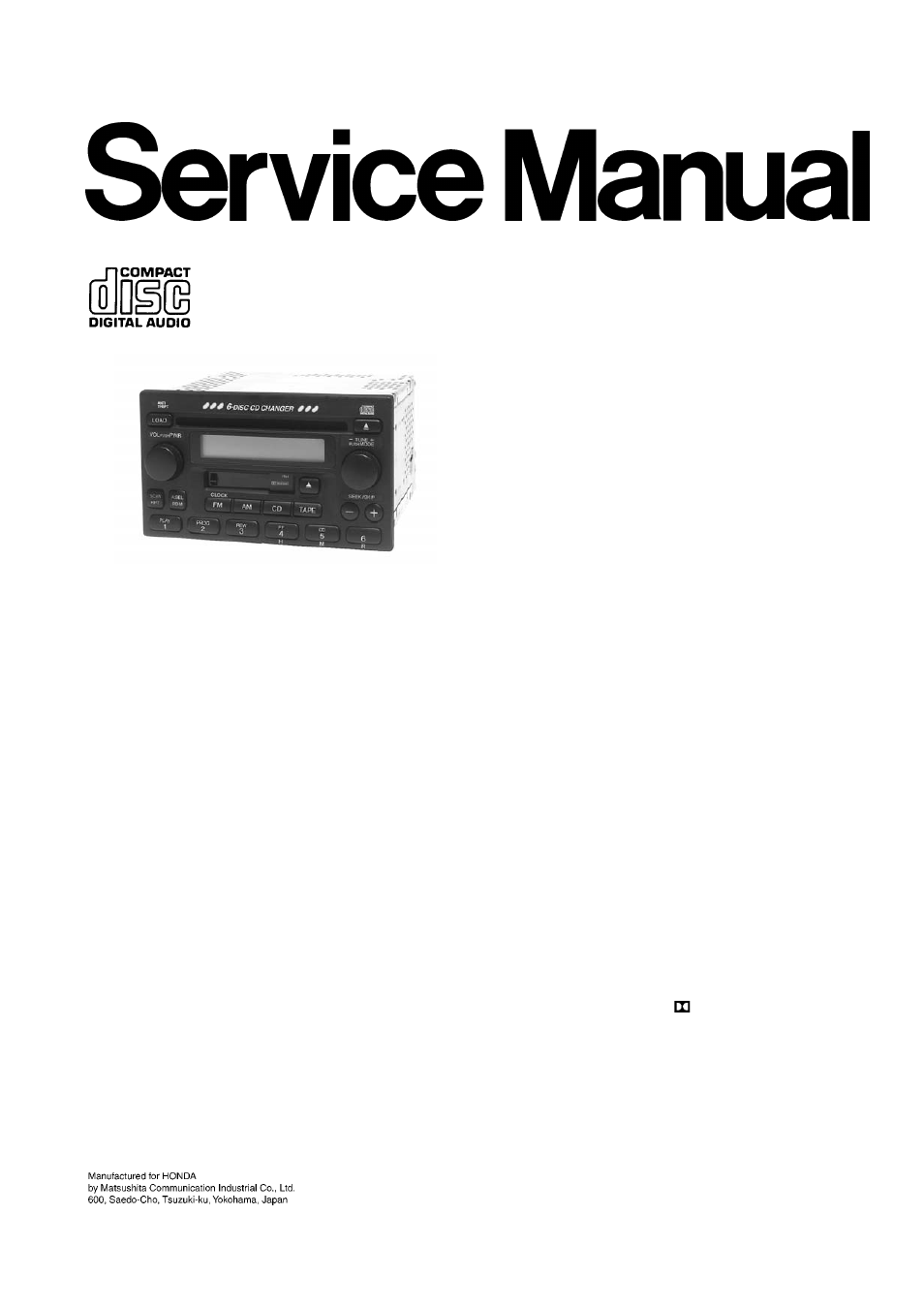

Insignia CQ-EH8160AK - Manual

General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Current Consumption Less than 3.0A (at 0.5W)
Power Output 30W×4
Output Impedance 4 Ω
AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 24dB/µV (S/N 20dB)
FM Stereo Radio
Frequency Range 87.7 - 107.9MHz
Usable Sensitivity 6dB/µV (S/N 30dB)
Cassette Player
Reproduction System 4-Track, 2-Program Stereo
Tape Speed 4.76cm/sec.
HONDA
CQ-EH8160AK
AM/FM MPX ELECTRONIC TUNING
RADIO
with Stereo Cassette Tape
Player and 6-Disc CD Changer
HONDA PART No. : 39100-S9A-A200
ID CORD : 1TN0
VEHICLE : CR-V
DESTINATION : North America
PRODUCED AFTER : Feb., 2002
Wow and Flutter Less than 0.2% (WRMS)
Signal to Noise Ratio More than 38dB (IHF-A)
IDC
Signal to Noise Ratio More than 63dB (IHF-A)
Total Harmonic Distortion Less than 0.4%
Channel Separation More than 50dB (IHF-A)
Dimensions** (W×H×D) 180Ч102Ч170mm
Weight** 2.4kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
“Dolby” and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
AUTOMOTIVE ELECTRONICS
Specification*
ORDER No.0159
I0
