6 TP 400-2275-02-BR-S © Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

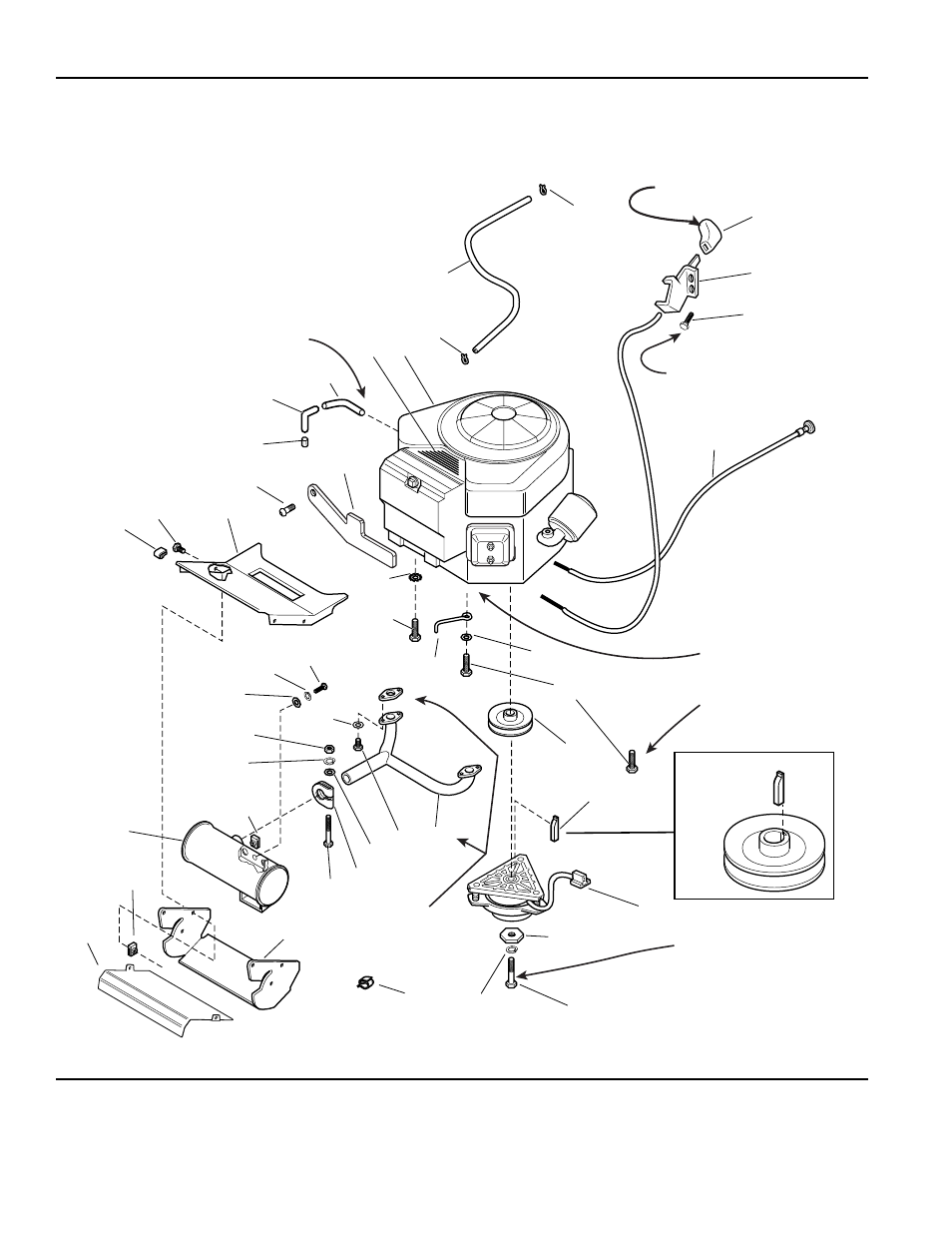

Engine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
1693583 Baron, 18HP Tractor
1693494 Baron, 18HP Tractor (Export)
1693686 Baron, 18HP Tractor (Export)
Coat threads with
pipe sealent
Apply anti-seize lubricant
to crankshaft
Torque to 35-45 in. lbs.
Heat to 100˚ F for installation
Torque (4) engine
mounting blots to
28-34 ft. lbs.
Mount exhaust manifold
and torque screws to
175-200 in. lbs.
Torque to 45-50 ft. lbs.
Note:
Orentation
of Keys
6
7
8
9
10
11
10 12
13
14
15
16
17
20 20
19
18
21
23
26
25
24
27
33
34
35
32
31
41
29 28
37
38
41
37
39
1
2 3
22
4
5
36
40
30
42
