• Disconnect power to the gas fireplace.
• Remove the fan speed mounting bracket.
• The convection blower is located at the bottom of the appliance at the back. Remove the
three screws holding the blower.
• Rotate the blower to the left and carefully take the blower out with its back end out first.
• Disconnect the wires from the blower.
REPLACING OPTIONAL CONVECTION BLOWER
SERVICING Cont...
Replacing Gas Component Assembly
• Disconnect electricity to the appliance. (If equipped with Optional Fan Kit)
• Remove the glass door and the logs. (See installation section pages 11 and 12)
• Remove the burner tray by loosening and removing the two mounting screws located on the
sides of the burner.
•
• Shut off the gas to the appliance and disconnect the gas line to the appliance.
• If the appliance has a remote switch or thermostat, disconnect their wires at the front of the
valve.
• Remove the four screws holding the gas component assembly plate to the appliance.
• Gently lift the assembly up and tilt the back up to clear the front of the valve from the
opening.
• Replacing the assembly is the reverse of the above instructions.
REPLACING VALVE PLATE ASSEMBLY
SPEED CONTROL
LINE
CONVECTION FAN
GROUND
110F (43ºC) N.O.
THERMAL SNAP SWITCH
NEUTRAL
TO
APPLIANCE
120 VAC

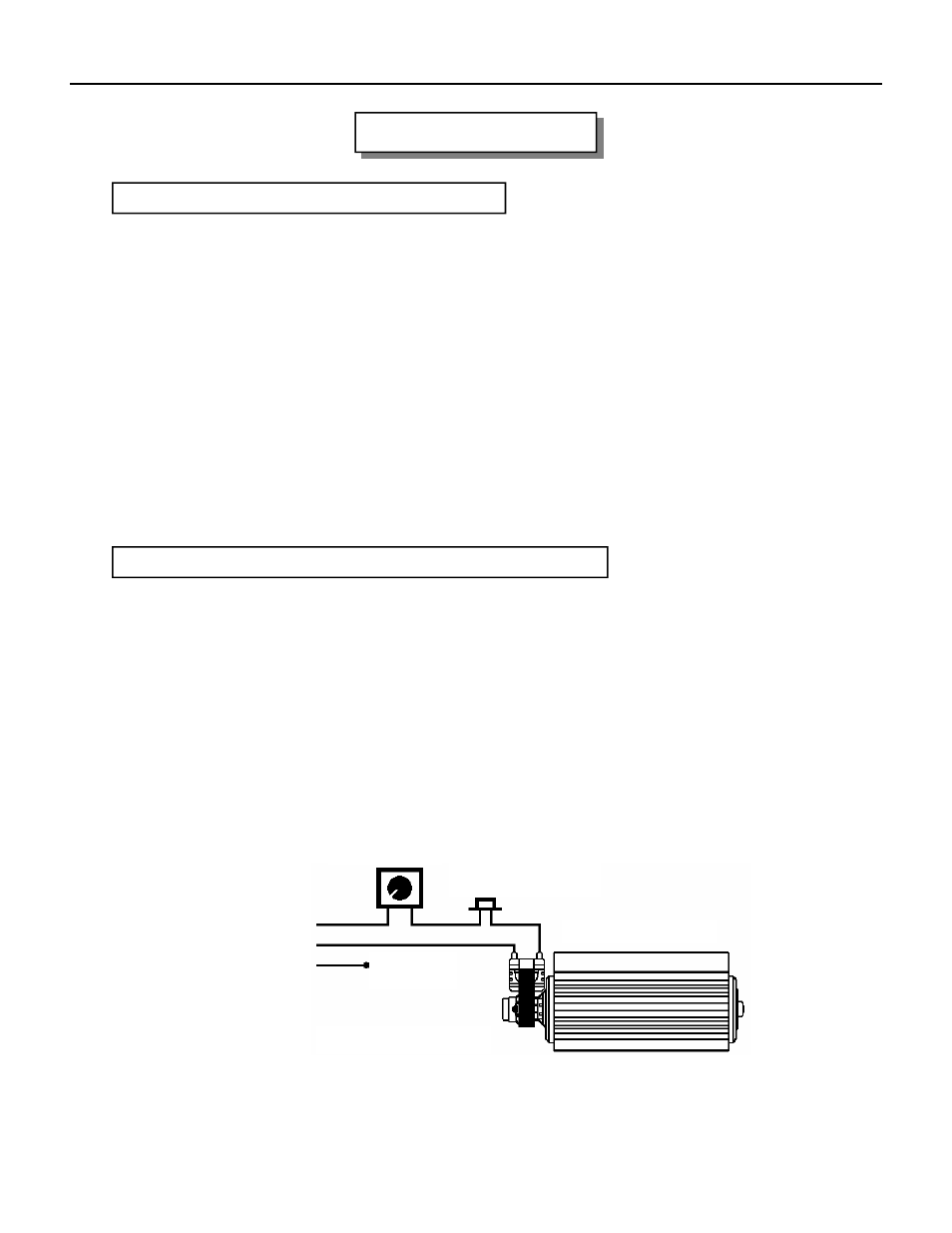

WIRING DIAGRAM
