LOG PLACEMENT INSTRUCTIONS
PLACEMENT OF LOGSET, FIBER COALS & EMBER WOOL
• Place the back log at the back of the burner tray as shown, behind the two tabs on the burner
tray.
• Place the front log on top of the burner as shown. The metal tabs protruding from the bottom
of the log straddle the side of the burner top.
• Place the branches directly on the front and back logs as shown. There are locating holes on
the bottom of the branches to mate with metal pins protruding from the top of the front log.
• A bag of fiber coals and a bag of ember wool is provided with the heater.
• Place the fiber coals on the burner tray, surrounding the burner. DO NOT place fiber coals on
the burner itself.
• Tear ember wool into 1/2” to 3/4” diameter ember pieces and place them on the edges of the
burner so as to hide the transition between the fiber coals and the burner. Keep the embers
from obstructing the burner ports.
Do not add any materials to the burner, other than the type and amount provided by
Archgard.
LEFT BRANCH RIGHT BRANCH
BACK LOG
WARNING : Do not place the logs and branches in any configuration other then the one
shown, a fire, explosion or excessive carbon monoxide (CO) may result,
causing property damage, personal injury or loss of life.

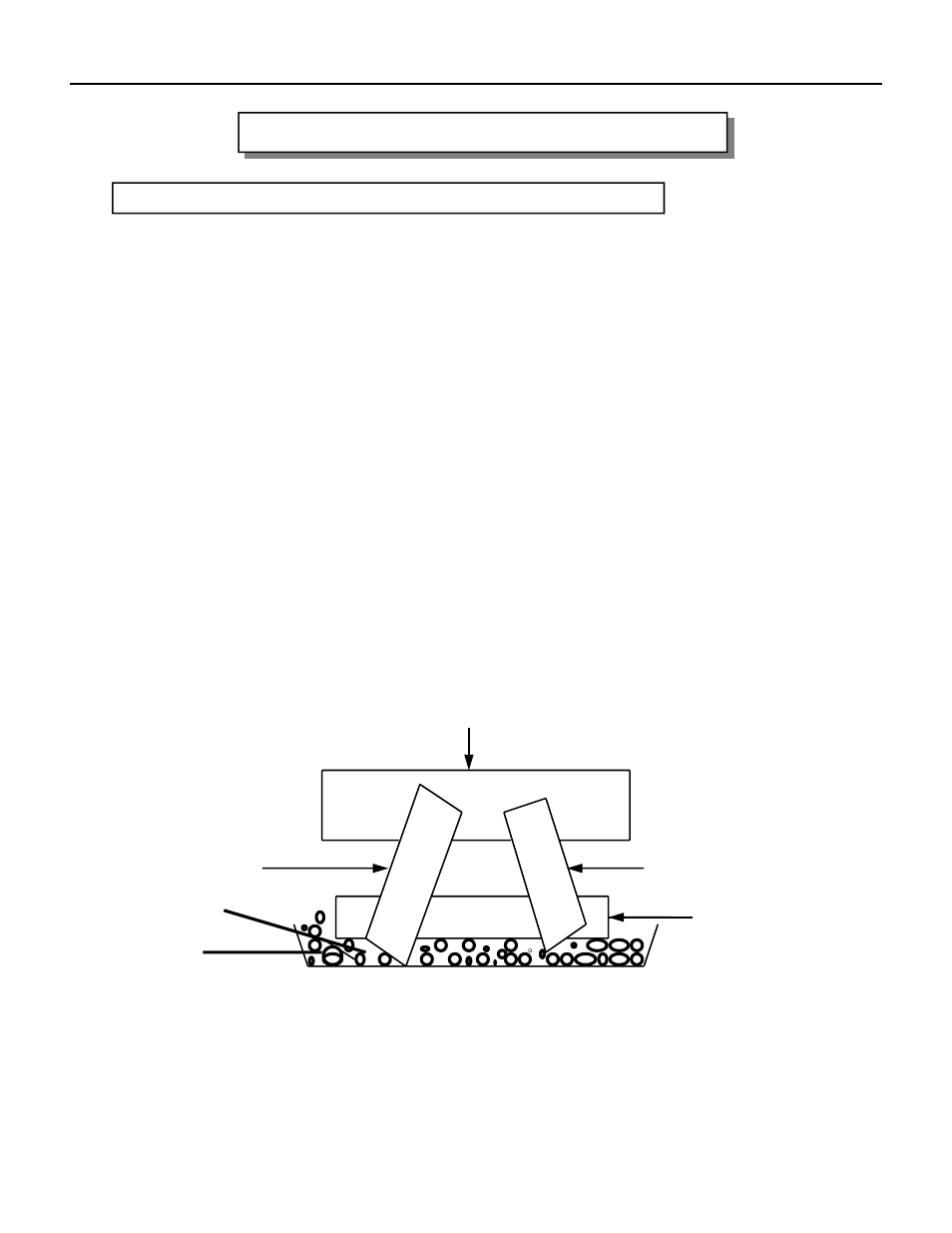

LOG SETUP DETAIL
COALS
EMBERS
FRONT LOG
