Setting up the compact disc player
21

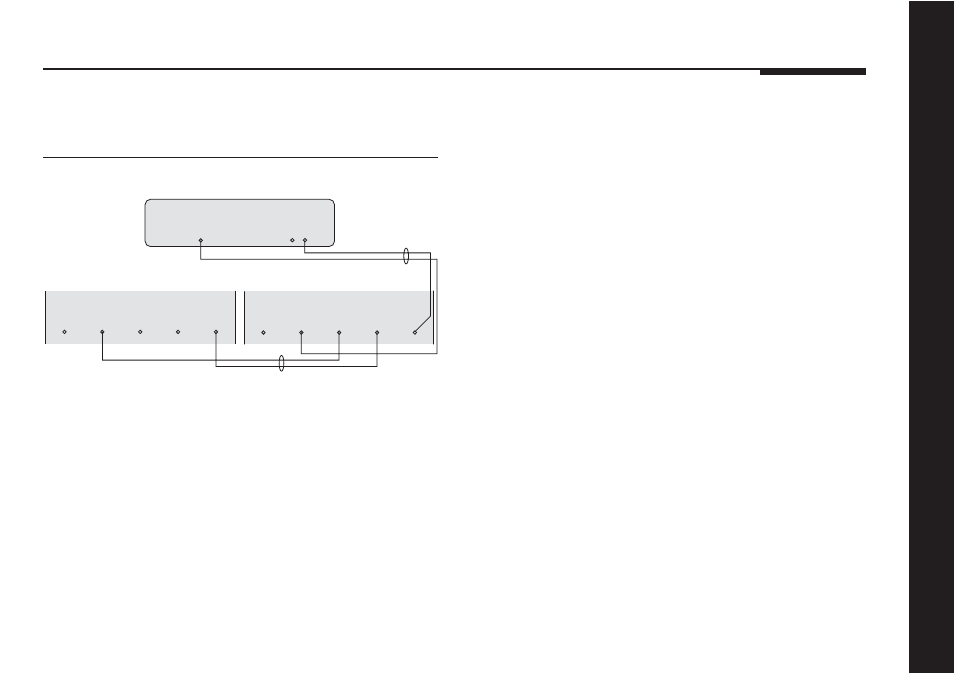

To connect to Meridian DSP
loudspeakers
DIGITAL
OUT
COMMS
OUTPUT INPUT
DIGITAL
OUTPUT
DIGITAL INPUTS
2 1
COMMS
OUTPUT INPUT
DIGITAL
OUTPUT
DIGITAL INPUTS
2 1
M5 lead
S5 lead
DSP Loudspeaker – Main R (slave) DSP Loudspeaker – Main L
507 Compact Disc Player
COMMS
● Connect the DIGITAL OUT from the 507 Compact Disc Player
to DIGITAL INPUT 1 on the master DSP loudspeaker, using an
M5 lead.
● Connect one of the COMMS sockets on the 507 Compact
Disc Player to the COMMS input on the master DSP
loudspeaker, using an M5 lead.
● Connect the DIGITAL and COMMS output from the master
DSP loudspeaker to the DIGITAL and COMMS INPUTS on the
slave DSP loudspeaker, using an S5 lead.
