6.1 Getting Started

Select the item that you want to edit, and set its parameters as desired.

- LNB Power : Select among ON/OFF/13V/18V.
- LNB Type : Select among Single/Universal/OCS.
- LNB Freq : Set the frequency of the LNB oscillator.
- 22KHz : When not AUTO, set the signal path from LNB or switch by selecting a control signal

among 0/22KHz.

- DiSEqC switch : Select DiSEqC protocol among OFF/1.0/1.1 as appropriate for your

configuration.

- Committed/Uncommitted : Select the DiSEqC port.

Select the item that you want to edit and set its parameters as desired.

- Frequency : If the default TP frequency is not appropriate, you can select another TP

frequency at which to check for signal.

- DiSEqC Motor : Select DiSEqC protocol among OFF/1.2/USALS as appropriate for your

Motor.

(When the DiSEqC Motor parameter is set as 1.2)

- Move : You can move the dish to the West/East.
- Limit : If you want to set limits, press

- Disable Limit : You can disable the East and West limits.
- Goto Center : Move the dish to the initial 0 position.
- Set East / West Limit : Move the dish East or West using / .

Press

to set East or West limit.

(When the DiSEqC Motor parameter is set as USALS)

- Sat Degree : Satellite location.
- Antenna Position : Press .
- Goto Reference : Move the dish to the reference 0 position.
- Antenna Longitude : Your longitude at present.
- Antenna Latitude : Your latitude at present.

Note : You need to know what LNB you are using to correctly set the L.O. (local

oscillator) frequency.

Note : You need to understand how your receiver is connected to properly set the

22KHz and DiSEqC.

When you are done, press the EXIT button.

VOL

Press the MENU button to display the main menu.
Use

and / to move in the menu.

Press

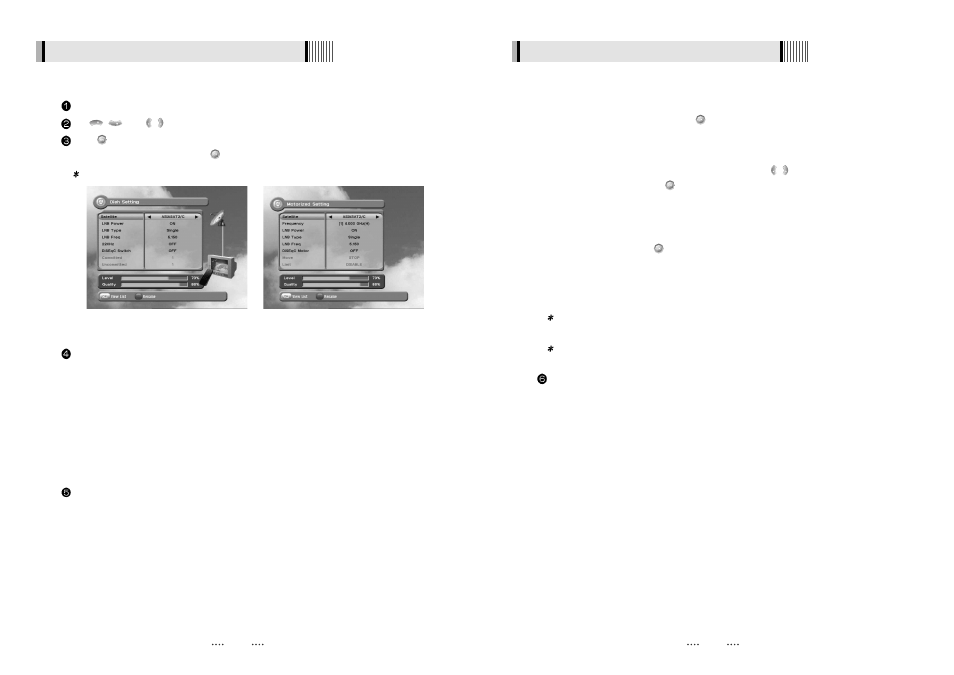

on ‘Dish Setting’. The following window will appear.

If you have a motorized dish, press

on ‘Motorized Setting’. < Figure 6-3>

Note : Enter a 4-Digit password if need arise. The default password is ‘0000’.

VOL

2) Antenna Setup
