GA-M59SLI-S5/GA-M59SLI-S4 Motherboard - 34 -
English
Open: Normal
Short: Clear CMOS

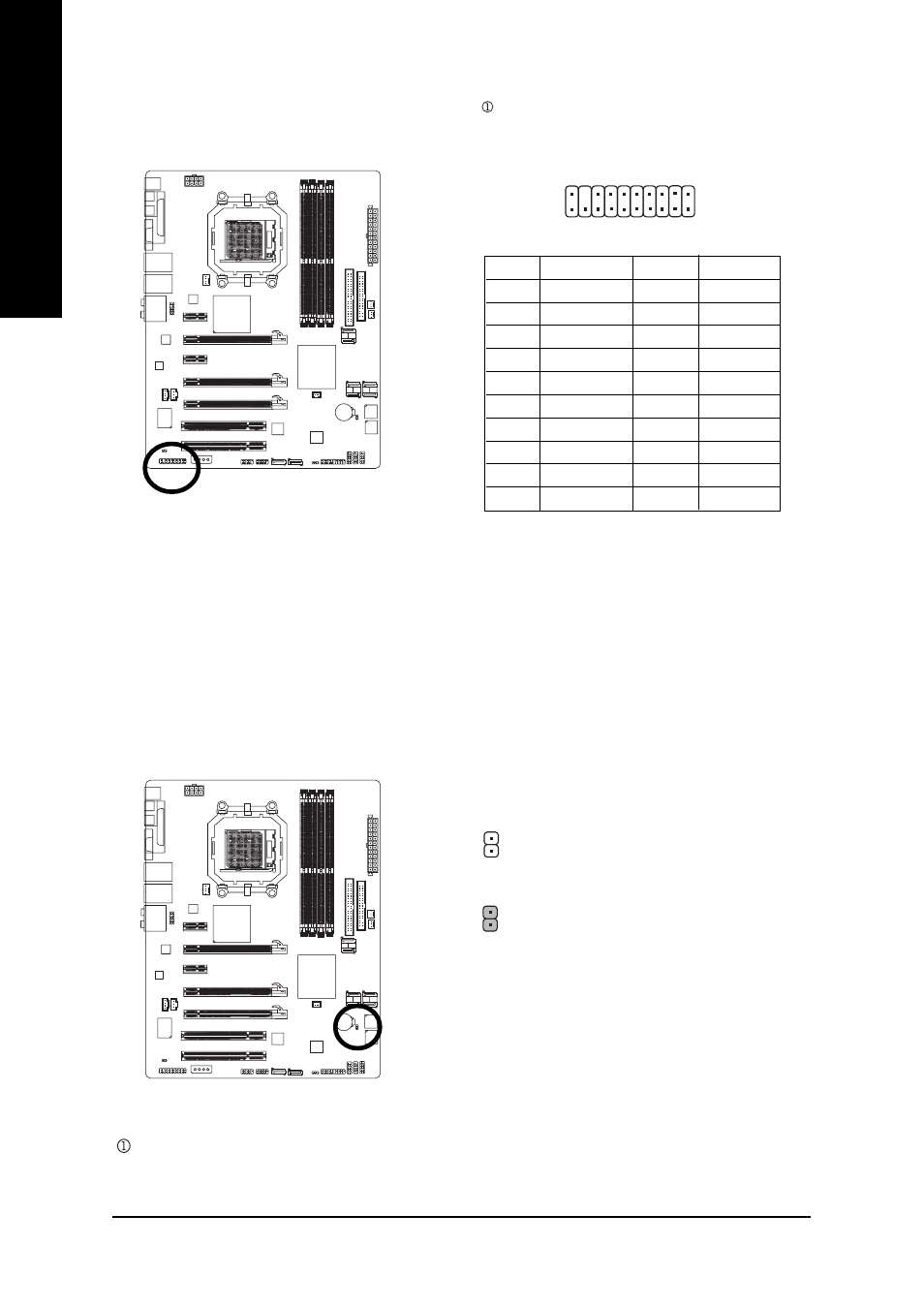

20) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default values by this header. To clear CMOS, temporarily
short the two pins. Default doesn't include the jumper to avoid improper use of this header.
19) TPM Connector (Trusted Platform Module)
Please contact your nearest dealer for optional TPM cable.
Pin No. Definition
1 LCLK
2 GND
3 LFRAME
4 No Pin
5 LRESET
6 VCC5
7 LAD3
8 LAD2
9 VCC3
10 LAD1
Pin No. Definition
11 LAD0
12 GND
13 RSVO
14 RSV1
15 SB3V
16 SERIRQ
17 GND
18 CLKRUN
19 LPCPD
20 RSV2
Only for GA-M59SLI-S5.
1
2
19
20
