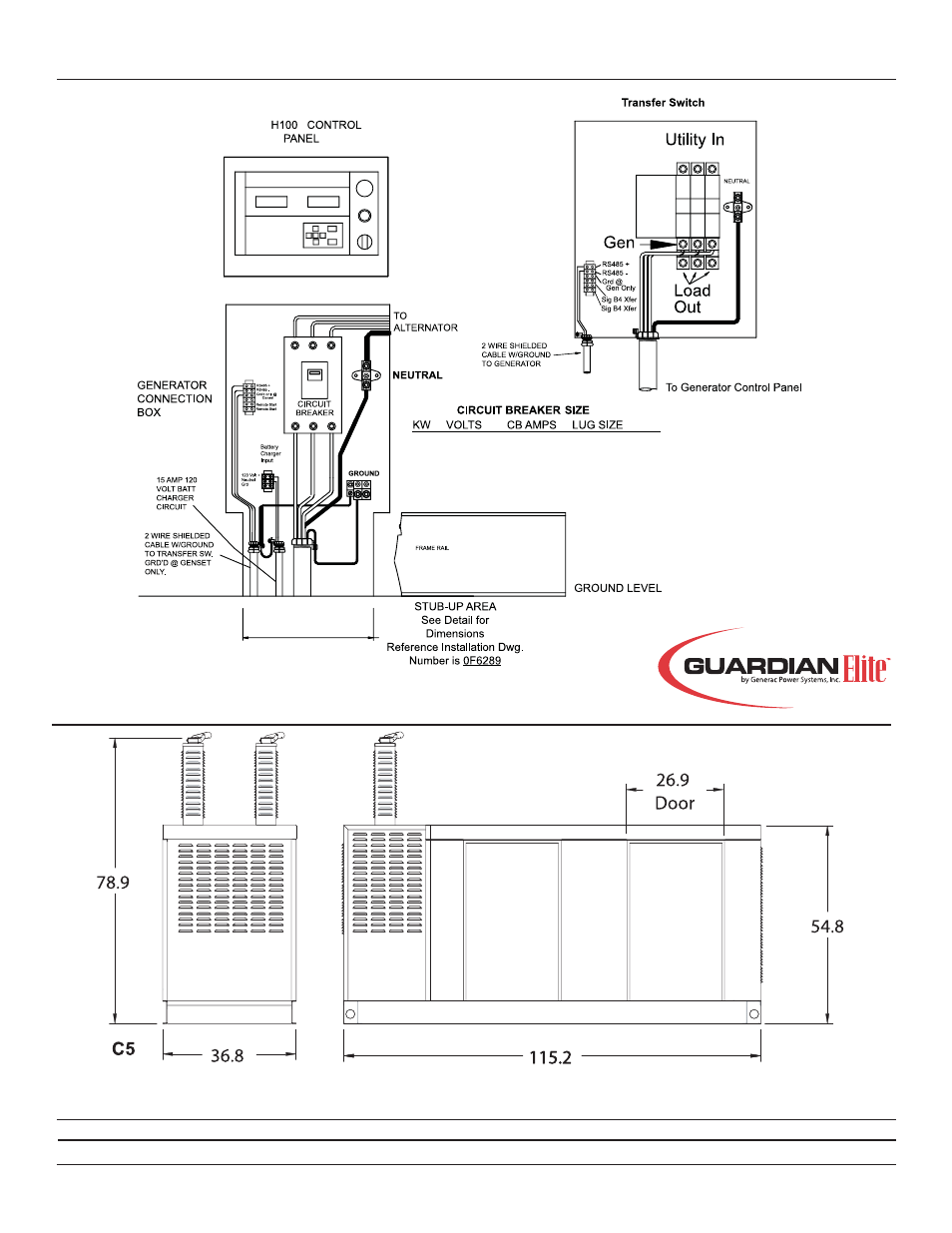

INSTALLATION LAYOUT
NOTE:
Door access
from both sides
UNIT WEIGHT: Steel 2705 lbs., Aluminum 2531 lbs.
© 2007 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice.
Bulletin 0174700SBY / Printed in USA 06.07, 08.07
GENERAC
®
POWER SYSTEMS, INC. • P.O. BOX 297 • WHITEWATER, WI 53190
www.guardiangenerators.com
COMMERCIAL 100 kW
INTERCONNECTIONS
100
240 1 ø
450
3-2/0 to 400 mcm
100
208 3ø
400
2-3/0 to 500 mcm
100
240 3ø
350
2-3/0 to 500 mcm
100
480 3ø
175
#6 to 350 mcm
100
600 3ø
150
#6 to 350 mcm
COMMERCIAL SERIES
