Installation
(for qualified installers only)
9
Travis Industries
4040708
1 0 0 - 0 1 1 6 0
Corner Installations

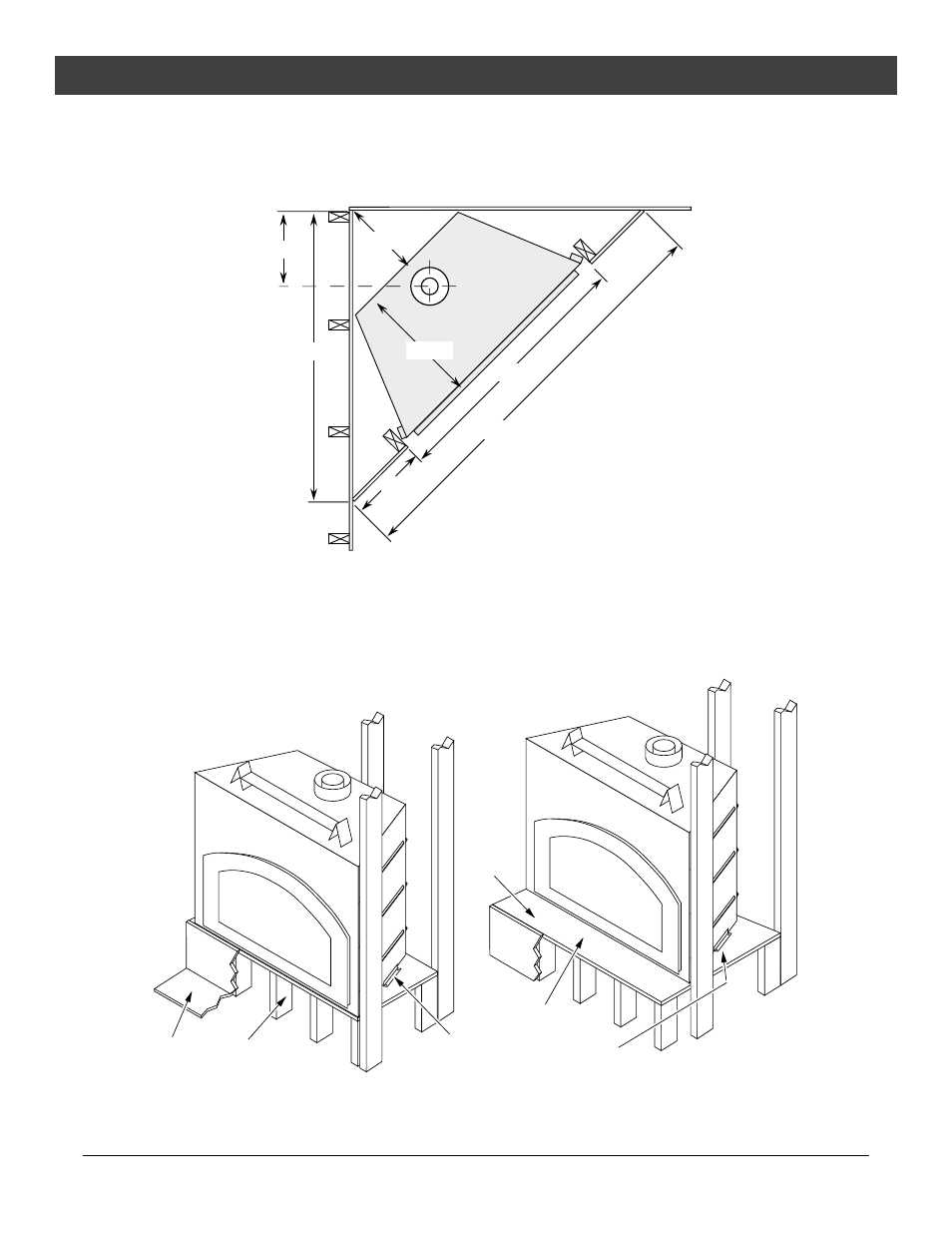

A typical 45° installation uses the minimum framing dimensions shown in the illustration below (NOTE:
all clearances still apply).
11-1/4"
46-1/4"
43"
19-5/8"
Fireplace
(includes
1/2"
standoffs)
12-3/4"
14-1/2"
65-1/2"
Raised Fireplaces
•
The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(250 Lbs.) and vent.
•
The fireplace may not be raised so as to place the ceiling within 24" of the top of the faceplate.
Raised fireplace
Raised fireplace with
raised hearth.
Raised
Platform
Nail the nail down plates to the floor
(or raised platform)
Raised Hearth
Hearth
Raised
Platform
