Before You Begin
! Read this entire manual before you use your new fireplace (especially the section "Safety
Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily
injury, or even death.

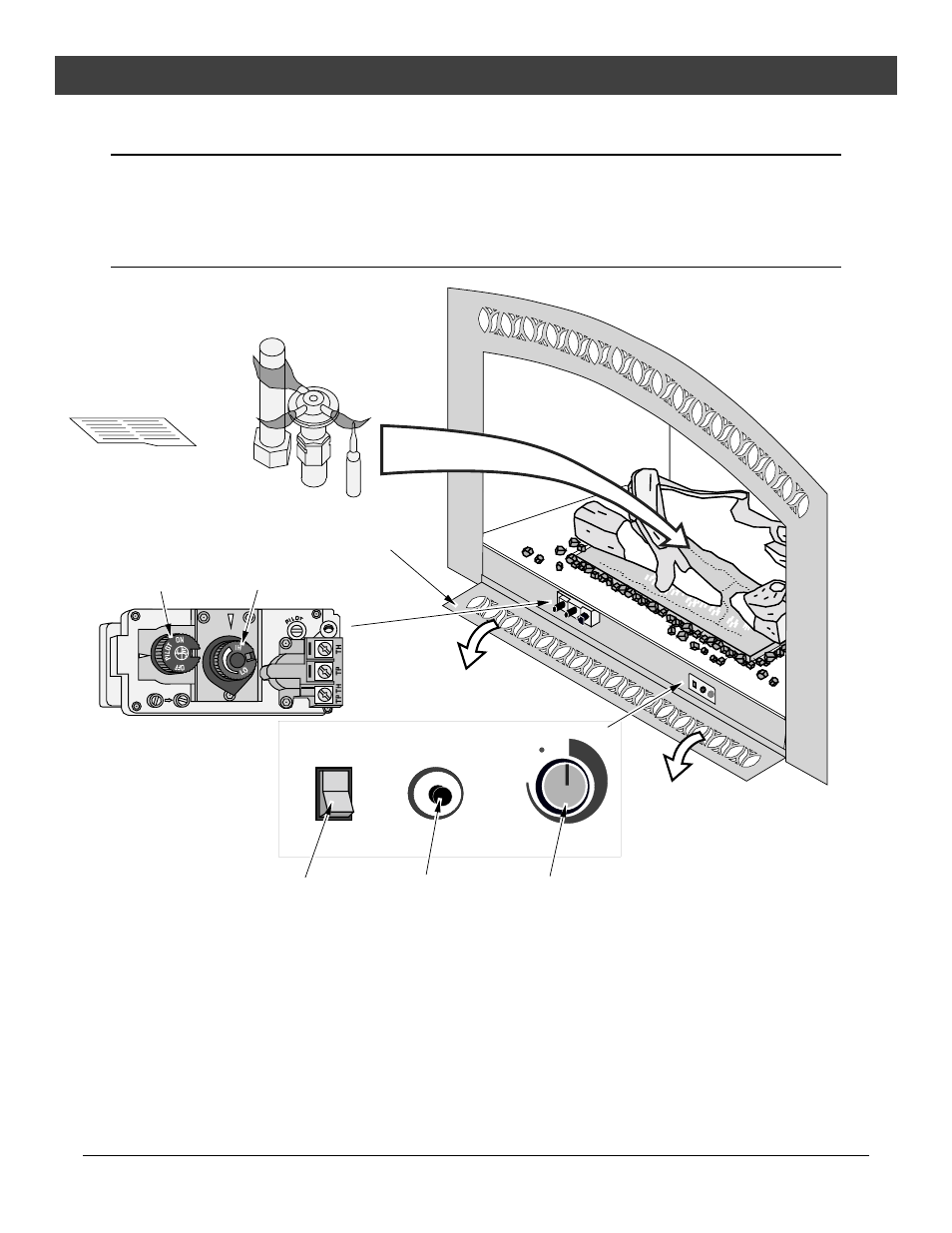

Location of Controls - See explanation below
ON
OFF
MAIN BURNER
On/Off Switch
PILOT
IGNITER
Pilot Igniter
BLOWER
CONTROL
LO
OFF
Blower Knob
HI
Gas Control Valve
Gas Control Knob Flame Adjust Knob
An instruction card for
operating the fireplace
is attached to the
inside of the fireplace
here. Replace it for
easy reference.
The pilot flame is located
below the rear log.
Open the access door
to view the controls.
Blower Knob This knob controls the speed of the internal convection blower that pushes
the heated air into the room.
On/Off Switch This control is used to turn the fireplace on and off.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly next
to the pilot, igniting the pilot flame.
Gas Control Knob This knob is used to control gas to the fireplace and for starting the pilot.
There are three positions, ON, OFF, & PILOT. The pointer to the left of the
knob indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The pointer
above the knob points to the position this knob is in.
