MONITOR UNIT MU-201CE/MU-231CE
OPERATOR'S MANUAL
This manual describes only the key operations of the monitor unit MU-210CE/MU-231CE.
For other details, refer to the installation manual and operator’s manual of the ECDIS/radar.
1. Overview
When the monitor unit MU-201CE or MU-231CE is connected to a radar/ECDIS
with an RS-232C cable, the keys on the panel are locked, so independent
operation of the keys is not possible. Brilliance is controlled from ECDIS/radar.
Key function under lock condition
Simultaneous pressing of Lock and Menu keys: Opens/closes the menu.
Simultaneous pressing of Lock and Input keys: Choose an input signal.
Simultaneous pressing of Lock and keys: Turns the power on or off. To
turn it off, press more than five seconds.
The keys are unlocked with menu operation. See “Keypad lock” on page 6. The
key functions under unlocked condition are as follows.
key: Turns the power on or off. To turn the power off, press it more than
five seconds.
+ and -: Adjusts the screen brilliance when no menu displayed. With menu
displayed, these choose an item from the menu.
Input: Chooses input signal to display (when no menu is displayed).
Menu: Opens or closes menu.
Enter: Confirms menu setting.

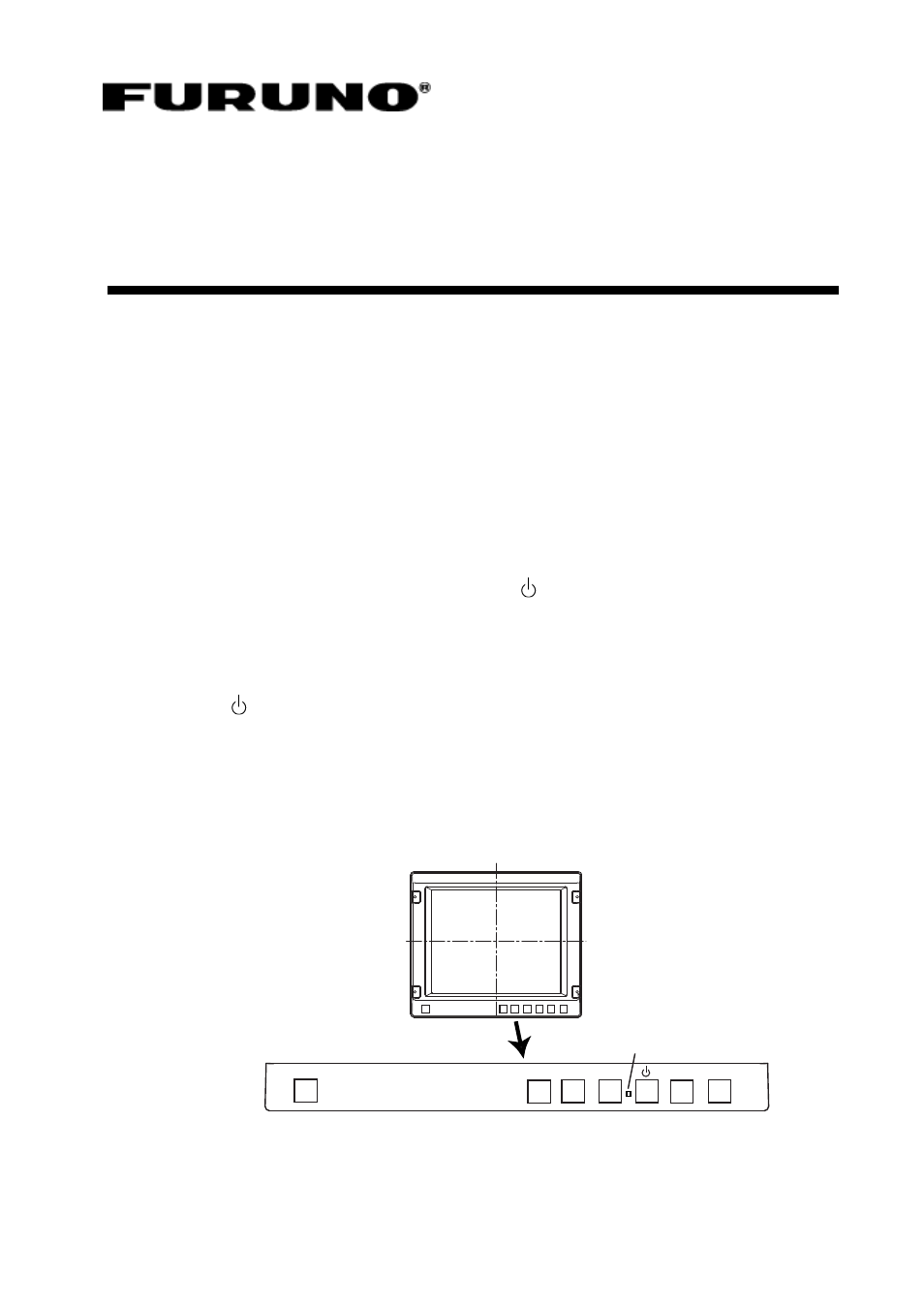

Lock Menu Enter Input - +
LED
Operation Panel
LED lamp: lights when the monitor unit is turned on.
