2-24 Assembling and Installing Connectivity Peripherals
11. Connect the AC power cable (from the junction box) to the AC adapter. To do so, bring the keyboard
tray assembly close to the cradle plate that is already mounted on the wall.
12. Attach the keyboard tray assembly to the mounting plate as shown in Figure 2-16, Figure 2-17, and
Figure 2-18. Use the six screws (size # 8) provided with the wall-mount cradle. (Figure 2-15 on page
2-23 also shows the location of these screws.) Ensure that the cables are not pinched between the
keyboard tray assembly and the cradle plate. (Note that the flanges on the mounting plate must go
inside the keyboard tray assembly housing.)
When tightening the screws, ensure that the keyboard tray assembly is properly aligned with the
mounting plate. To do so, push the front of the keyboard tray assembly toward the wall while you
tighten the screws as shown in Figure 2-16 and Figure 2-17.

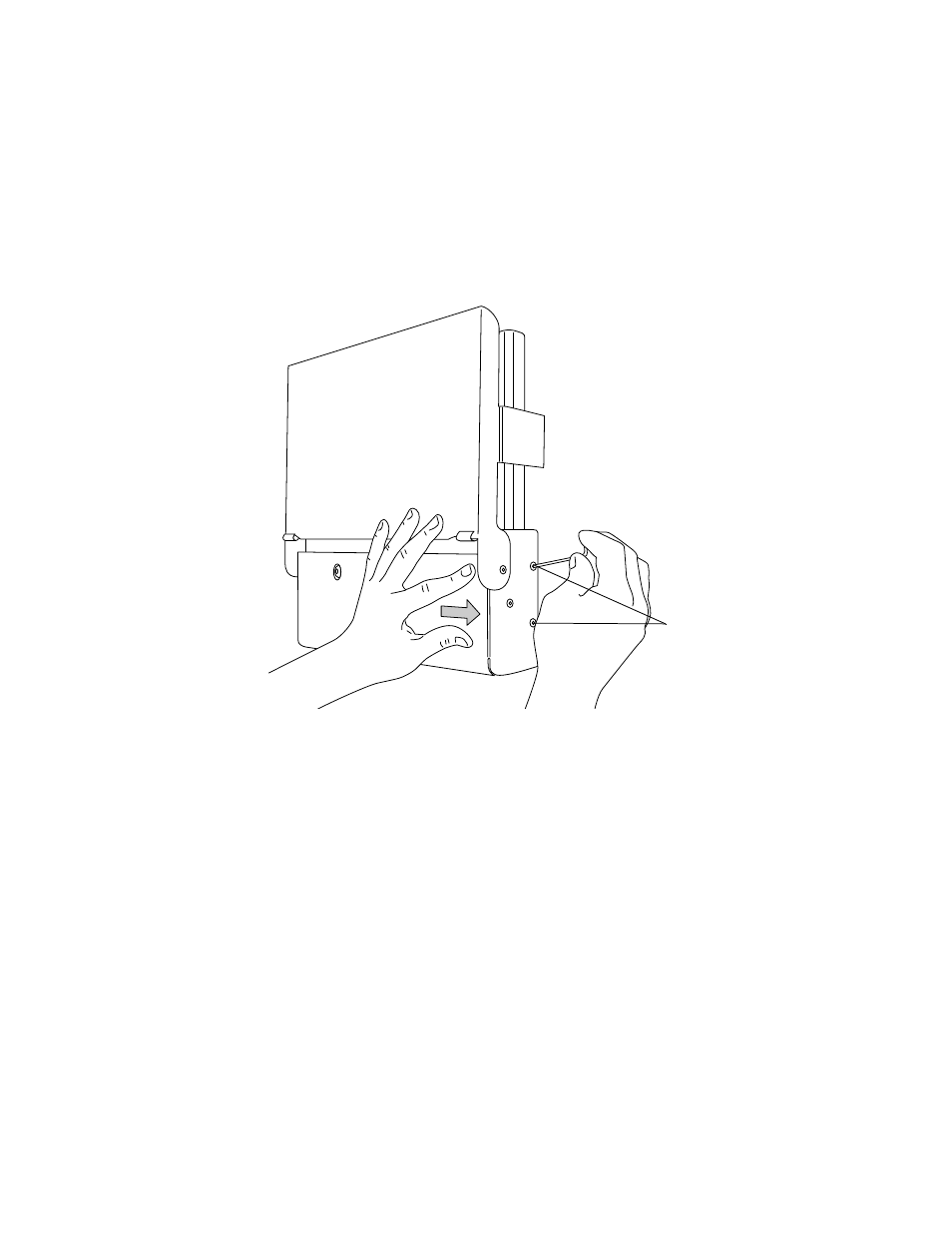

Figure 2-16. Attaching Keyboard Tray Assembly to Mounting Plate (Right Side)
Push
Tighten
