Installing the Wall-Mount Cradle 2-23
7. Route the keyboard cable through the notch on the left side of the keyboard tray assembly as shown
in Figure 2-15.
8. Connect the keyboard cable to keyboard port on the cradle module. Ensure that you have connected
the keyboard cable to the correct port. The keyboard port is the middle connector on the bottom of
the cradle module (closest to the DC input connector).
9. Attach the cradle module to the keyboard tray assembly by installing the two (size #10) screws
provided with the wall-mount base in the side of the keyboard tray assembly as shown in Figure
2-15. To allow alignment of other components, do not tighten these screws at this time. Note that the
tubular lock on the cradle module (if so equipped) fits through the hole in the front of the keyboard
tray assembly. (Ensure that the rubber feet and wire catch, supplied with the cradle module, are not
installed on the cradle module.) Store the excess keyboard cable in the keyboard tray assembly
housing. Pull the keyboard cable tight on the outside of the keyboard tray assembly to ensure that
the keyboard cable will not be pinched by the keyboard tray when it is folded to the closed position.
(Apply some duct tape to secure the keyboard cable to the inside of the keyboard tray assembly
while you work.)

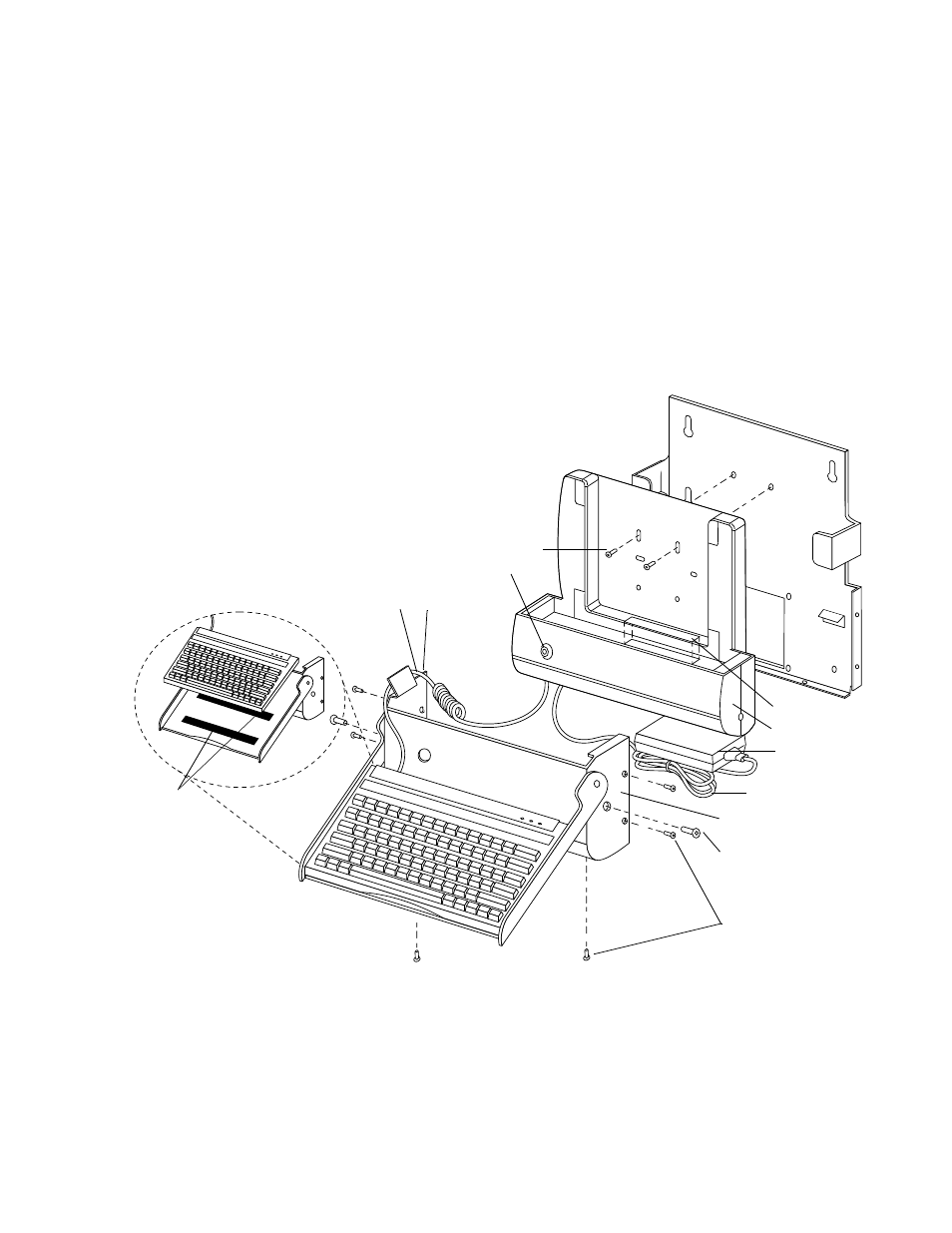

Figure 2-15. Wall-Mount Cradle Exploded View
10. Position the AC adapter inside the keyboard tray assembly below the cradle module and connect the
DC supply cable to the DC input port on the cradle module. (Tuck the looped excess cable
underneath the AC adapter inside the keyboard tray assembly housing. This allows clearance for the
AC adapter relative to the contour of the keyboard tray assembly housing.)
2 Screws (size #6)
2 Screws (size #10)
6 Screws (size #8)
Keyboard Cable Notch
Velcro
(for keyboard
cable routing)
Tubular Lock
Cover Label
AC Adapter
DC Supply Cable
Cradle Module
Strips
Keyboard Tray Assembly
Housing (for installing
FMWKB1-type
keyboards)
To attach keyboard tray
assembly to mounting
plate.
