Page 7
7
EN
INTRODUCTION
CONNECTION
INITIAL SETTING
OPTIONAL SETTING
TROUBLESHOOTING
WATCHING TV
INFORMATION
VIDEO
L
R
S-VIDEO
VIDEO-1 INPUT
COMPONENT INPUT
AUDIO
INPUT
DIGITA L
AUDIO
OUTPUT
ANT. IN
L
Cb
Cr
Y
R
ANT. IN
S-VIDEO
VIDEO
Y
Cr
DIGITAL
AUDIO
OUTPUT
COMPONENT INPUT
VIDEO-1 INPUT
Cb
L
R
L
R
AUDIO
INPUT
5
2
1
6
3
4
VIDEO
L - AUDIO - R
Y
VOLUME X
MENU
L
CHANNEL K
POWER
4
3
5
6
7
2
1

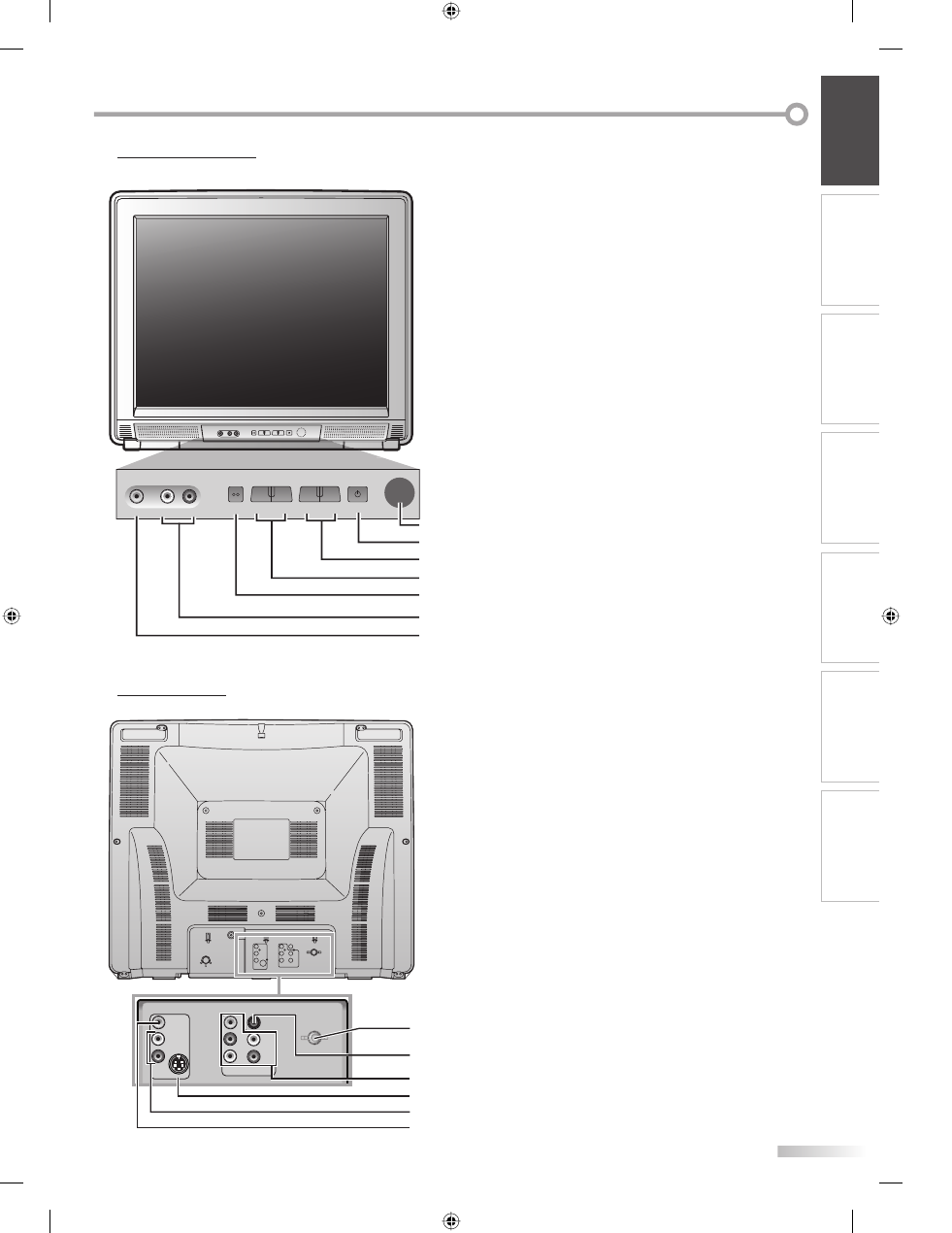

1. Infrared Sensor Window
Receives infrared rays transmitted from the remote
control.
2. POWER
button (p10)
Press to turn the unit on and off.
3. CHANNEL
K / L buttons (p11)
Press to select channels or move up/down through
the main menu items.
4. VOLUME
X / Y buttons (p12)
Press to adjust the volume or move right(X)/left(Y)
through the main menu items.
5. MENU
button (p10)
Press to display the main menu.
6. AUDIO input jacks (p9)
RCA audio cable connection for an external device.
7. VIDEO input jack (p9)
RCA video cable connection for an external device.
Control Panel
5
Rear Panel
5
1. ANT. IN jack (p8)
RF coaxial cable connection for your antenna or
cable/satellite box.
2. COAXIAL (digital audio) output jack (p9)
Digital audio coaxial cable connection for a decoder
or an audio receiver.
Use digital audio input jack of an external device.
3.
COMPONENT and AUDIO input jacks (p9)
Component video cable connection for an external
device.
Use component video and audio output jacks of an
external device.
4. S-VIDEO input jack (p9)
S-video cable connection for an external device.
5. AUDIO input jacks (p9)
RCA audio cable connection for an external device.
6. VIDEO input jack (p9)
RCA video cable connection for an external device.
