2.3.2 ETR-30N and ETR-6/10N
When installing an ETR-30N and an ETR-6/10N, the ETR-6/10N’s host name of SOUNDER
cannot be changed. For this reason, the set the HOST NAME control of the ETR-30N to “1”
and its host name to “SOUNDER1.” Turn the ETR-30N off and on again after setting the
HOST NAME control to register settings.
1. Set tappings of ETR-30N as in paragraph 2.2.1.
2. Set the HOST NAME control of the ETR-30N to “1” and turn on the power.
3. As shown in paragraph 2.2.2, set sounder source for “SOUNDER1” on the NavNet
display unit as below.
a) Rotate the [ENTER] knob to choose SOUNDER SOURCE.
b) Press the EDIT soft key.
c) Enter SOUNDER1 with the numeric keys.
d) Press the RETURN soft key.
Note: The HOST NAME control setting and sounder source name (numeric) must agree.
(See the table below.) If not, the equipment cannot function.
4. Set the ETR-30N as shown in paragraph 2.2.3.
HOST NAME
control setting
on ETR-30N SOUNDER SOURCE set
on NavNet display unit
1 SOUNDER1
Note: The host name and frequency on the ETR-6/10N are fixed to SOUNDER and 50/200
kHz, respectively.
HUB
NavNet
Display Unit 1 NavNet
Display Unit 2 NavNet
Display Unit 3
Change sounder
source to "SOUNDER1."
ETR-30N
HOST NAME: 1
ETR-6/10N
Turn power
off to set.
Set up
transducer.

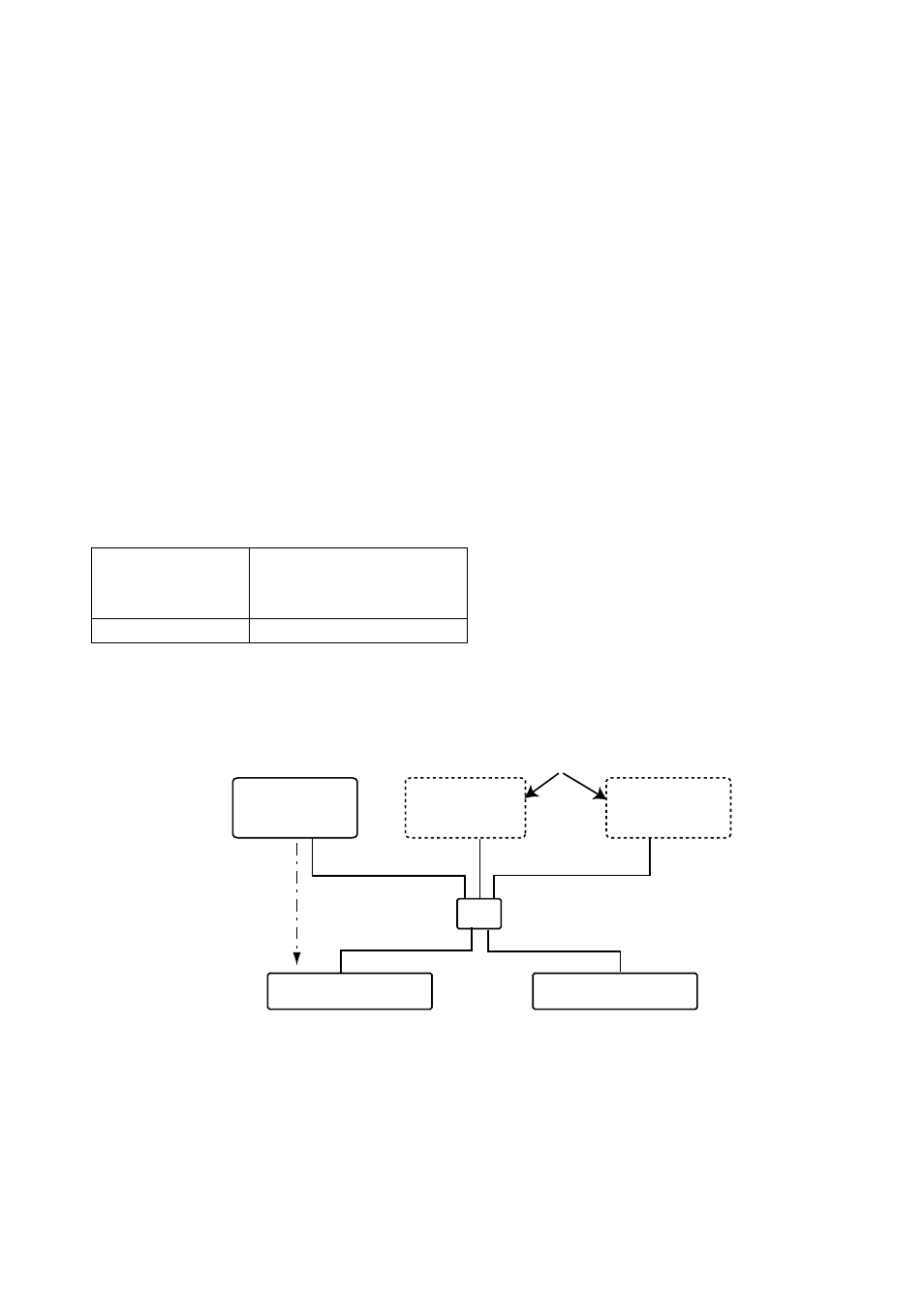

Installation with ETR-30N and ETR-6/10N
If the ETR-6/10N is generating interference, use the interference rejector on the NavNet
display unit to reject it. If that does not work, contact your dealer for advice.
