P/N
DESCRIPTION
A.
UP08712
Muffler Assembly w/Gasket
Includes:
UP04629
Screen-Spark Arrestor
B.
UP08713
Carburetor Assembly
C.
UP05270
Ignition Assembly
Includes:
D.
UP05875
Spark Plug
E.
UP05084
Air Filter Assembly
Includes:
UP04270
Filter
F.
UP02962
Starter Assembly
G.
UP00020
Fuel Tank Assembly
Includes:
UP04708
Fuel Cap
H.
UP02965
Rear Housing
I.
UP06755
Control Handle
J.
UP03172
Cable-Throttle
K.
A07136
Handle
L.
UP03850
Driveshaft Assembly - Upper
M.
UP03851
Driveshaft Assembly - Lower
N.
UP03839
Coupler Kit
Includes:
UP05137
Knob
O.
UP06710
Deflector
P.
DA03001A
Stringhead - Complete (.080 in. [2.0 mm])
Includes:
UP06567
Housing & Eyelet
B06713
Spring-Compression
UP00145
Spool & String (.080 in. [2.0 mm])
DA98866A
Retainer-Spool (R.H. Thread, Black)
Q.
UP04099
Muffler Guard Kit
R.
Engine Assembly

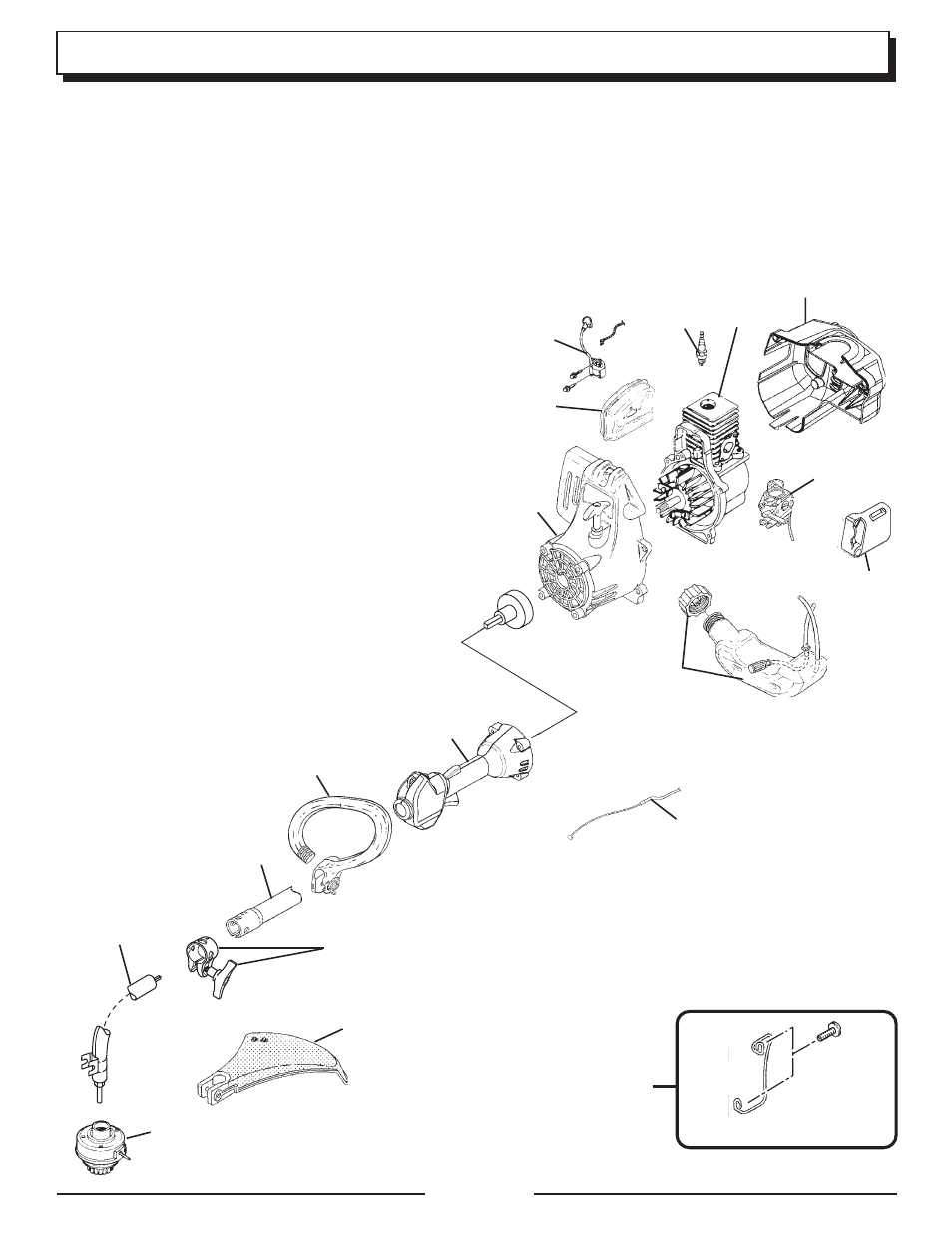

SERVICE PARTS
Q
OPTIONAL MUFFLER GUARD
H
R
I
K
G
R
L
J
P
O
A
C
M
N
B
E
D
