8.
Installing the
Switch Box
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit to
the fan before installing the switch box.
Remove one serrated head screw from the 1.
black bracket below the fan motor assembly.
Loosen, but do not remove the other two
serrated head screws (Figure 12).
Align the key hole slots in the switch box 2.
adaptor with the two serrated head screws in
the black bracket.
Turn the switch box adaptor clockwise until
3.
the two serrated head screws are situated in
the narrow end of the keyholes.
Re-install the one serrated head screw that
4.
was removed in step 1. Tighten all three ser-
rated head screws firmly.
Remove one serrated head screw from the
5.
switch box adaptor. Loosen but do not re-
move the other two serrated head screws
(Figure 13).
Aligning the “L” shape holes on the switch
6.
box with the serrated head screw on the
switch box adaptor. Turn the switch box to
hold in position.
Install the other serrated head screw that
7.
was removed in step 5. Tighten all 3 serrated
head screws securely.
Serrated Head
Screw(3)
Black
Bracket
Switch Box Adaptor
Switch Box
Switch Box Adaptor
Serrated Head
Screw(3)
Molded
Adaptor
Connector

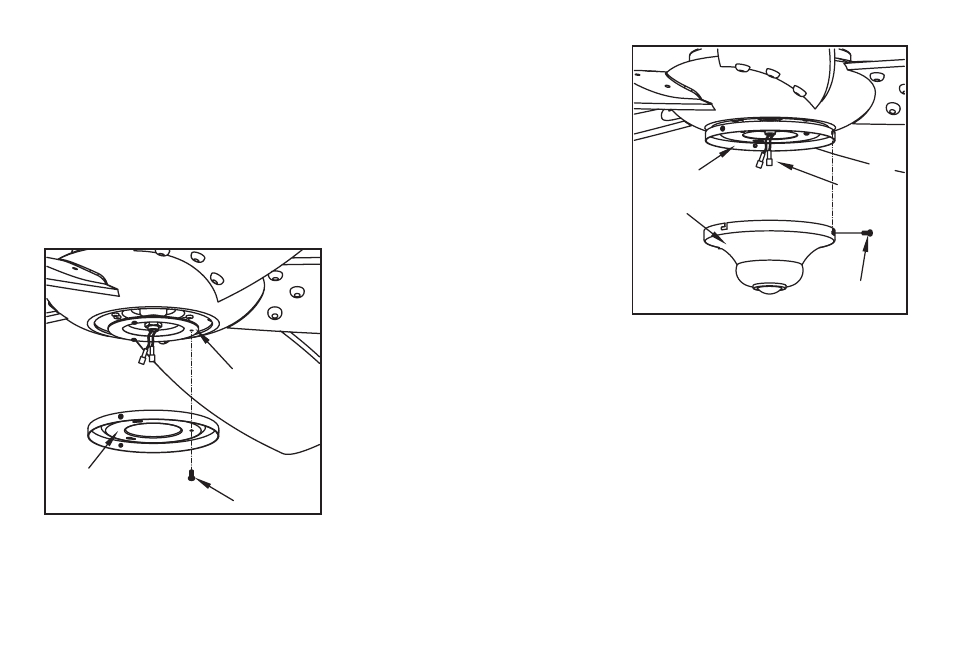

Figure 12
Figure 13
