Hubbell 14" User Manual
Page 3
14" & 19" DIRECT DRIVE HOSE REEL
REPLACEMENT PARTS LIST
ITEM
KIT NO.
DESCRIPTION
QTY.
1
032631
Frame Assembly, 14" Reel
1
1
032632
Frame Assembly, 19" Reel
1
2
021484
Clamp Nut
1
3
025032
‘V’–Ring Seal
1
4
604093
Locking Dog Repair Kit
1
(Includes mounting hardware)
5
028132
Hex Head Capscrew, M10 x 25L
3
6
028138
Lockwasher, M10
3
7
021527
Mount Bracket, 14" Reel
1
7
023417
Mount Bracket, 19" Reel
1
8
024466
Roller Guide Assembly, 14" Reel
1
8
024473
Roller Guide Assembly, 19" Reel
1
9
028144
Lock Nut, M5 x 0.8, 14" Reel
6
9
028144
Lock Nut, M5 x 0.8, 19" Reel
8
10
021488
Spring Assembly “1”, 14" Reel
1
10
021490
Spring Assembly “2”, 14" Reel
1
10
021492
Spring Assembly “3”, 14" Reel
1
10
021515
Spring Assembly “4”, 19" Reel
1
10
021517
Spring Assembly “5”, 19" Reel
1
10
025488
Spring Assembly “7”, 19" Reel
1
10
025490
Spring Assembly “8”, 19" Reel
1
11
021494
Spring Gasket, 14" Reel
1
11
022734
Spring Gasket, 19" Reel
1
12
027485
Shaft, 14" Reel
1
12
027487
Shaft, 19" Reel
1
13
024294
Spool Assembly, 14" Reel
1
13
024297
Spool Assembly, 19" Reel
1
ITEM
KIT NO.
DESCRIPTION
QTY.
14
027444
Flange Bushing, 14" Reel
1
14
027409
Flange Bushing, 19" Reel
1
15
028144
Lock Nut, M5 x 0.8
4
16
107185
Retaining Ring, 14" Reel
1
16
027406
Retaining Ring, 14" Reel
1
17
604123
Swivel Joint, 14" Reel
with 1/4" & 3/8" hose
1
17
024513
Swivel Joint, 14" Reel with 1/2" hose
& all 19" Reels
1
18
024521
Hose Barb-4, 14" Reel
1
18
024497
Hose Barb-6, 14" Reel
1
18
024517
Hose Barb-4, 19" Reel
1
18
024515
Hose Barb-6, 19" Reel
1
18
101539
Hose Barb-8, 19" Reel
1
19
604127
Tubing Clamp-1/4" hose
1
19
604128
Tubing Clamp-3/8" hose
1
19
604129
Tubing Clamp-1/2" hose
1
20
103281
5/16 x 3/4 Soc. Hd. Cap Screw
2
21
101206
Flat Washer, 1/4"
2
22
023304
Lock Nut, 5/16
2
23
024516
Bushing, 14" Reel
1
23
024519
Bushing, 19"-4 Reel Only
1
24
027456
Thrust Washer, 14" Reel
1
25
024514
Street Elbow, 19" Reel
1
26
024516
Bushing, 14" Reel
1
26
024519
Bushing, 19"-6 Reel
1
26
024520
Bushing, 19"-4 Reel
1
OPTIONAL ACCESSORIES
022451
Hose Stop, 14" & 19" -4 &-6 Reels
Option
022452
Hose Stop, 19"-8 Reel
Option
022217
Swivel Base, 14" Reel
Option
022220
Swivel Base, 19" Reel
Option
1
2
3
4
5
6
7
8
9
10
11
12
13
21
23
5
6
14
15
16
17
18
14
15
16
17
18
19
20
22
24
25
4
23
26
21
Always specify SERIAL
NUMBER & MODEL
NUMBER
when ordering parts.

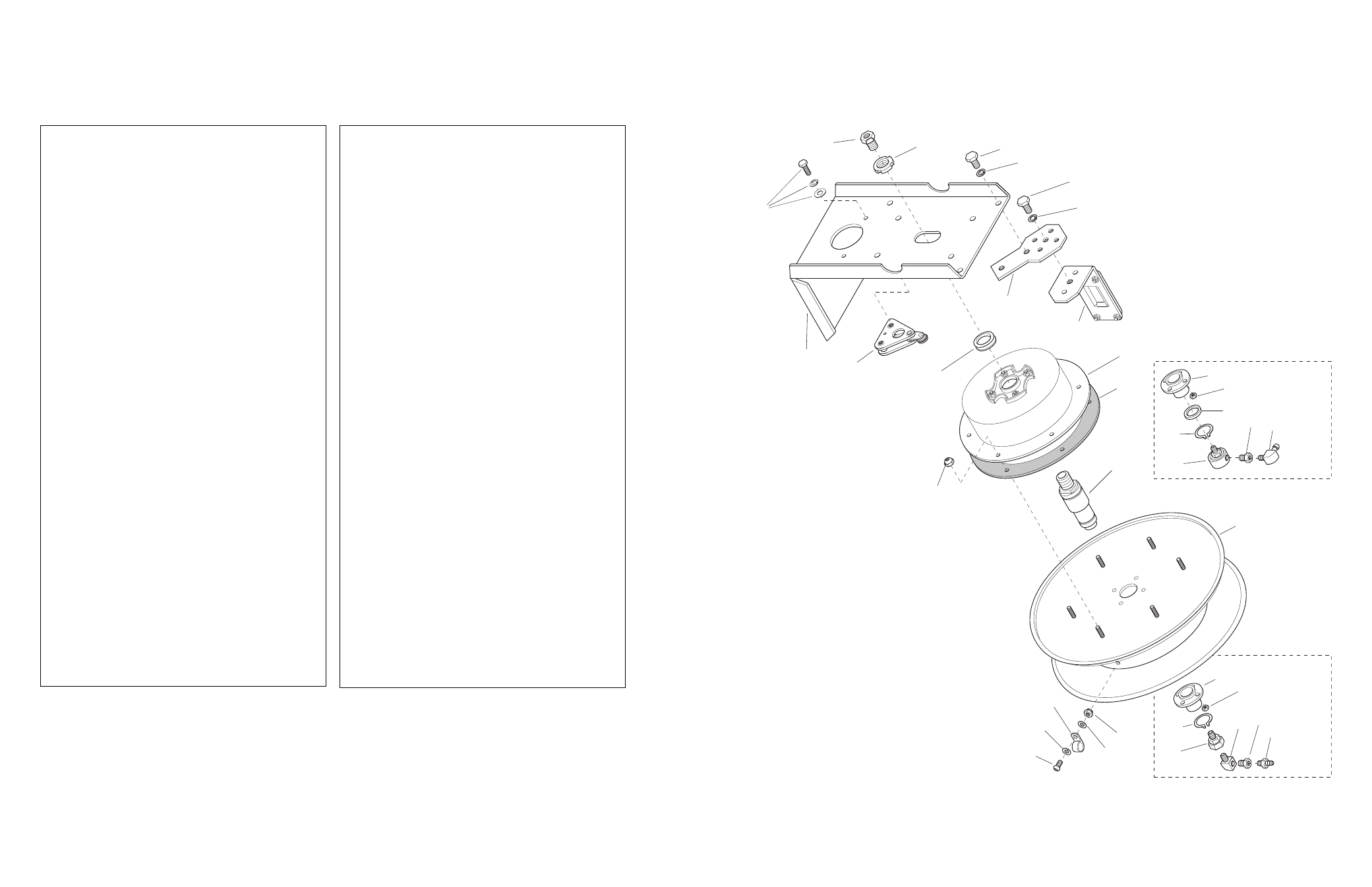

14" & 19" DIRECT
DRIVE HOSE REEL
14" reel with 1/2"
hose & all 19"reels
14"reel with
1/4" & 3/8" hose
