Functional description, Name of parts, Specifications – Hitachi CR 13VA User Manual
Page 9
English
9
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe
operation and maintenance of the power tool.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool

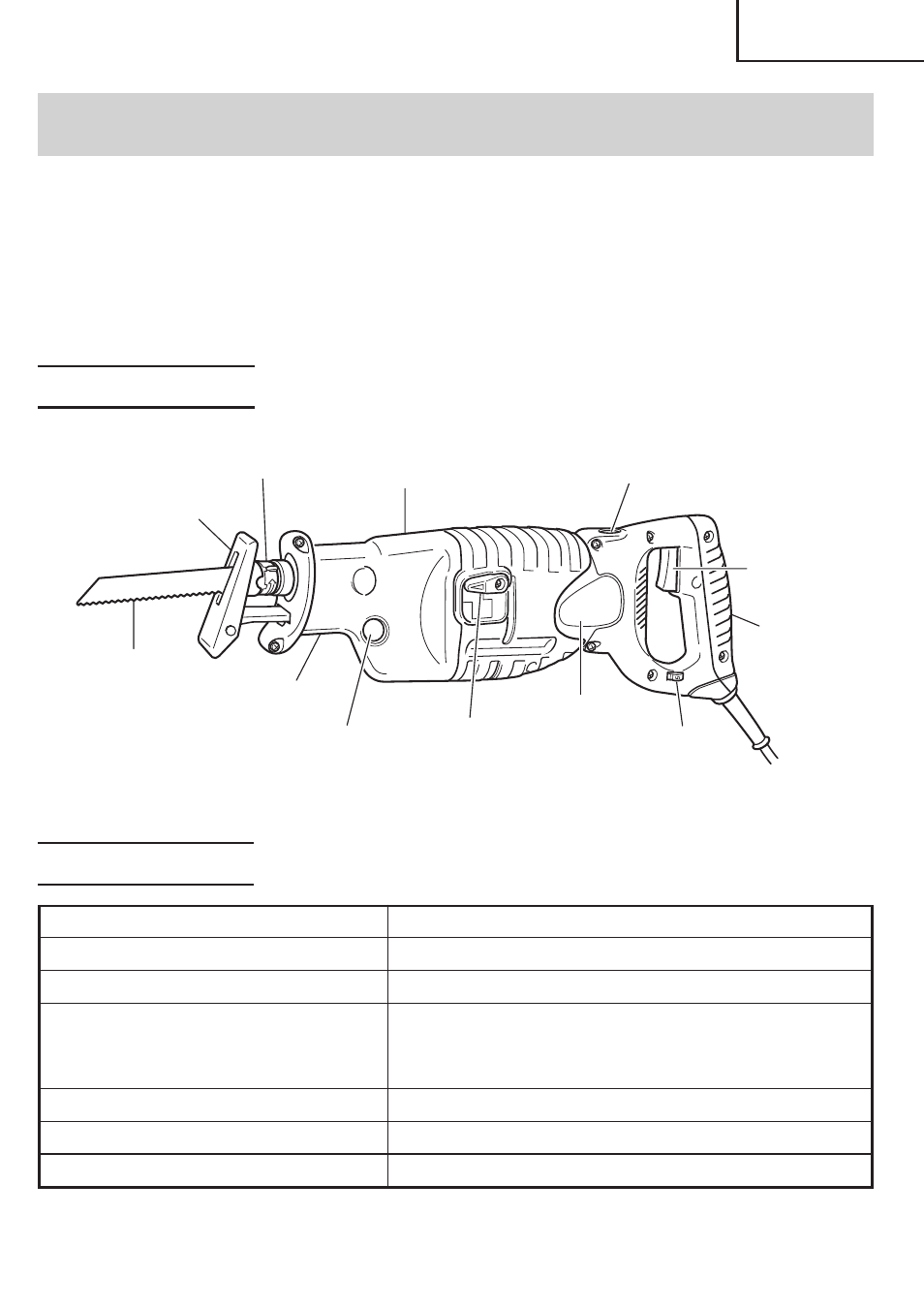

NAME OF PARTS
Fig. 1
SPECIFICATIONS
Motor
Single-Phase, Series Commutator Motor
Power Source
Single-Phase, 120 V AC 60 Hz
Current
11 A
Capacity
Mild Steel Pipe:
O.D. 5" (130 mm)
Vinyl Chloride Pipe: O.D. 5" (130 mm)
Wood:
Depth 5" (130 mm)
No-Load Speed
0 – 2800/min.
Stroke
1-1/4" (32 mm)
Weight (without cord)
8.8 lbs (4 kg)
Front Cover
Housing
Dial
Switch
Trigger
Handle
Brush Cap
Blade
Base
Holder Sleeve
Base Lever
Push Button
Change Lever
