Page 31
101
4
3/4” Screw
102
1
Power Cord
103
1
Power Cord Grommet
104
2
Wheel Spacer
105
1
Incline Motor Shield
106
1
Jack
107
1
iFIT.com Audio Cable
108
1
Grommet
109
1
Pulley Washer
110
1
Idler Pulley
111
1
Pulley Spacer
112
2
Shield Screw
113
2
Static Decal
114
1
Book Plate
115
1
Idler Pulley Bolt
116
1
Right Foam Grip
117
1
Console Base
118*
1
Latch Assembly
119
1
Right Fan Cover
120
1
Left Fan Cover
121
2
Motor Bushing
122
1
Idler Arm Nylon Washer
123
1
Hand Pulse Wire
124
1
Incline Bracket
125
1
Incline Motor Bolt (Bottom)
126
2
Hood Mounting Screw
127
1
Motor Isolator Plate
#
1
12” Green Wire, 2 Ring
#
1
8” Green Wire, F/Ring
#
1
10” White Wire, 2 F
#
1
4” Blue Wire, 2 F
#
1
User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated
Key No. Qty.
Description
Key No. Qty.
Description
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information:
• The MODEL NUMBER of the product (HRTL16940)
• The NAME of the product (HealthRider
®
T800i treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on pages 30 and 31)

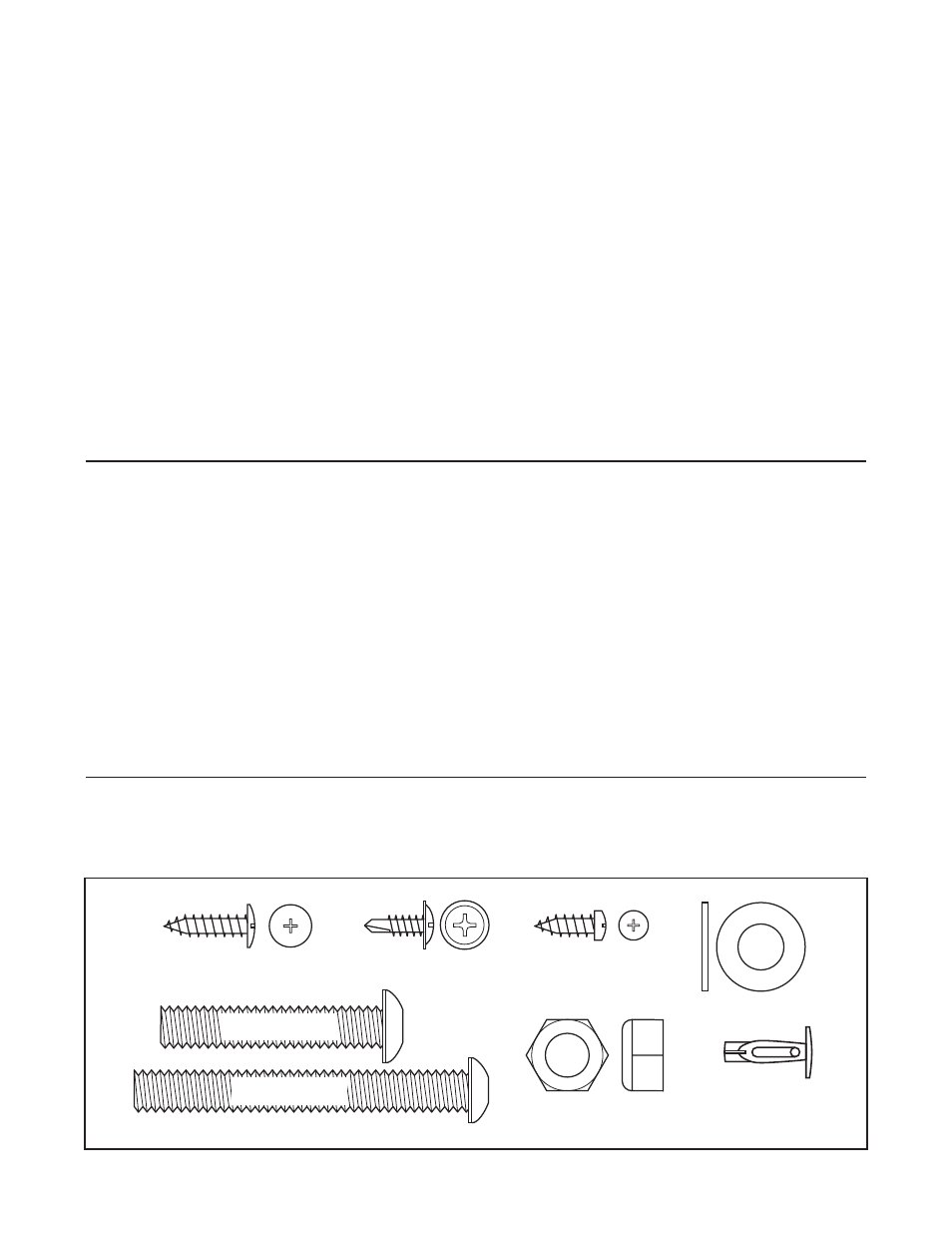

PART IDENTIFICATION CHART
Use the chart below to identify small parts during assembly.
Star Washer (29)–2
1/4” Washer
(38)–4
3/8” Washer
(66)–8
1/4” Washer (57)–4
5/16” Washer (57)–2
Star Washer (9)–6
(May be an internal Star Washer)
U-Base Nut (51)–2
Extension Screw
(50)–8
3/4” Screw (101)–4
Plastic Fastener
(75)–4
1/2” Screw
(10)–2
Base Washer (129)–4
2” Bolt (26)–4
3” Bolt (23)–2
