Installation Manual 5000 Page 1 of 8
April 2010
INSTALLATION MANUAL
Adjustable Pitch Fan Assembly
22’ thru 30’ Diameter
Tuf-Lite
®
and
Tuf-Lite II
®
Fans
5000 Series Hub

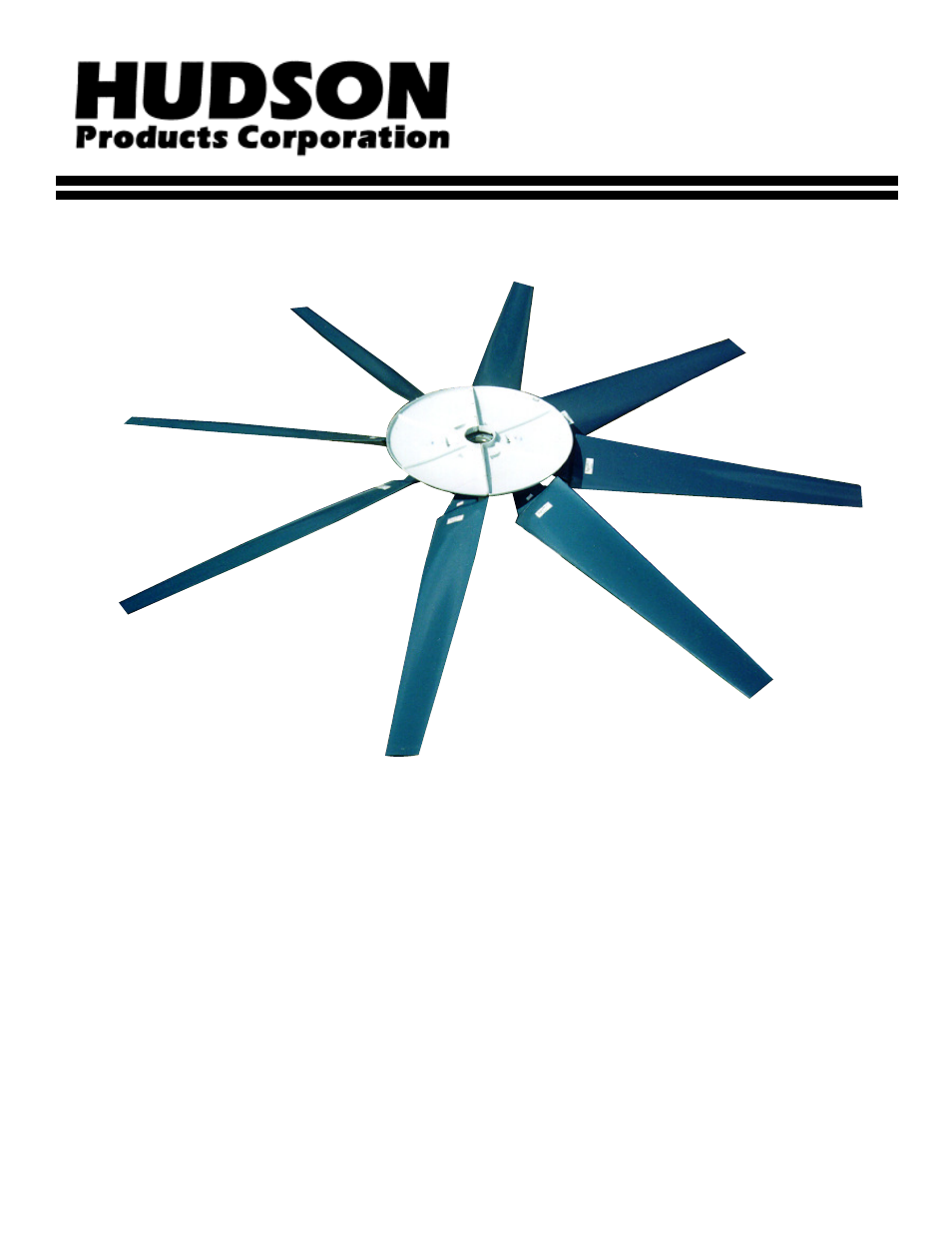

Hudson Tuf-Lite
®
and Tuf-Lite II
®
fan blades
Hudson Tuf-Lite
®
(black) fan blades are made from fiberglass reinforced epoxy resin having a very high
strength-to-weight ratio and corrosion resistance (not shown).
Hudson Tuf-Lite II
®
(white, prev. blue***) fan blades are made from fiberglass reinforced vinyl-ester resin
having a very high strength-to-weight ratio and superior ultra-violet and corrosion resistance. An elastomeric
blade/holder joint cover (not shown) prevents moisture from entering the blade (shown above).
The individually balanced blades can be replaced independently – matched sets are not required.
