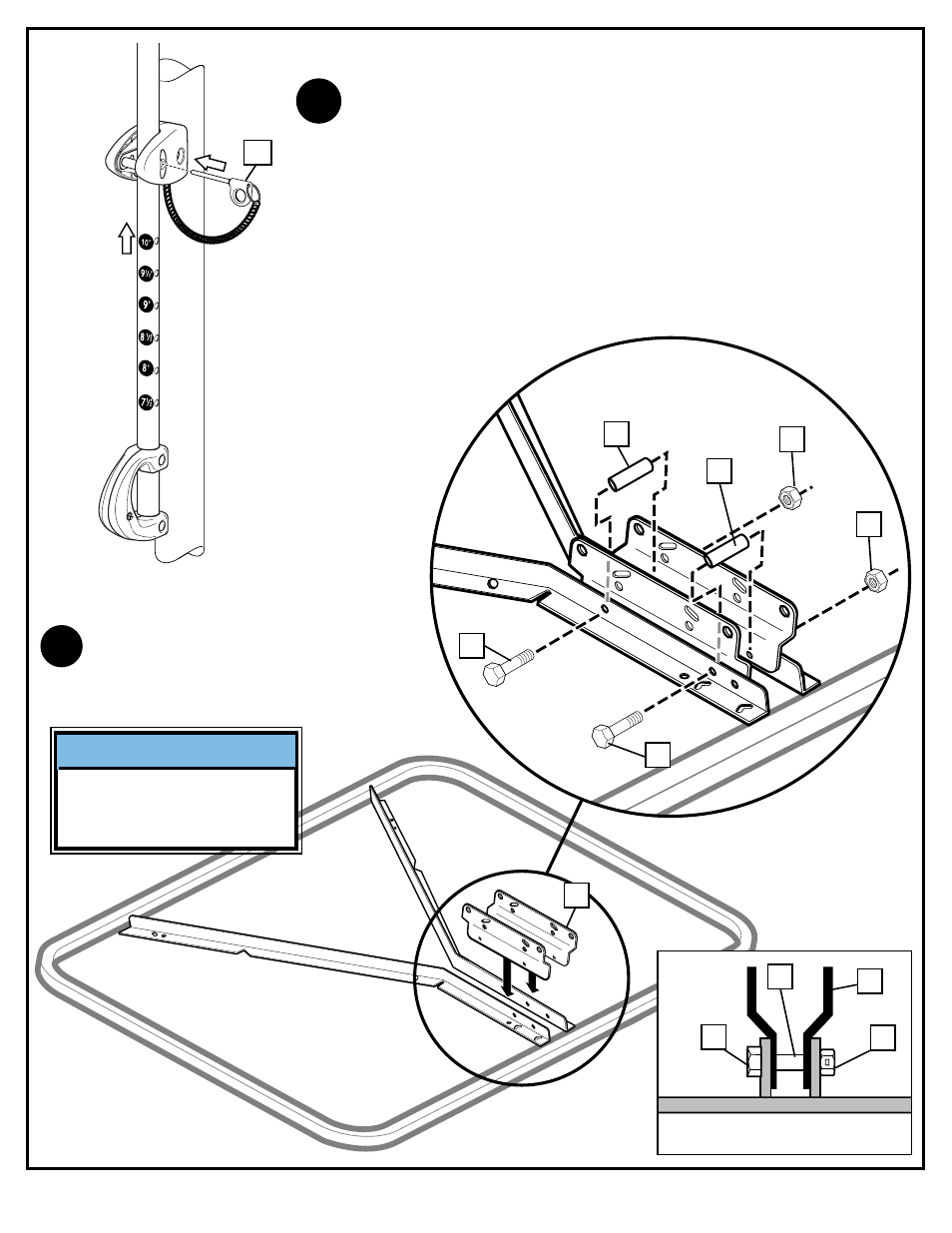

Insert handle assembly through pole mount assembly as
shown. Lock pole assembly in place at the 10’ (3.05 m)
mark with pin (27).
27
5 .
6.
30
30
29
29
31
45
Assemble backboard brackets (45)
using spacers (30), bolts (29), and
nuts (31) as shown.
31
45
30
31 29
Face of Backboard
IMPORTANT!:
KEEP HARDWARE LOOSE
UNTIL AFTER STEP 8 IS
COMPLETED.
