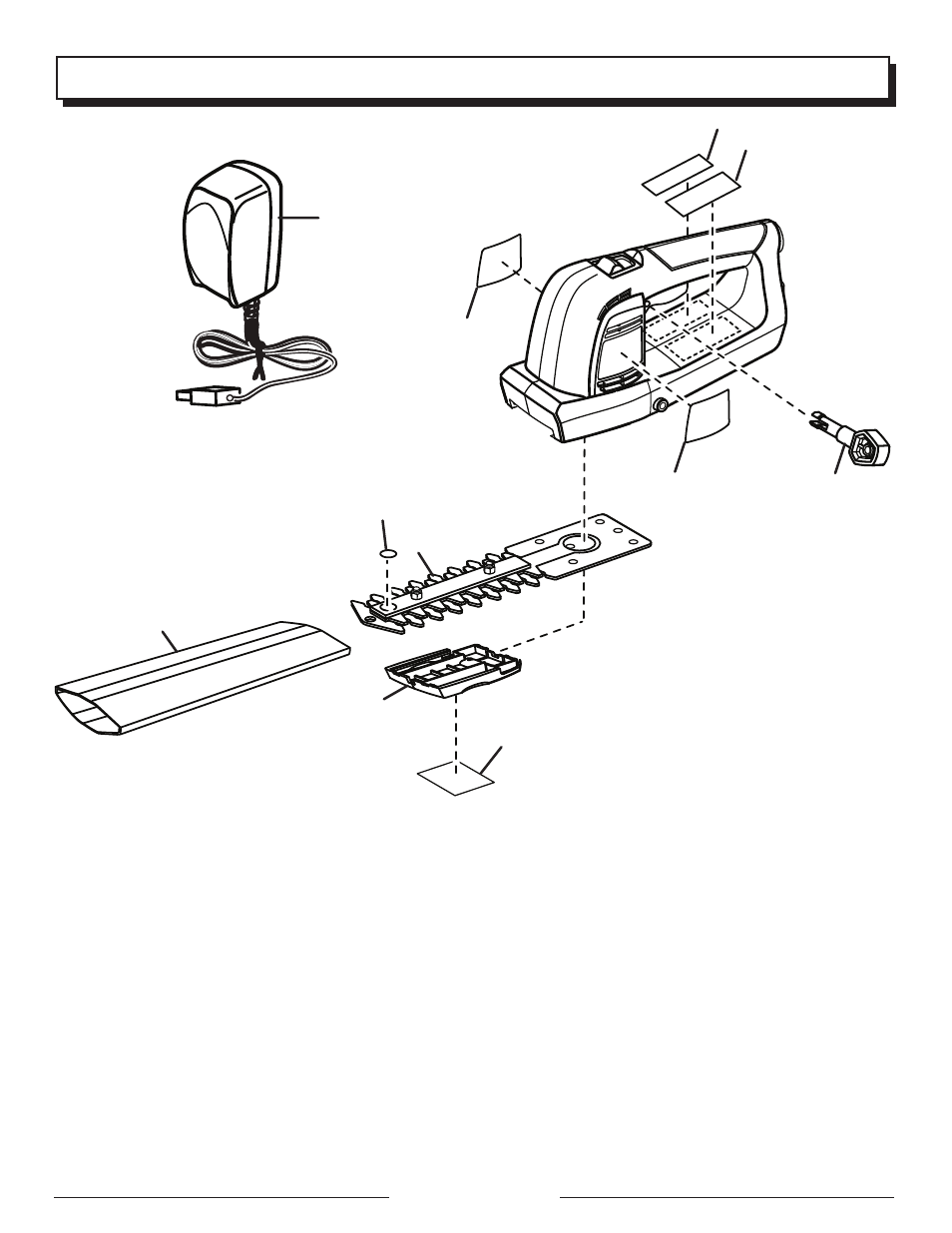

ILLUSTRATED PARTS LIST
1 31106251G Shrubber Blade Assembly ......................................................................................... 1
2 34106251G Bottom Cover ............................................................................................................ 1
3 34109251G Scabbard ................................................................................................................... 1
4 36901251G Charger ...................................................................................................................... 1
5 34112251G Lock-out Pin .............................................................................................................. 1
6 099941003901 Data Label .................................................................................................................. 1
7 099941003902 No Hands Warning Label ........................................................................................... 1
8 099941003903 Icon Strip ................................................................................................................... 1
9 099941003904 No Hands Label ......................................................................................................... 1
10 099941002905 Logo Label ................................................................................................................. 1
11 099941003905 Padlock/Lock Pin Warning Label ............................................................................... 1
987000828
Operator’s Manual (Not Shown)
Key Part
No. Number Description Qty.
4
1
2
3
5 10
6
7
8
9
11
