Hayter Mowers E131B User Manual

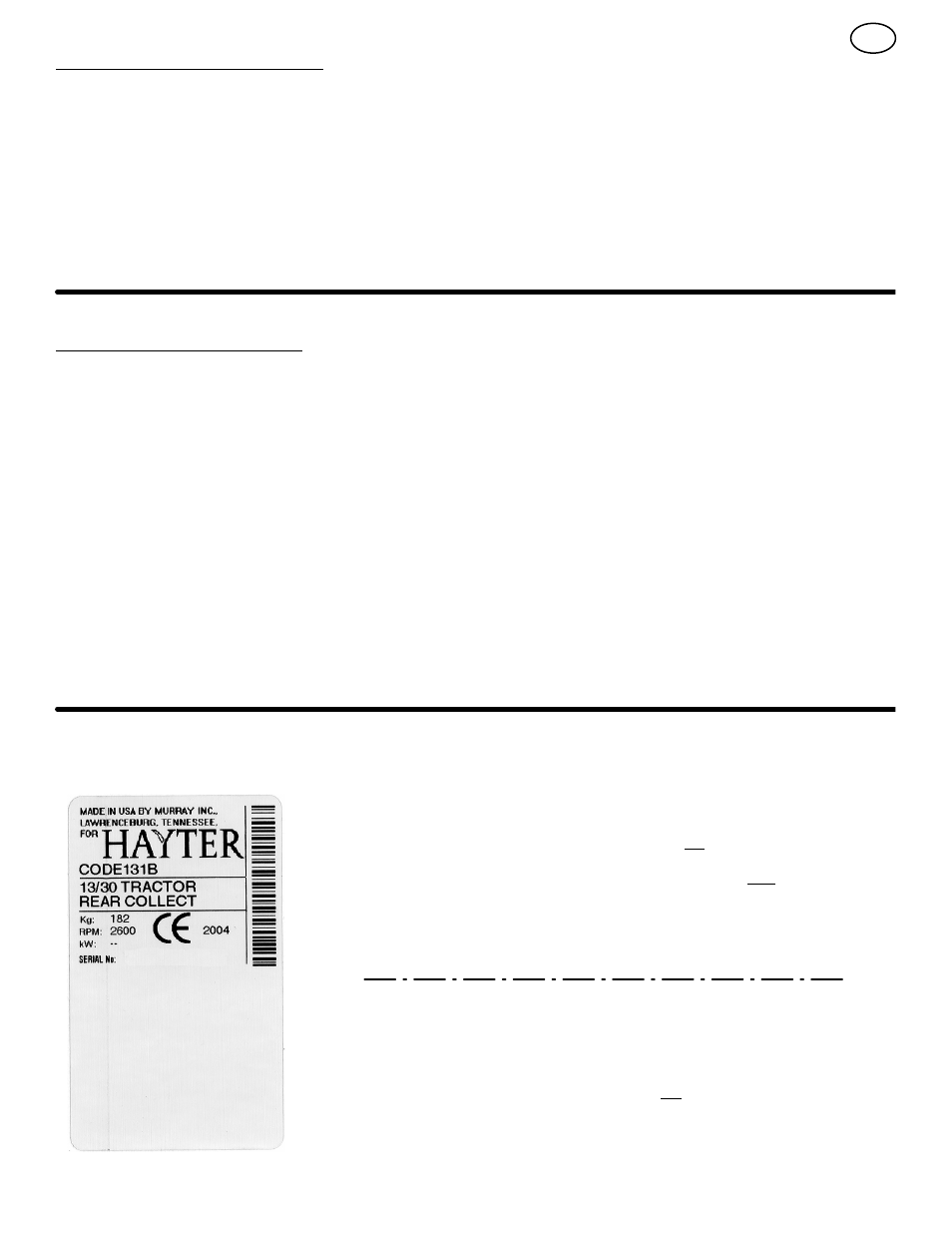

Page 11
GB
11
F-040730L
CONTENTS
LIMITED WARRANTY
10
INTERNATIONAL PICTORIALS
11
OWNER’S INFORMATION
12
SAFE OPERATION PRACTICES
12
ASSEMBLY
13
OPERATION
14
MAINTENANCE
15
TROUBLE SHOOTING CHART
19
INTERNATIONAL PICTORIALS
IMPORTANT: The following pictorials are lo-
cated on your unit or on literature supplied
with the product. Before you operate the
unit, learn and understand the purpose for
each pictorial.
NOTE: Illustrations and pictorials begin
on page 2.
Safety Warning Pictorials (Figure 35)
1
WARNING
2
IMPORTANT: Read Owner’s Manual
Before Operating This Machine.
3
WARNING: Thrown Objects. Keep
Bystanders Away. Read User Instructions
Before Operating This Machine.
4
WARNING: Do Not Use This Machine On
Slopes Greater Than 10 Degrees.
5
DANGER: Keep People, Especially
Children, Away From Unit.
6
DANGER: No Step.
7
DANGER: Keep Feet And Hands Away
From Rotating Blade.
8
Declared airborne sound power level of 100
dB(A) is in accordance with Directive
2000/14/EC.
9
DANGER: Disconnect Spark Plug Wire
Before Servicing Unit.
10
WARNING: Hot Surface.
11
WARNING: Use Caution When Connecting
Or Disconnecting Accessories.
12
WARNING: Crushed Fingers.
13
IMPORTANT: Follow Instructions In
Owner’s Manual To Level The Deck.
14
WARNING: Stay Clear Of Mower Blade As
Long As Engine Is Running.
Control And Operating Pictorials
(Figure 36)
1
Engine Start
2
Lights
3
Engine Run
4
Engine Stop
5
Engine Run
6
Brake
7
Parking Brake
8
Clutch
9
Slow
10
Fast
11
Choke
12
Oil
13
Blade Rotation Control
14
Raise
15
Fuel
Declared vibration emission values in accordance with Directive 98/37/EC.
Vibration Emission according to BS EN 1032: Seat 1,3 m/s
2
,
Right Running Board 0,73 m/s
2
, Left Running Board 1,04 m/s
2
Vibration Emission according to BS EN 1033: Steering Wheel 1,82 m/s
2
Values determined with operator in operating position when the machine was
operated stationary on a concrete surface at 2600 min-1.
Declared airborne noise emissions in accordance with Directive 2000/14/EC,
Annex VIII.
Sound Pressure Level at operator position
85 dB.
Values determined at ear according to the specifications of EN ISO 11201.
