Technical Specifications DIGI-HDMI-F HD over Twisted Pair Balun
The Intelix DIGI-HDMI-F transmits a high-definition HDMI (high definition multimedia interface)
signal up to 150 feet over two inexpensive twisted pair cables. The DIGI-HDMI-F supports 480i,
480p, 720p and 1080i high-definition video up to 150 feet when using standard Cat 5e cabling, and
1080p high-definition video up to 30 feet when using standard Cat 6 cabling.* The DIGI-HDMI-F
balun supports standard HDTV resolutions and is HDCP compliant. Each DIGI-HDMI-F includes
the send unit, receive unit, and power supply. The system is powered on the destination end.
The Intelix DigiCat Series of baluns is the ideal solution for sending digital, high-performance signals over structured
cabling. When signal quality matters, choose Intelix.
Technical Specifications
Maximum Distance* 480i with Cat 5e 150 feet
480p with Cat 5e 150 feet
720p with Cat 5e 150 feet
1080i with Cat 5e 150 feet
1080p with Cat 6 30 feet*
Supported Video Resolutions 480i, 480p, 720p, 1080i, 1080p
Input DDC Signal 5.0 volts p-p (TTL)
Input Video Signal 1.2 volts p-p
Video Amplifier Bandwidth 1.65 Gbps
Send Unit Connectors One (1) type A HDMI connector
to two (2) RJ45s
Receive Unit Connectors One (1) type A HDMI connector
to two (2) RJ45s
Power Connector Powered on the receive end;
side mounted connector
AV
over
C
at
5
.com
Cabling Two structured cabling runs required;
Cat 5e for 480i, 480p, 720p, 1080i and
Cat 6 for 1080p
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Dimensions 3.25” x 1.75” x 0.88”
Enclosure Metal
Shipping Weight 1.0 lbs
Ordering Information DIGI-HDMI-F: includes send balun,
receive balun, and power supply
Compliancy CE, RoHS
Power Supply External 5 VDC
Warranty Two years
*Distances may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable
patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5e/6. 1080p signal distance is dependant on
cable type and device output strength. When routing 1080p video, Intelix does not recommend using the DIGI-HDMI-F in conjunction
with distribution amplifiers or splitters, as the DDC signal may be weakened.

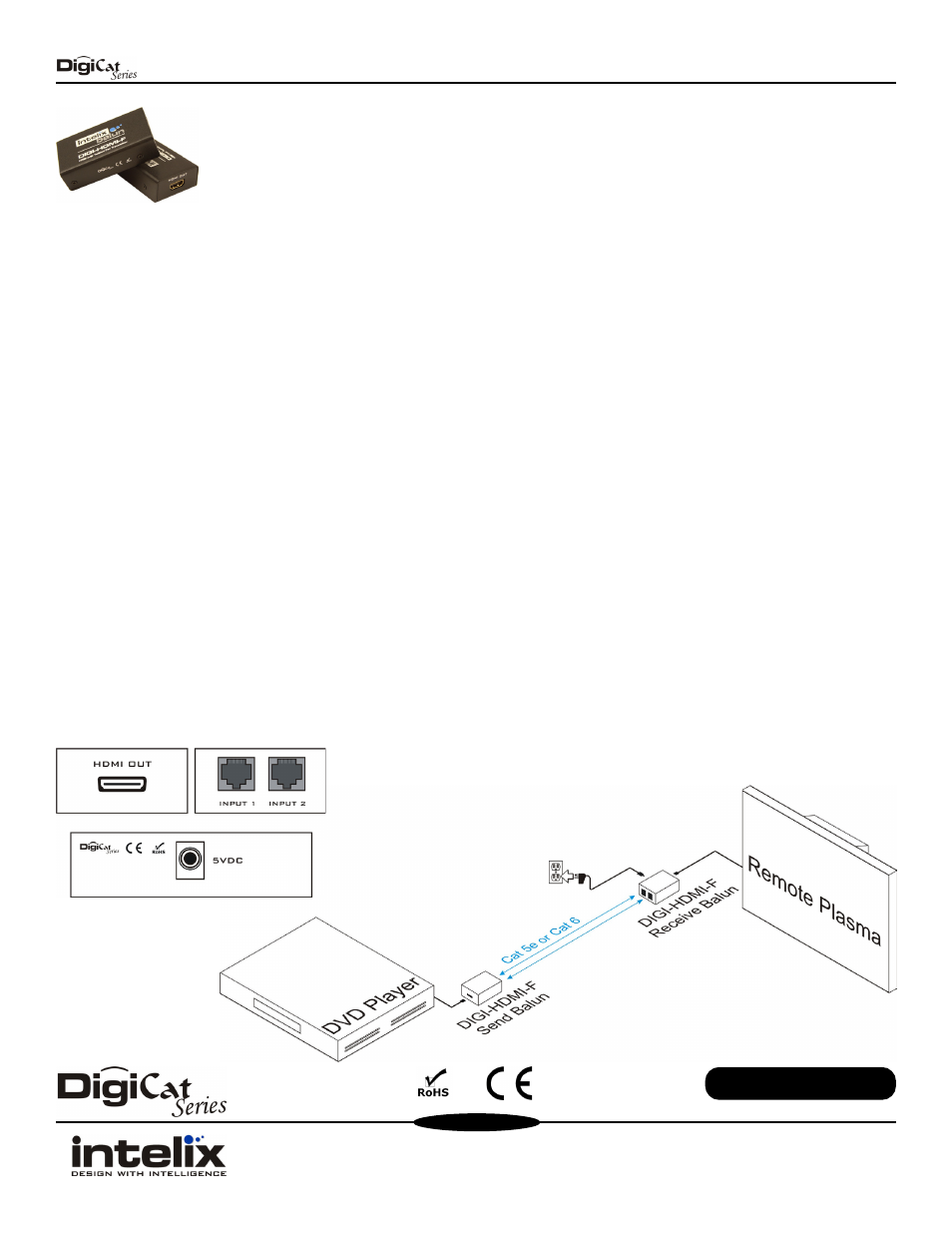

System Drawing: A DVD player is
connected to a remote plasma over 150
feet of twisted pair cable.
Front and Rear End Drawing
Receive Balun Side Drawing
